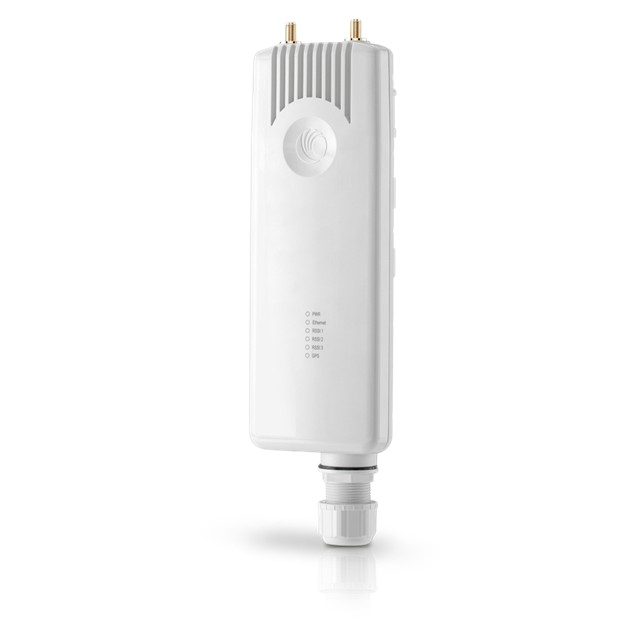

Cambium Networks ePMP Force 300 Connectorized Subscriber Module
Rp5.905.200
Deskripsi
INTERFACE
– MAC (Media Access Control) Layer
Cambium Proprietary
– Physical Layer
2×2 MIMO/OFDM
– Ethernet Interfaced
10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
– Protocols Used
IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
– Network Management
IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro™
– VLAN
802.1Q with 802.1p priority
PERFORMANCE
– ARQ = Yes
– Nominal Receive Sensitivity (w/FEC) @20 MHz Channel
MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain)
– Nominal Receive Sensitivity (w/FEC) @40 MHz Channel
MCS0 = -87 dBm to MCS9 (256QAM-5/6) = -64 dBm (per chain)
– Nominal Receive Sensitivity (w/FEC) @80 MHz Channel
MCS0 = -84 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain)
– Modulation Levels (Adaptive)
MCS0(BPSK)to MCS9 (256QAM5/6)
– Transmit Power Range
0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval)
PHYSICAL
– Surge Suppression
1 Joule Integrated; Optional 30V Surge Suppressor (C000000L065A)
– Environmental
IP67
– Temperature
-22°F to +140°F (-30°C to +60°C)
– Weight
0.46 kg (1.0 lbs.)
– Wind Survival
180 km/hour (112 mi/hour)
Datasheet Cambium_Networks-Force-300-CSM-FSR
