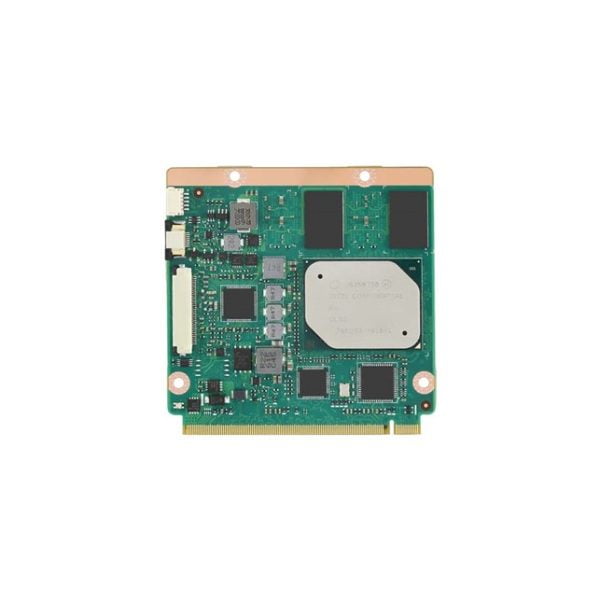

Advantech CIRCUIT BOARD, Intel® Atom™/Pentium®/Celeron® Series SOM-3569 QSeven CPU Module (SOM-3569CN0CB-S1A1)

Intel® Pentium®/Celeron® N4200 Series and Atom™ SoC Qseven® 2.1 Specification Onboard LPDDR4 up to 8GB, onboard eMMC Support HEVC/H.265, H.264 MPEG2 HW Decode

Advantech CIRCUIT BOARD, SOM-7567CS0CB-S9A1 w/Phoenix Platinum -40~85C (SOM-7567CS0XB-S9A1)

Category Attribute Value Display LCD (TTL/LVDS/eDP) LVDS 1-CH 18-bit Display Multiple Display Dual Form Factor Form Factor COM Express Mini

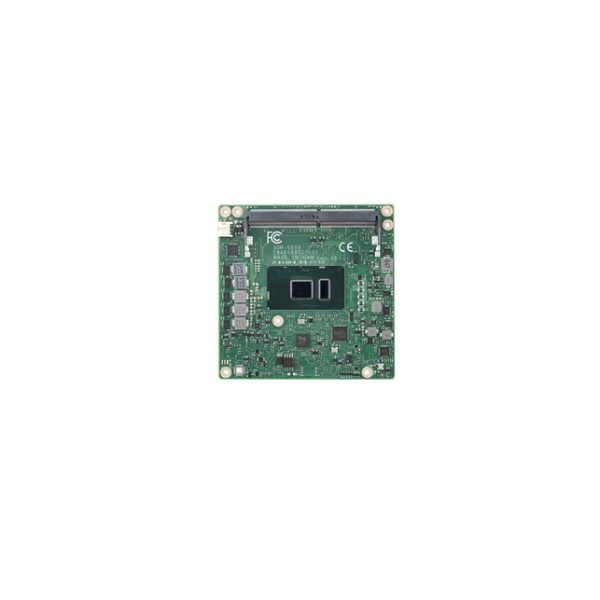

Advantech COM Express Compact Module Type 6, i3-7100U 2.4GHz 2C 15W, non-ECC (SOM-6898C3-U4A1E)

Category Attribute Value Display DDI (HDMI/DVI/DisplayPort) 1 Ports, optional 2 while remove VGA, configurable to HDMI1.4/DVI/Displayport1.2 Display Dual Display Yes

Advantech COM Express Compact Module Type 6, i5-7300U, 2.6GHz, 2 Cores, 15W, non-ECC (SOM-6898C5-U6A1E)

Category Attribute Value Display DDI (HDMI/DVI/DisplayPort) 1 Ports, optional 2 while remove VGA, configurable to HDMI1.4/DVI/Displayport1.2 Display Dual Display Yes

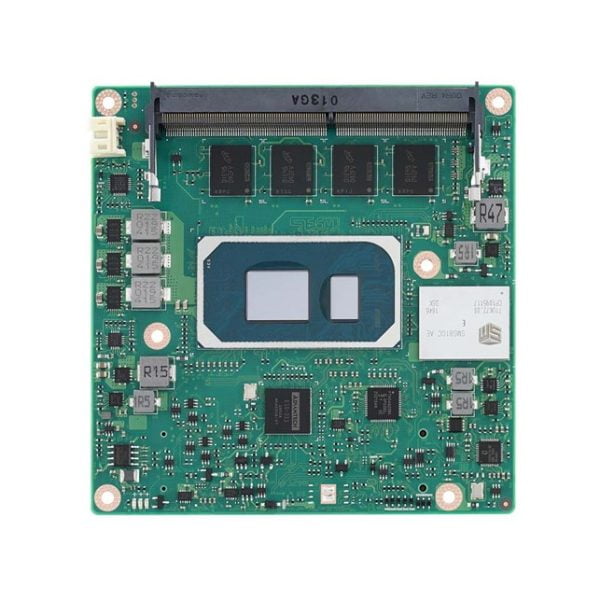

Advantech COM Express® SOM-6883 Compact Type 6, i7-1185G7E 1.8G DDR4 16GB NVMe 32GB (SOM-6883C7A-S8A1)

SPECIFICATION Category Attribute Value Display DDI (HDMI/DVI/DisplayPort) 3 DDI ports support configurable HDMI/DisplayPort (HDMI 2.0b: 4Kx2K 48-60Hz 24bpp , DisplayPort

Advantech COM-Express Compact Module, Intel® Core ™ i7-7600U 2.8GHz, Dual Core, 15W, non-ECC (SOM-6898C7-U8A1E)

Category Attribute Value Display DDI (HDMI/DVI/DisplayPort) 1 Ports, optional 2 while remove VGA, configurable to HDMI1.4/DVI/Displayport1.2 Display Dual Display Yes

Advantech COM-Express Compact Module, Type 6 Intel® Core ™ Celeron 3965 2.2GHz Dual Core, non-ECC (SOM-6898CR-U4A1E)

Category Attribute Value Display DDI (HDMI/DVI/DisplayPort) 1 Ports, optional 2 while remove VGA, configurable to HDMI1.4/DVI/Displayport1.2 Display Dual Display Yes

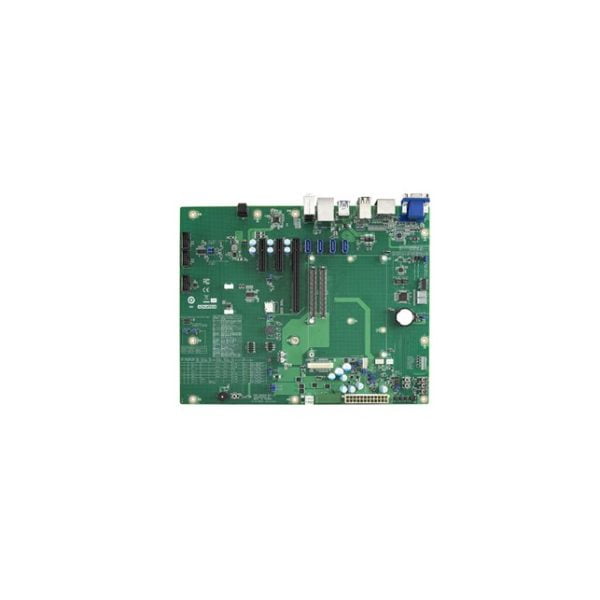

Advantech COM-Express Development Board Type 10 pint-out Rev. A2 (SOM-DB5800-U0A2E)

Category Attribute Value Display LVDS 18/24-bit single or dual channel Form Factor Form Factor COM Express Compact R2.1, Type 6/Type

Advantech COMe Basic Type7 Intel C3808 2GHz 25W 12C w/eMM (SOM-5962C12X-U0A1)

Intel® Atom™ C3000 processor COM Express R3.0 basic module Type 7 pin out 2~16 core processor, with max. TDP 31W Dual-CH

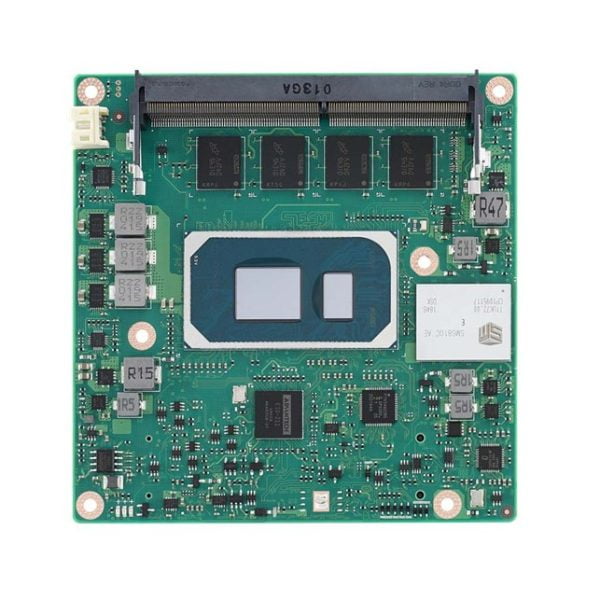

Advantech COMe Compact Board Type 6 w/ i7-1185GRE Core 16GBDDR4 32GNVMe Phoenix -40~85C (SOM-6883R7X-S8A1)

11th Generation Intel® Core™ Processor U-Series COM Express R3.0 Compact Module Type 6 Pinout Dual channel with one memory down and

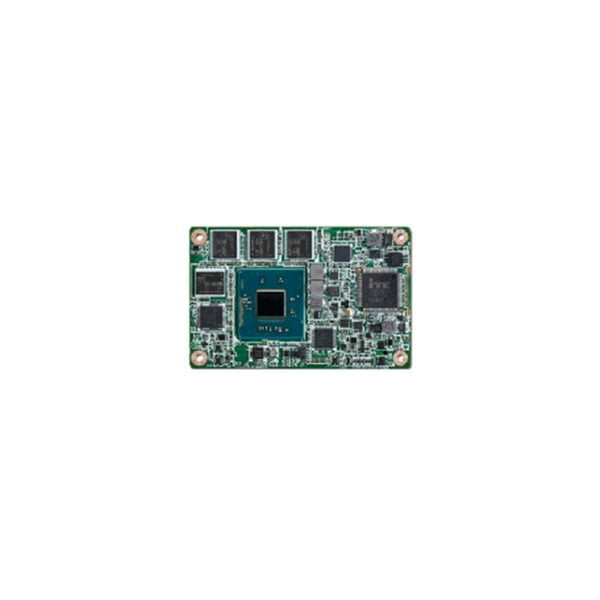

Advantech COMe Mini Module T10 8G-i/ECC/eM, Phoenix-40~85C, E3950F1 (SOM-7569CCBXC-S6B1)

Category Attribute Value Display Controller Intel® HD Graphics 505 Display LCD (TTL/LVDS/eDP) LVDS: Single channel 18-bit LVDS up to WXGA

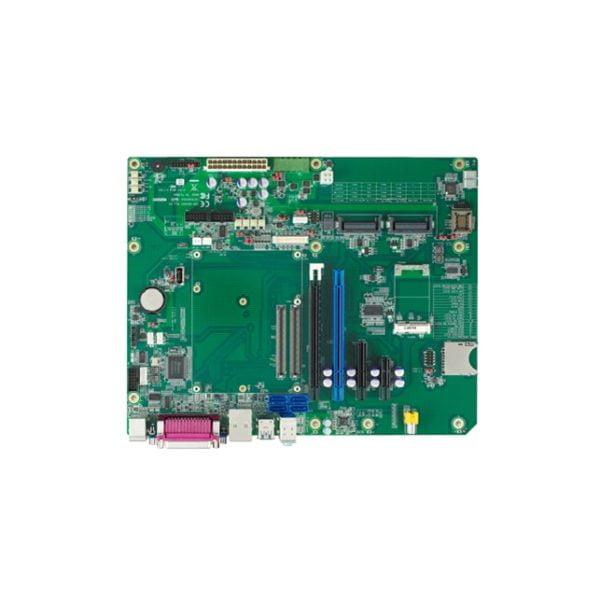

Advantech COMe R3.0 Devel. Board Type6 Rev. A1 (SOM-DB5830-00A1)

Expansion: PCIe x16, PCIe x4 Display Type: VGA, LVDS / eDP, HDMI / DP ATX form factor with both ATX
