ADVANTECH ADAM 4-channel Analog Input Module

Rp3.356.640
  • Channels: 4, differential
  • Input Type: Voltage, Current
  • Resolution: 16-bit
  • Voltage/Current: ±10V, ±2.5V, 0 ~ 20mA, Range 4 ~ 20mA
  • Sampling rate: 10 sample/second (total)
  • Input Impedance: 0.1 MΩ
  • Accuracy: ±0.1% or better of FSR (Voltage) ±0.2% or better of FSR (Current)
  • Isolation Voltage: 2000 V DC
  • Burn-out detection: Yes (Current-only)

ADVANTECH ADAM 4-channel Analog Output Module

Rp4.649.568
  • Channels 4
  • Output Type Voltage, Current
  • Resolution 12-bit
  • Isolation Voltage 2000 VDC

ADVANTECH ADAM 4-channel RTD Module

Rp3.306.912
  • Channels 4
  • Input Type Pt, Balco and Ni RTD
  • Resolution 16-bit with accuracy 0.1% of Full Scale Range
  • Isolation Voltage 2000 VDC
  • Burn-out detection Yes

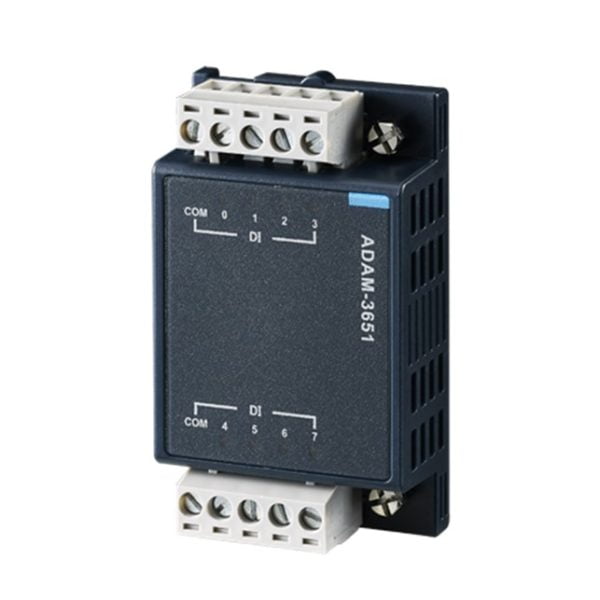

ADVANTECH ADAM-3651-AE I/O Extension, 8-ch DI Module

Rp1.889.664
  • Supports Sink (Wet Contact) / Counter input type
  • Rated Input : >5mA @ 12 VDC
  • Input Filter : Programmable, Default 3ms
  • Current : >10mA @ 24 VDC
  • Pulse Input Frequency : 150Hz
  • Over Voltage Protection : +40 VDC
  • -40 ~ 70°C operating temperature

ADVANTECH ADAM-3656-AE I/O Extension, 8-ch DO Module

Rp2.212.896
  • Supports open collector (Sink) output type
  • Rated voltage : 8 ~ 30 VDC
  • Rated current : 200 mA (max load)
  • Over voltage protection : +40 VDC
  • Pulse output frequency : 1 KHz
  • Opto-isolator response time : 150 us (max)
  • Isolation voltage : 2000 VDC
  • -40 ~ 70°C operating temperature

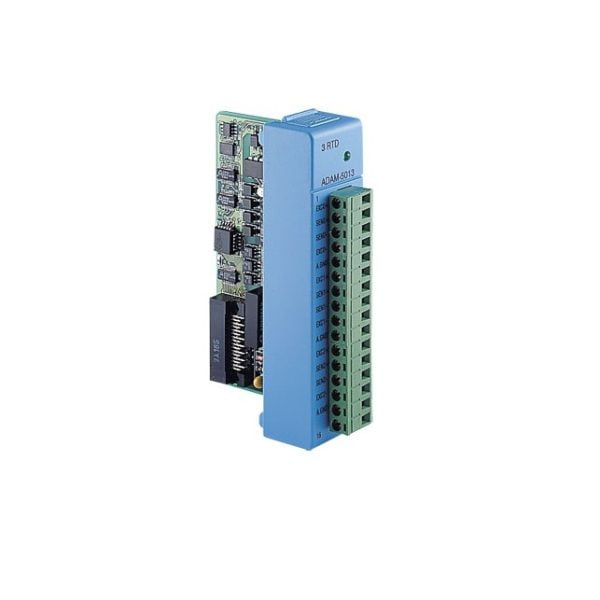

ADVANTECH ADAM-5013-A2E CIRCUIT MODULE, 3-Ch RTD Input Module

Rp4.699.296
  • Channels: 3
  • Effective resolution: 16-bit
  • Input connections: 2, 3 or 4 wire
  • Input type: PT100 or Ni RTD
  • Isolation voltage: 3000 VDC
  • Sampling rate: 10 samples/sec. (total)
  • Accuracy: ±0.1% or better

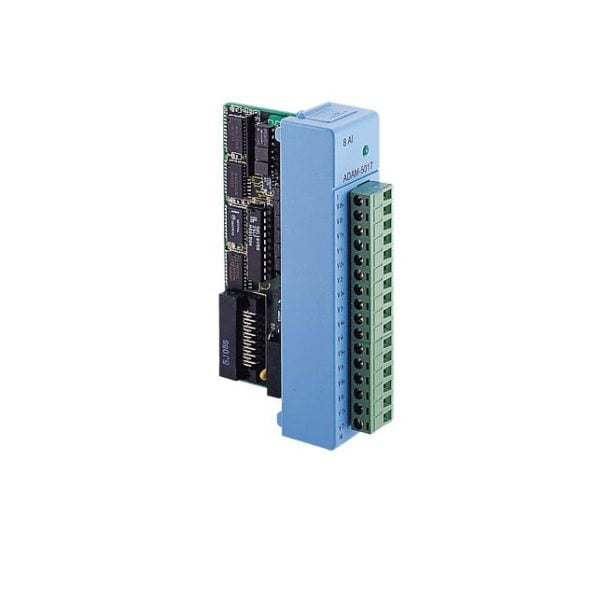

ADVANTECH ADAM-5017-A4E CIRCUIT MODULE, 8-Ch AI Module

Rp4.003.104
  • Channels: 8 differential
  • Effective resolution: 16-bit
  • lnput type: mV, V, mA
  • Isolation voltage: 3000 VDC
  • Sampling rate: 10 samples/sec. (total)
  • Accuracy: ±0.1% or better
  • Fault and overvoltage protection: withstands overvoltage up to ±35 V
  • Input range: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V; ±20 mA

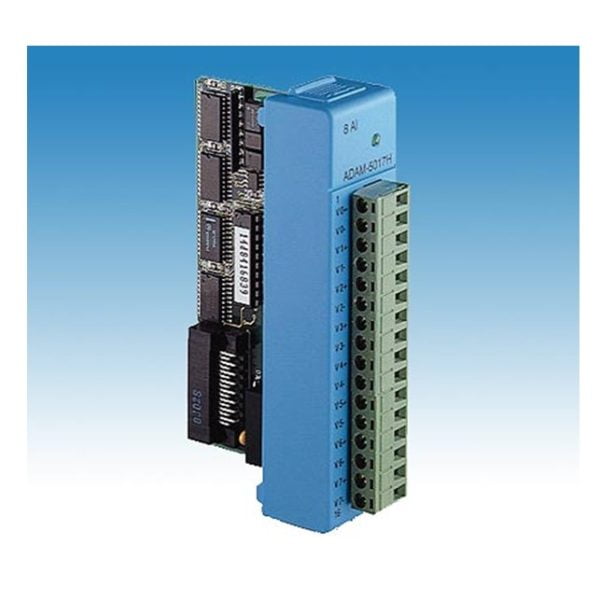

ADVANTECH ADAM-5017H-BE 8-channel High-speed Analog Input Module

Rp5.544.672
  • Effective resolution: 12-bit plus sign bit
  • Input type: mV, V, mA
  • 3000VDC Isolation voltage protection
  • High sampling rate:ADAM-5000/485&5000E: 100 samples/sec, ADAM-5510 & ADAM-5511: 8000 samples/sec max
  • 1000 Hz bandwidth
  • Distinct range settings allowed on each channel
  • Accuracy: ±0.1% or better

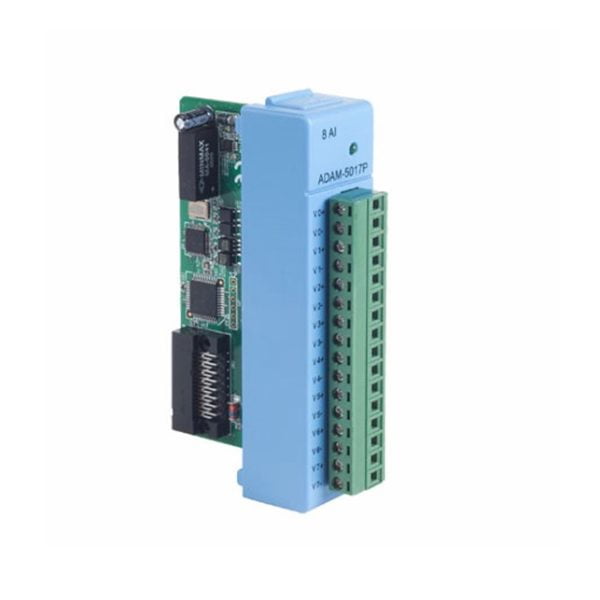

ADVANTECH ADAM-5017P-AE 8-ch Analog Input Module with Independent Input Range

Rp5.072.256
  • High Common Mode: 200 VDC
  • Over Voltage Protection: ±60 VDC
  • Built-in TVS/ESD Protection
  • Isolation Voltage: 3,000 VDC
  • Channels: 8 differential and independent configuration channels
  • Accuracy: Voltage mode : ±0.1% or better, Current mode : ±0.2% or better
  • CMR @ 50/60 Hz: 92 dB min.
  • Input Impedance: Voltage: 20 M, Current: 120Ω (Build-in 120Ω. register for Current Input) for Curren
  • lnput Type: mV, V (supports uni-polar and bipolar), mA and Sampling Rate: 10 samples/sec

ADVANTECH ADAM-5017UH-A1E 8-ch Ultra High Speed Analog Input Module

Rp6.390.048
  • Channels: 8 differential
  • Effective resolution: 12-bit
  • lnput type: mV, V, mA
  • Isolation voltage: 3000 VDC
  • Sampling rate: 10 samples/sec. (total)
  • Accuracy: ±0.1% or better
  • Fault and overvoltage protection: withstands overvoltage up to ±35 V
  • Input range: ±0 V, +0 ~ 10 V, 0 ~ 20 mV, +4 ~ 20 mA

ADVANTECH ADAM-5018-A2E 7-Ch Thermocouple Input Module

Rp4.326.336
  • Accuracy: ±0.1% or better
  • Effective resolution: 16-bit
  • Sampling rate: 10 samples/sec. (total)
  • Isolation voltage: 3000 VDC
  • Fault and overvoltage protection: withstands overvoltage up to ±35 V
  • Channels: 7 differential
  • lnput type: mV, V, mA, Thermocouple

ADVANTECH ADAM-5018P-AE 7-ch Thermocouple Input Module with Independent Input Range

Rp5.445.216
  • High Common Mode: 2000 VDC
  • Fault and Overvoltage Protection: Withstands over voltage up to ±35 V
  • Isolation Voltage: 3,000 VDC
  • Filter function: Yes
  • Built-in TVS/ESD Protection
  • Input Impedance: 20 MΩ. (Build-in 120 Ω Register for Current Input) with Channels: 7 differential with Independent Input Range
  • CMR @ 50/60 Hz: 92 dB min
  • Sampling Rate: 10 samples/sec. (total)
  • Accuracy Bandwidth: ±0.1% or better, 13.1 Hz @ 50 Hz, 15.72 Hz @ 60 Hz
