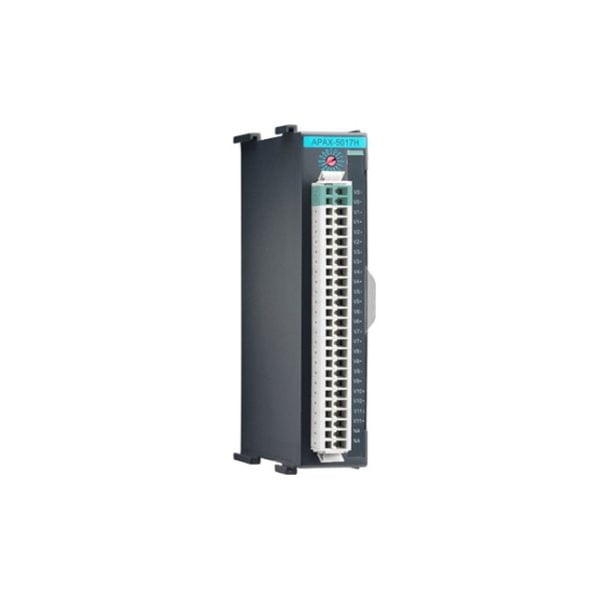

Advantech APAX-5017H-AE CIRCUIT MODULE, 12-ch High Speed Analog Input Module
- 12 analog input channels (12-bit, 1000 sample/second per channel)
- Supports various input types: 0 ~ 500 mV, 10 V, 0 ~ 10 V, 0 ~ 20 mA, 4 ~20 mA
- Each input channel can be configured with different input types and range
- 2500 VDC optical isolation between channels and backplane bus
- 35 VDC over voltage protection
- Wire burnout detection for 4~20 mA current input
Advantech APAX-5017H-B 12-ch High Speed Analog Input Module
Advantech APAX-5018-AE CIRCUIT MODULE, 12-ch Thermocouple Input Module
- Isolation between channels and backplane
- Supports wire burn-out detection functionality (4 ~ 20 mA and Thermocouple)
- Range: ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA
- Supports configurable input channels with different input type and range
- High density 12-ch analog input solution for reading thermocouple sensor data

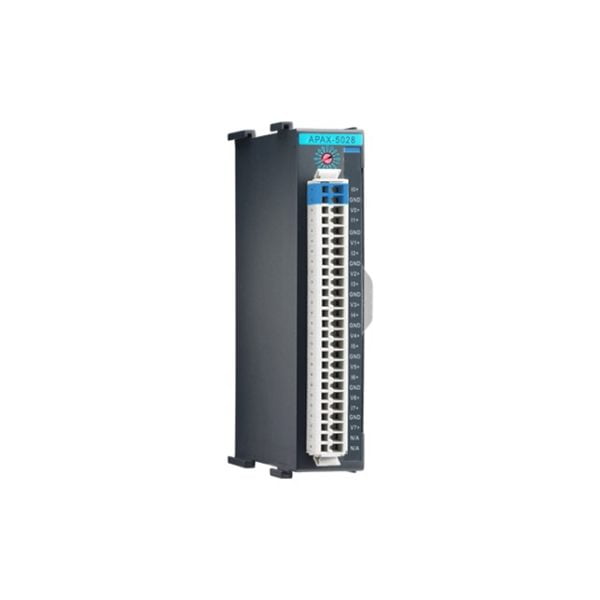

Advantech APAX-5028-AE 8-ch Analog Output Module
Advantech APAX-5040-AE 24-ch Digital Input Module
Advantech APAX-5046-AE 24-ch Digital Output Module
Advantech APAX-5046SO-A1E 20-channel Source Type Digital Output Module
Advantech APAX-5080-AE 4/8-ch High Speed Counter Module
- Supports multiple operating modes: 1.Up mode 2.Up/Down mode 3.Pulse/Direction mode 4.A/B Phase mode 5.Frequency mode
- 4 or 8 counter channels depends on operating modes
- 32-bit counter range with 1 bit overflow/underflow
- 1 MHz counter frequency
- 4 digital input channels with counter gate functionality
- 4 digital output channels with counter alarm output functionality
- Over voltage, short circuit and thermal protection design
