Edge Core 8 x GE PD + 2 x GE PoE+ + 2 x GE SFP L2 Switch (ECS4510-12PD)

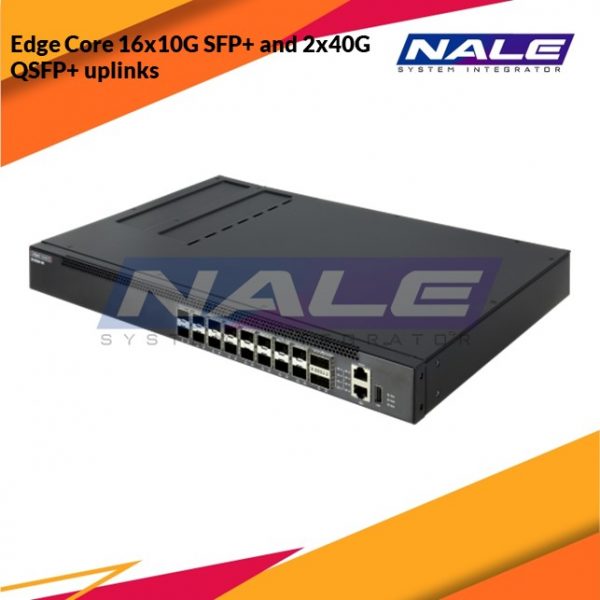

Edge Core 16x10G SFP+ and 2x40G QSFP+ uplinks (ECS5520-18X)
- High-performance 10G Layer 2+ /Lite L3 managed switch with 480 Gbps switching capacity
- Ideal solution for traditional three-tier aggregation or core topologies and folded-Clos architectures, serving with a 2:1 oversubscription
- 16 x 10G SFP+ + 2 x 40G QSFP+ uplinks
- Full L2+ feature with static route
- Dual hot swappable, load sharing power supplies to ensure the reliability of the switch
- Optional 2nd AC power module for redundancy & DC power module

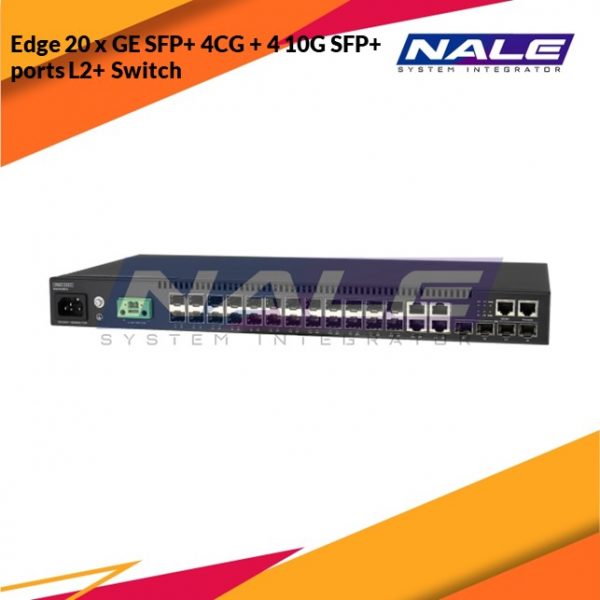

Edge Core 20 x GE SFP+ 4CG + 4 10G SFP+ ports L2+ Switch (ECS4120-28Fv2)
- Performance and Scalability - high-performance Gigabit Ethernet Layer 2+ managed switch with 128Gbps/176Gbps switching capacity.
- Continuous Availability - The IEEE 802.1w Rapid Spanning Tree Protocol provides a loop-free network and redundant links to the core network with rapid convergence, to ensure faster recovery from failed links, enhancing overall network stability and reliability.
- Reliability and Energy Efficiency - The design of the ECS4120 Series incorporates high energy efficiency in order to reduce the impact on the environment.
Edge Core 20 x GE SFP+ 4CG + 4 10G SFP+ ports L2+ Switch, Dual power supply (AC + DC) (ECS4120-28Fv2-I)
- Performance and Scalability - high-performance Gigabit Ethernet Layer 2+ managed switch with 128Gbps/176Gbps switching capacity.
- Continuous Availability - The IEEE 802.1w Rapid Spanning Tree Protocol provides a loop-free network and redundant links to the core network with rapid convergence, to ensure faster recovery from failed links, enhancing overall network stability and reliability.
- Reliability and Energy Efficiency - The design of the ECS4120 Series incorporates high energy efficiency in order to reduce the impact on the environment.
Edge Core 22 x GE SFP + 2 x GE Combo (RJ45/SFP) + 2 x 10G SFP+ ports (ECS4620-28F)
- Performance and Scalability - high-performance Gigabit Ethernet Layer 3 managed switches with 128 Gbps switching capacity.
- Continuous Availability - The IEEE 802.1w Rapid Spanning Tree Protocol provides a loop-free network and redundant links to the core network with rapid convergence, ensuring a faster recovery from failed links and enhancing overall network stability and reliability.
- Comprehensive QoS - offers advanced QoS for marking, classification, and scheduling to deliver best-in-class performance for data, voice, and video traffic at wire speed.
Edge Core 22 x GE SFP + 2 x GE Combo (RJ45/SFP) + 2 x 10G SFP+ ports 2 hot swappable AC Power supplies (ECS4620-28F-2AC)
- Performance and Scalability - high-performance Gigabit Ethernet Layer 3 managed switches with 128 Gbps switching capacity.
- Continuous Availability - The IEEE 802.1w Rapid Spanning Tree Protocol provides a loop-free network and redundant links to the core network with rapid convergence, ensuring a faster recovery from failed links and enhancing overall network stability and reliability.
- Support IPv4/v6 L3 Features
Edge Core 22 x GE SFP + 2 x GE Combo (RJ45/SFP) + 2 x 10G SFP+ ports DC Version (ECS4620-28F-DC)
- Continuous Availability - The IEEE 802.1w Rapid Spanning Tree Protocol provides a loop-free network and redundant links to the core network with rapid convergence, ensuring a faster recovery from failed links and enhancing overall network stability and reliability.
- Comprehensive QoS - offers advanced QoS for marking, classification, and scheduling to deliver best-in-class performance for data, voice, and video traffic at wire speed.
- Enhanced Security - with Port security limits, IEEE 802.1X port-based or MAC-based access control, DHCP snooping, IP Source Guard, Access Control Lists (ACLs), Private VLANs (traffic segmentation per port), DAI (Dynamic ARP Inspection), Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) providing secure network management.
- Simple Management - An industry-standard command-line interface (CLI), accessed through the console port or Telnet, provides a familiar user interface and command set for users to manage the switch.
- Support IPv4/v6 L3 Features
Edge Core 24 x 1G CSFP with 2 CSFP/4 RJ45 Combo G + 4 10G SFP+ + 2x 20G (ECS4530-54CSFP)
- Performance and Scalability with 256 Gbps switching capacity
- High Density Gigabit Ethernet Fiber Compact 1U design
- 22 x CSFP + 2 CSFP/ 4 RJ45 Combo + 4 x 10G uplink + 2x 20G QSFP+, 1 Out of band management port, Front Access, depth only 22cm
- Continuous Availability – MLAG, ITU-T 8032 ERPSv2, IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1D Spanning Tree Protocol (STP)
Edge Core 24 x FE + 4 GE Combo (RJ45/SFP) L2 Switch (ECS3510-28T)
- Performance and Scalability with 12.8 Gbps switching capacity
- Continuous Availability - IEEE802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, Multicast VLAN Registration (MVR), IGMP snooping, voice VLAN feature and IEEE 802.1Q-in-Q VLAN Tag.
- Comprehensive QoS - Traffic is prioritized according to 802.1p, DSCP, IP
Edge Core 24 x GE + 2 x 10G SFP+ ports (ECS4620-28T)
- Performance and Scalability - high-performance Gigabit Ethernet Layer 3 managed switches with 128 Gbps switching capacity.
- Continuous Availability - The IEEE 802.1w Rapid Spanning Tree Protocol provides a loop-free network and redundant links to the core network with rapid convergence, ensuring a faster recovery from failed links and enhancing overall network stability and reliability.
- Comprehensive QoS - offers advanced QoS for marking, classification, and scheduling to deliver best-in-class performance for data, voice, and video traffic at wire speed.
Edge Core 24 x GE + 2 x 10G SFP+ ports DC Version (ECS4620-28T-DC)
- Performance and Scalability – high-performance Gigabit Ethernet Layer 3 managed switches with 128 Gbps switching capacity.
- Continuous Availability – The IEEE 802.1w Rapid Spanning Tree Protocol provides a loop-free network and redundant links to the core network with rapid convergence, ensuring a faster recovery from failed links and enhancing overall network stability and reliability.
- Comprehensive QoS – offers advanced QoS for marking, classification, and scheduling to deliver best-in-class performance for data, voice, and video traffic at wire speed.
Edge Core 24 x GE + 4 Combos L2+ Swtich (ECS4100-28TC)
- Performance and Scalability with 56 Gbps switching capacity
- Continuous Availability - IEEE802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol and IEEE 802.3ad Link Aggregation Control Protocol (LACP).
- Comprehensive QoS - Traffic is prioritized according to 802.1p and DSCP, Weighted Round Robin (WRR) and strict priority ensure differential prioritization of packet flows and avoid congestion of ingress and egress queues.
