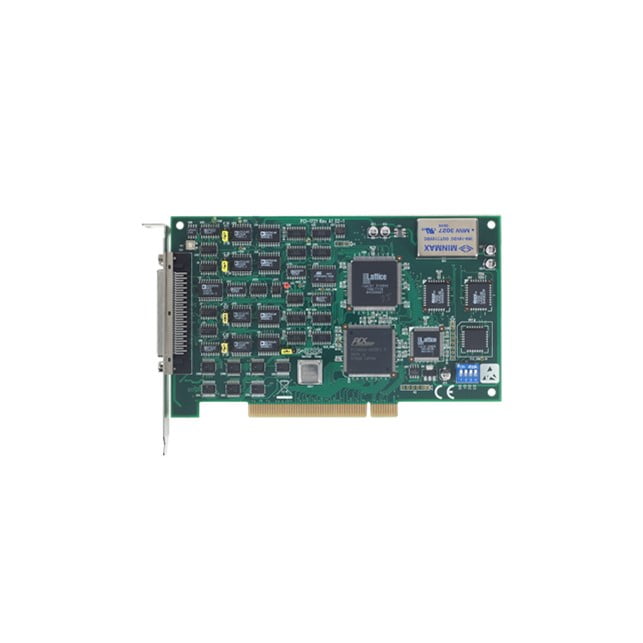

Advantech 12-bit, 4-ch Analog Output PCI Card with 16-ch Digital I/O (PCI-1721-AE)

  • 10 MHz maximum digital update rate
  • PCI-bus mastering for data transfer
  • Auto calibration function
  • Four analog output channels with 1024 samples FIFO buffer
  • A 12-bit DAC is equipped for each of analog output channels
  • Real-time waveform output function with internal/external pacer
  • Synchronized output function
  • Flexible output types and range settings
Deskripsi
Category Attribute Value
Analog Output Channels 4
Output Ranges 0~5 V, 0~10 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA
Resolution 12-bit
Update Rate(S/s) 10 MS/s
General Programming Language C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
Counter/Encoder Input Channels 1
Counting Range 16-bit
Digital Input Channels 16 (TTL)
Digital Output Channels 16 (TTL)

Datasheet PCI-1721-AE
