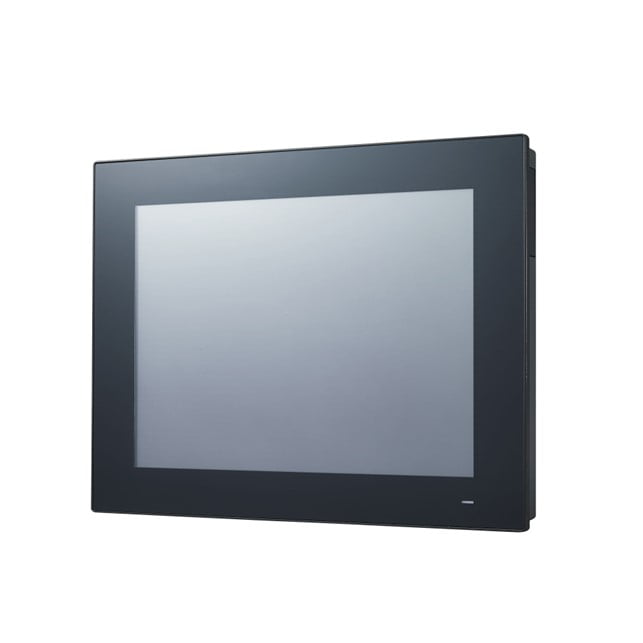

Advantech 15″ Fanless PPC, PCT,Intel Core I5-1145G7E (PPC-415-PB50A)
Deskripsi
| Category | Category | Category |
| Attribute | Attribute | Attribute |
| Value | Value | Value |
| Hardware | Hardware | Hardware |
| Certification | Certification | Certification |
| CE, FCC Class B, BSMI, CB, UL, CCC, UKCA | CE, FCC Class B, BSMI, CB, UL, CCC, UKCA | CE, FCC Class B, BSMI, CB, UL, CCC, UKCA |
| Hardware | Hardware | Hardware |
| CPU | CPU | CPU |
| Intel® Core™ i5-1145G7E 1.5GHz Quad core | Intel® Core™ i5-1145G7E 1.5GHz Quad core | Intel® Core™ i5-1145G7E 1.5GHz Quad core |
| Hardware | Hardware | Hardware |
| Ethernet | Ethernet | Ethernet |
| Intel® i225-LM | Intel® i225-LM | Intel® i225-LM |
| Hardware | Hardware | Hardware |
| Expansion | Expansion | Expansion |
| 1 x M.2 E key 2230,1 x M.2 B key 3052/3042, 1 x PCIe x4 or 1 x PCI | 1 x M.2 E key 2230,1 x M.2 B key 3052/3042, 1 x PCIe x4 or 1 x PCI | 1 x M.2 E key 2230,1 x M.2 B key 3052/3042, 1 x PCIe x4 or 1 x PCI |
| Hardware | Hardware | Hardware |
| I/O | I/O | I/O |
| 2 x RS-232, 1 x RS-422/485, 4 x USB 3.2, 1 x Line Out, 1 x Mic In, 1 x HDMI, 1 x DP | 2 x RS-232, 1 x RS-422/485, 4 x USB 3.2, 1 x Line Out, 1 x Mic In, 1 x HDMI, 1 x DP | 2 x RS-232, 1 x RS-422/485, 4 x USB 3.2, 1 x Line Out, 1 x Mic In, 1 x HDMI, 1 x DP |
| Hardware | Hardware | Hardware |
| LAN | LAN | LAN |
| 2 x 10/100/1000/2500 Mbps | 2 x 10/100/1000/2500 Mbps | 2 x 10/100/1000/2500 Mbps |
| Hardware | Hardware | Hardware |
| Memory | Memory | Memory |
| 2 x DDR4 SO-DIMM Slot | 2 x DDR4 SO-DIMM Slot | 2 x DDR4 SO-DIMM Slot |
| Hardware | Hardware | Hardware |
| OS Support | OS Support | OS Support |
| Microsoft® Windows 10, Microsoft® Windows 10 LTSC, Linux | Microsoft® Windows 10, Microsoft® Windows 10 LTSC, Linux | Microsoft® Windows 10, Microsoft® Windows 10 LTSC, Linux |
| Hardware | Hardware | Hardware |
| Power Consumption | Power Consumption | Power Consumption |
| 60 W @ 19 VDC | 60 W @ 19 VDC | 60 W @ 19 VDC |
| Hardware | Hardware | Hardware |
| Power Input | Power Input | Power Input |
Informasi Tambahan
| Brand | Advantech |
|---|
