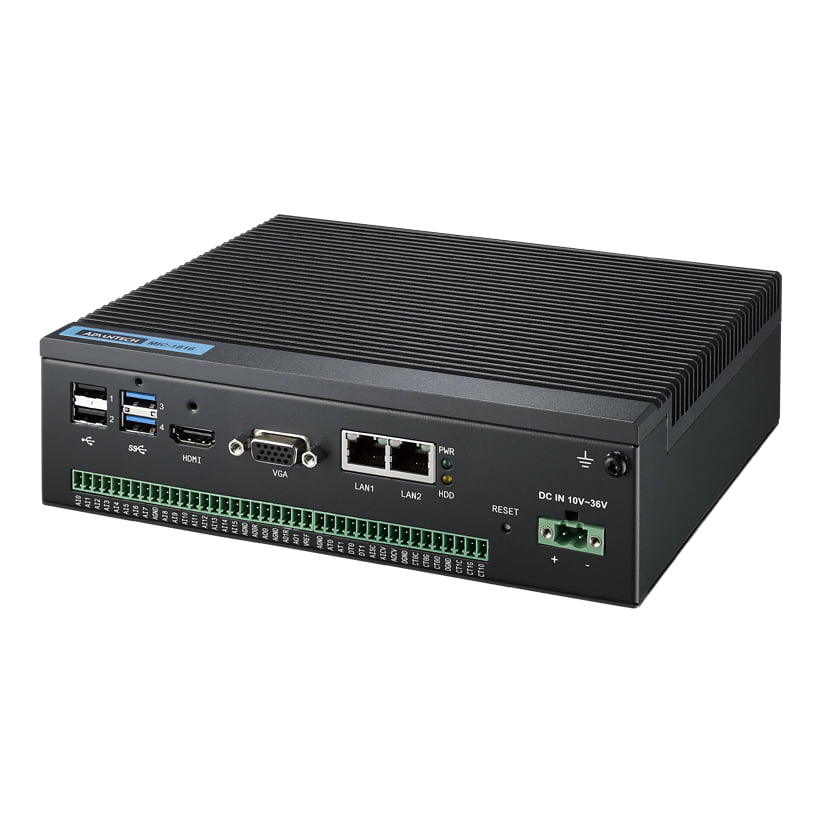

Advantech 16-bit, 1MS/s, 16-ch DAQ platform with Core™ i3/ Celeron® processer (MIC-1816-U0A1E)
Deskripsi
| Category | Attribute | Value |
| Analog Input | Channels | 16 |
| Analog Input | Input Range | ±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V |
| Analog Input | Resolution(Bits) | 16-bit |
| Analog Input | Sampling Rates(S/s) | 1 MS/s (sum) |
| Analog Output | Channels | 2 |
| Analog Output | Output Ranges | 0~5 V, 0~10 V, ±5 V, ±10 V |
| Analog Output | Resolution | 16-bit |
| Analog Output | Update Rate(S/s) | 3 MS/s |
| General | Programming Language | C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt |
| Hardware | Certification | CB, UL, CE, FCC Class A, CCC, BSMI |
| Counter/Encoder Input | Channels | 2 |
| Counter/Encoder Input | Counting Range | 32-bit |
| Counter/Encoder Input | Max. Input Frequency | 10 MHz |
| Digital Input | Channels | 16 (Isolated) |
| Digital Output | Channels | 8 (Isolated) |
| Power Requirements | Input Voltage | 10~30 VDC |
