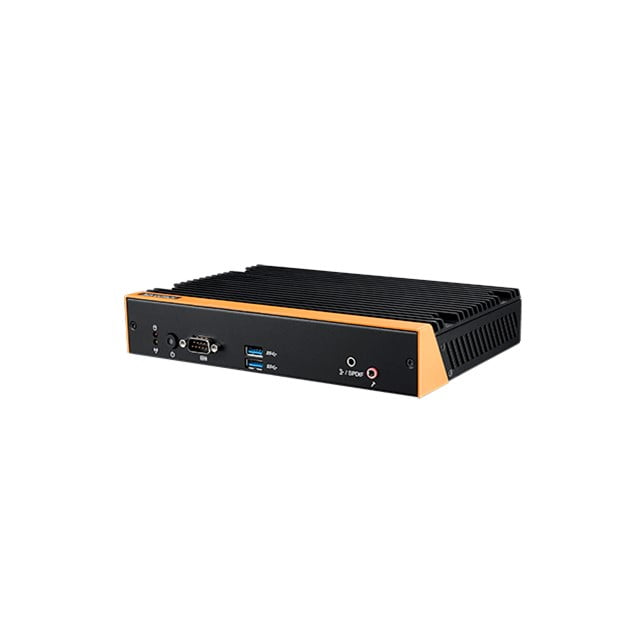

Advantech 4K Digital Signage Player with Integrated nVIDIA GT Graphics for Independent Quad Displays (DS-580GB-S6A2E)
Deskripsi
SPESIFICATION
| Category | Attribute | Value |
| Display | Chipset | NVIDIA® GeForce GT 1030 |
| Display | Memory Size | 2GB GDDR5 |
| Display | Multiple Display | Any 2, 3 or 4 outputs |
| Display | Output | 2 x HDMI 1.4, 2 x HDMI 2.0 |
| Display | Resolution | HDMI 2.0: up to 3840 x 2160 @ 60Hz ; HDMI 1.4: up to 3840 x 2160 @ 30Hz (CEC support) |
| Display | Video format | Decode for H.264,VC-1,WMV9,H.265/HEVC,VP8,VP9,JPEG/MJPEG,MPEG2(only for Yocto project Linux) ; Encode for H.264,MVC,WMV9,H.265/HEVC,VP8,VP9,JPEG/MJPEG |
| I/O | Audio | 1x audio phone jack for Mic-in, 1x SPDIF, supports jack sense via OS setting |
| I/O | HDMI | 4 |
| I/O | LAN | 2 (RJ-45) |
| I/O | M.2 | 1 x M.2 1630/2230 E-Key for wireless module |
| I/O | Mini-PCIe (Internal) | 1 x Full Size MiniPCIe support mSATA; w/SIM holder, support WWAN module (USB interface) |
| I/O | Power input | 1 (DC-in Jack) |
| I/O | Serial | 1 x COM (RS-232) |
| I/O | USB2.0 | 2 |
| I/O | USB3.0 | 2 |
| Memory | Max. Capacity | 16 GB (up to 8 GB per SODIMM) |
| Memory | Technology | DDR3L 1600 MHz |
| Processor | BIOS | AMI uEFI 64Mbit |
| Processor | CPU | Intel Atom® x7-E3950 Processor |
| Processor | L2 Cache | 2 MB |
| Processor | System Chipset | Integrated in CPU |
| Storage | SATA | 1 x 2.5-inch SATA III HDD/SSD |
| Ethernet | Connector | 2 x RJ-45 |
| Ethernet | Controller | 1 x Intel I211-AT, 1 x Realtek 8111G |
| Ethernet | Interface | Gigabit LAN Controller |
| Environment | Relative Humidity | 95% @ 40° C (non-condensing) |
| Environment | Temperature (Operating) | 0 ~ 50° C (32 ~ 122° F) |
| Watchdog Timer | Output | Interrupt, system reset |
| Power Requirement | Input Voltage | 19V DC-in (ATX/AT mode, default ATX) |
| Power Requirement | Others | Supports Boot on Power back and schedule boot up function |
| Power Requirement | Power Consumption Input Voltage | Max. 27W ; Idle: 19W (w/o expansion) |
| Software Development Kit | Linux | by Project support |
| Software Development Kit | Operating System | Windows 10 (64bit) |
| Certification | Electromagnetic | CE, FCC Class B, BSMI |
| Certification | Safety Certifications | UL, CB, CCC, BSMI |
| Physical Characteristics | Dimensions(W x D x H) | 220 x 40 x 150 mm |
| Physical Characteristics | Mounting | Easy mounting kits for LCD or Plasma |
| Physical Characteristics | Weight | 1.7 kg |
