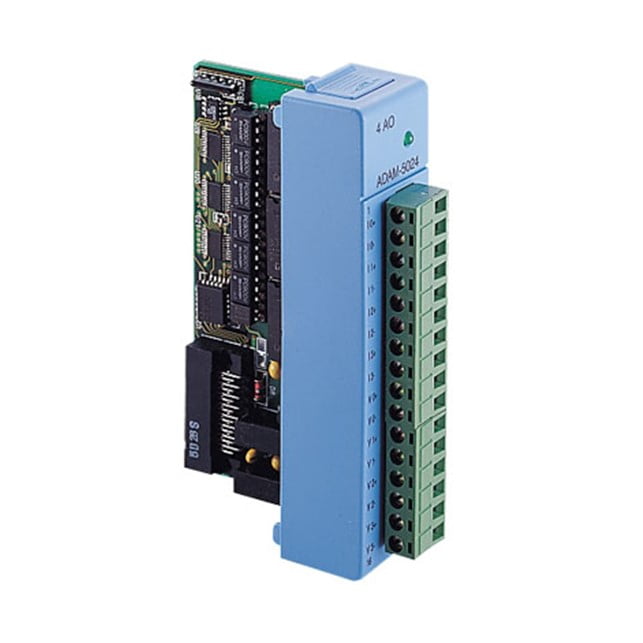

ADVANTECH ADAM-5024-A2E 4-Channel Analog Output Module
- Channels: 4
- Effective resolution: 12-bit
- Output type: mA, V
- Output range: 0 ~ 20 mA, 4 ~ 20 mA, 0 ~10 V
- Isolation voltage: 3000 VDC
- Accuracy: ±0.1% of FSR for current output
- Resolution: ±0.015% of FSR
Deskripsi
| Category | Attribute | Value |
| Analog Output | Channels | 4 |
| Analog Output | Drift | ±25 ppm/°C |
| Analog Output | Isolation Protection | 3,000 VDC |
| Analog Output | Load | < 500 Ω (current output) |
| Analog Output | Output Ranges | 0~20 mA, 4~20 mA, |
| Analog Output | Output Type | V, mA |
| Analog Output | Resolution | 12-bit |
| General | Connectors | 1 x 16-pin plug-in screw terminal |
| General | Humidity (Operating) | 5~95% RH (non-condensing) |
| General | Humidity (Storage) | 5~95% RH (non-condensing) |
| Hardware | Certification | CE, FCC class A |
Datasheet
Informasi Tambahan
| Brand | Advantech |
|---|
