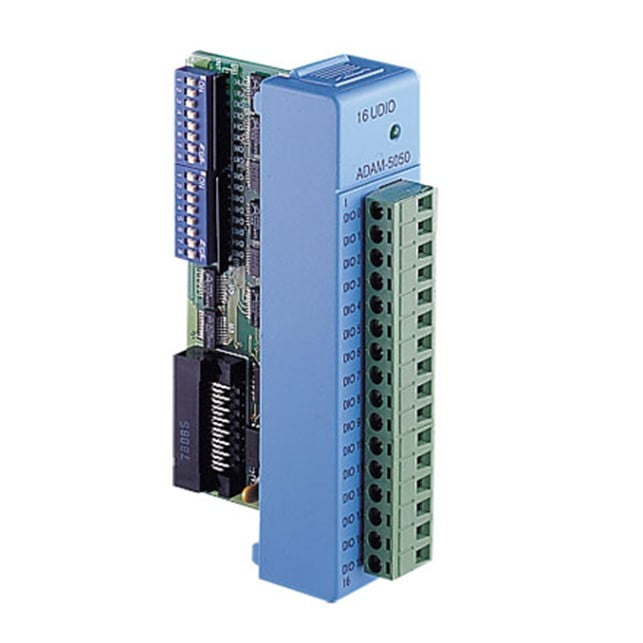

ADVANTECH ADAM-5050-A2E 16-Ch Universal DI/O Module
- Channels: 16
- I/O Type: bit-wise selectable by DIP switch
- Digital input: Support Dry/Wet Contact
- Digital output: Open Collector to 30 V, 450 mW max. load
- Power consumption: 0.35 W (typical); 1.2 W (max)
Deskripsi
| Category | Attribute | Value |
| General | Connectors | 1 x 16-pin plug-in screw terminal |
| General | Humidity (Operating) | 5~95% RH (non-condensing) |
| General | Humidity (Storage) | 5~95% RH (non-condensing) |
| Hardware | Certification | CE, FCC class A |
| Digital Input | Input Voltage | Dry Contact Logic level 0: close to GND Logic level 1: open Wet Contact Logic level 0: 2 V max. Logic level 1: 4 ~ 30 V |
| Digital Input and Digital Output | No. of Channels | Total 16-ch (DI/DO selectable) |
Datasheet
Informasi Tambahan
| Brand |
Advantech |
|---|
