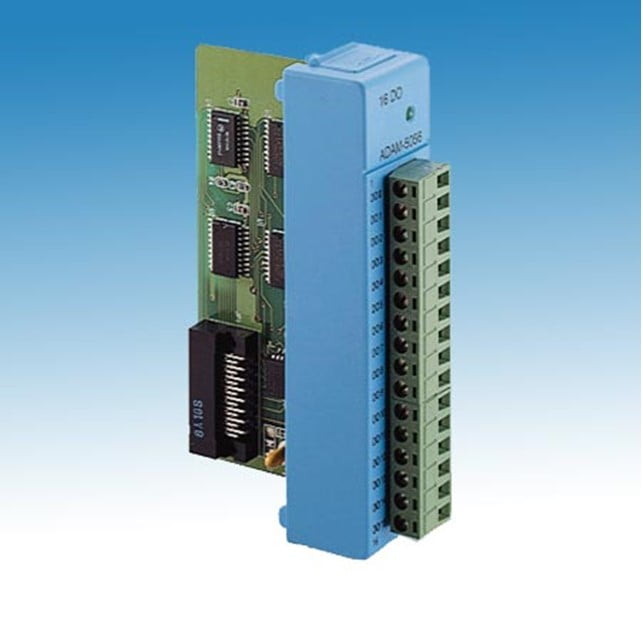

ADVANTECH ADAM-5056-AE 16-ch Digital Output Modules
- Channels: 16
- Operating voltage: 30 Vmax
- Digital output: Open collector to 30 V, 100 mA max. load
- Power consumption: 0.25 W (typical); 0.53 W (max.)
- Power dissipation: 300 mW for each channel
Deskripsi
| Category | Attribute | Value |
| General | Connectors | 1 x 16-pin plug-in screw terminal |
| General | Humidity (Operating) | 5~95% RH (non-condensing) |
| General | Humidity (Storage) | 5~95% RH (non-condensing) |
| Hardware | Certification | CE, FCC class A |
| Digital Output | Channels | 16 |
| Digital Output | Isolation Protection | 2,500 VDC |
| Digital Output | Voltage Rating | 10~30 VDC |
Datasheet
Informasi Tambahan
| Brand |
Advantech |
|---|
