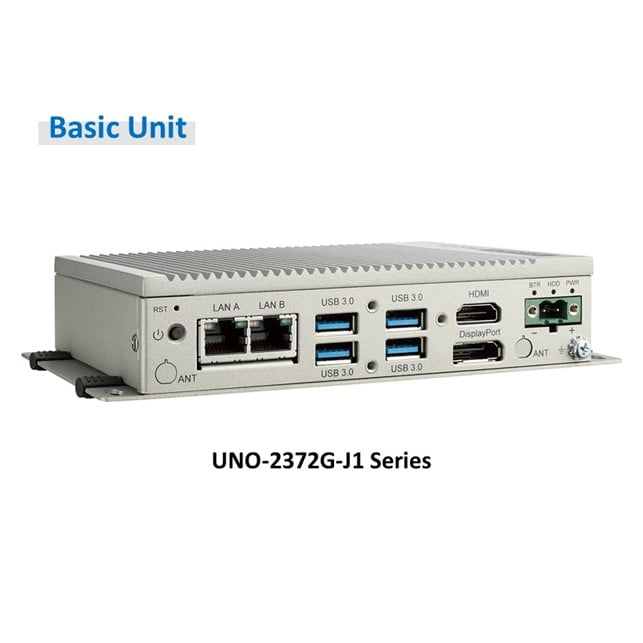

Advantech COMPUTER SYSTEM, Intel® Atom® E3845/ Celeron® J1900 Small-Size Modular Box Platform (UNO-2372G-E021AE)
Deskripsi
| Category | Attribute | Value |
| Hardware | Certification | CE, FCC, UL, CCC, BSMI |
| Hardware | CPU | Intel® Atom™ E3845 1.91GHz Quad-core |
| Hardware | Graphics Engine | Intel® HD Graphics |
| Hardware | Memory | 1 x SO-DIMM Memory with 4 GB DDR3L 1333 MHz |
| Hardware | OS Support | Microsoft® Windows 10 2019 LTSB, Microsoft® Windows 10 LTSC, WES7, Linux |
| Hardware | Power Input | 10~36 VDC |
| Hardware | Storage | 1 x mSATA (shared with mPCIe), 1 x 2.5″ SSD/HDD bay |
| I/O Interface | Audio | Line-Out |
| I/O Interface | Displays | 1 x HDMI, 1 x DP |
| I/O Interface | Expansion | 2 x Full-size mPCIe Slot |
| I/O Interface | LAN Ports | 2 x 10/100/1000 Mbps |
| I/O Interface | Power Connector | 1 x 2-Pin Terminal Block |
| I/O Interface | Serial Ports | 4 x RS-232/422/485 |
| I/O Interface | USB Ports | 1 x USB 3.0, 3 x USB 2.0 |
| Environment | Ingress Protection | IP40 |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Relative Humidity | 10~95% RH (non-condensing) |
| Environment | Shock Protection | 50 G, half sine |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Environment | Vibration Protection | 2 Grms, random |
| Mechanical | Dimension (W x H x D) | 150 x 105 x 35 mm |
| Mechanical | Enclosure | Aluminum housing |
| Mechanical | Weight (Net) | 1.1 kg (2.4 lb) |
Informasi Tambahan
| Brand |
Advantech |
|---|
