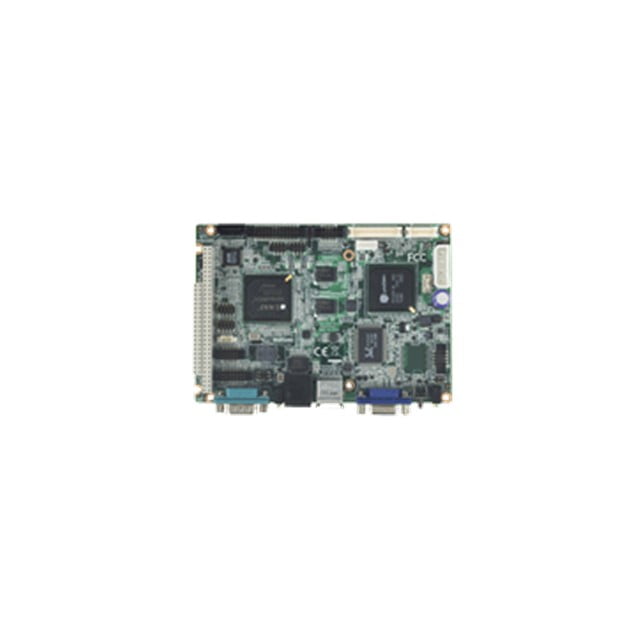

Advantech DMP Vortex86DX -800MHz Ultra Low Power 3.5” SBC with 256MB (PCM-9343EL-S6A1E)
Harga hubungi kami
Deskripsi
| Category | Attribute | Value |
| Form Factor | Form Factor | 3.5″ CPU Boards |
| I/O | COM Port | 2 ( 1 x RS232, 1 x RS232/ 422/ 485) |
| I/O | GPIO | 1, 16-bit GPIO |
| I/O | Keypad | 1 |
| I/O | LPT | 1 |
| I/O | Reset Button | 1 |
| I/O | USB2.0 | 2 |
| Memory | Max. Capacity | 512MB |
| Memory | Onboard Memory | On board 256MB |
| Memory | Technology | DDR2 333MHz |
| Processor | BIOS | Award integrated 16Mbit ROM in SOC |
| Processor | Core Number | 1 |
| Processor | CPU | DM&P Vortex86DX 800 MHz, supports Floating Point Unit (FPU) |
| Processor | CPU TDP | 2.02 W @ 800 MHz |
| Processor | Frequency | 800MHz |
| Processor | L2 Cache | 256KB |
| Storage | CompactFlash | CompactFlash Type I/II (Primary Master IDE Channel) Supports 2 channels Ultra-DMA 100 |
| Operating System | Linux | Yes |
| Operating System | Microsoft Windows | Yes |
| Operating System | SUSIAccess | SUSI 3.0 |
| Environment | Non-Operational Temperature | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Power | Battery | Lithium 3 V / 210 mAH |
| Power | Connector | 1x4pin power connector |
| Power | Power Consumption (Full Load) | 0.75 A @ 5 V (3.75 W) |
| Power | Power Consumption (Idle) | 0.44 A @ 5 V (2.2 W) |
| Power | Power Supply Voltage | Single 5V,±5% (+12V option for LCD) |
| Power | Power Type | AT |
| Ethernet | Connector | RJ45 on Ethernet1 |
| Ethernet | Controller | Ehternet1: 10/100 Mbps on DM&P Vortex86DX |
| Ethernet | Speed | 10/100 Mbps |
| Watchdog Timer | WatchDog Timer | Yes |
| Certification | EMC | CE, FCC |
| Expansion | I2C Bus | 1 |
| Expansion | PC/104 | 1 |
| Physical | Construction | Aluminum with fanless design |
| Physical | Dimension (mm) | 146 x 102 mm |
| Physical | Weight | 0.64kg (1.41 lb), weight of total package |
Informasi Tambahan
| Brand |
Advantech |
|---|
