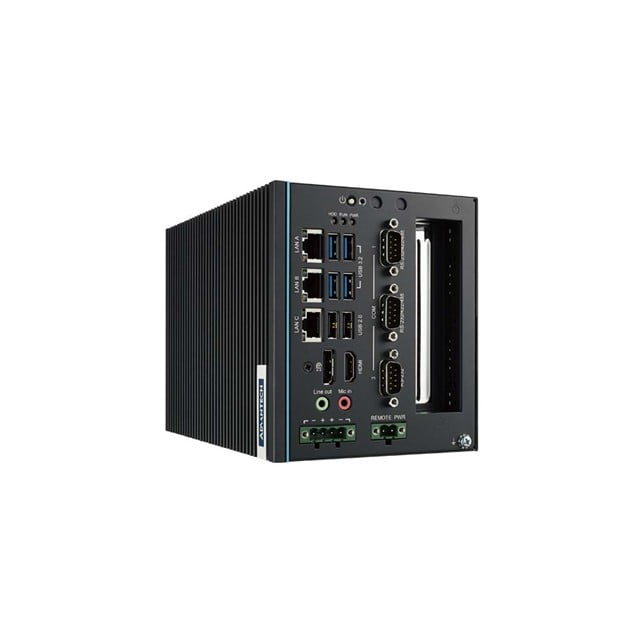

Advantech Expandable Automation Computer: H420E,3COM,6USB,3LAN,1PCIex16,2PCI (UNO-348-ANN3A)
Deskripsi
SPESIFICATION
| Category | Attribute | Value |
| Hardware | Certification | CB, UL, CE, FCC Class A, CCC, BSMI |
| Hardware | CPU | – |
| Hardware | Graphics Engine | Intel® HD Graphics |
| Hardware | Hardware Security | TPM 2.0 |
| Hardware | Memory | – |
| Hardware | OS Support | Win 10 2019 LTSC, AdvLinux (Ubuntu 18.04) |
| Hardware | Power Input | 10~36 VDC |
| Hardware | Storage | 2 x 2.5″ SSD/HDD Bay |
| I/O Interface | Audio | Line-In (Pin Header), Line-Out (Pin Header), Microphone (Pin Header) |
| I/O Interface | Displays | 1 x DP, 1 x HDMI |
| I/O Interface | Expansion | 1 x Full-size mPCIe Slot, 1 x M.2 B key, 1 x PCIe x16 |
| I/O Interface | LAN Ports | 3 x 10/100/1000 Mbps |
| I/O Interface | Power Connector | 1 x 4-Pin Terminal Block |
| I/O Interface | Serial Ports | 1 x RS-232, 2 x RS-232/422/485 |
| I/O Interface | USB Ports | 4 x USB 3.2, 2 x USB 2.0 |
| Environment | Ingress Protection | IP20 |
| Environment | Operating Temperature | -20~50 °C (-4~122 °F) |
| Environment | Relative Humidity | 95% RH (non-condensing) |
| Environment | Shock Protection | 50 G, half sine |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Environment | Vibration Protection | 4 Grms, random |
| Mechanical | Dimension (W x H x D) | 200 x 140 x 120 mm |
| Mechanical | Enclosure | Aluminum housing |
| Mechanical | Weight (Net) | 3.5 kg (7.72 Ib) |
