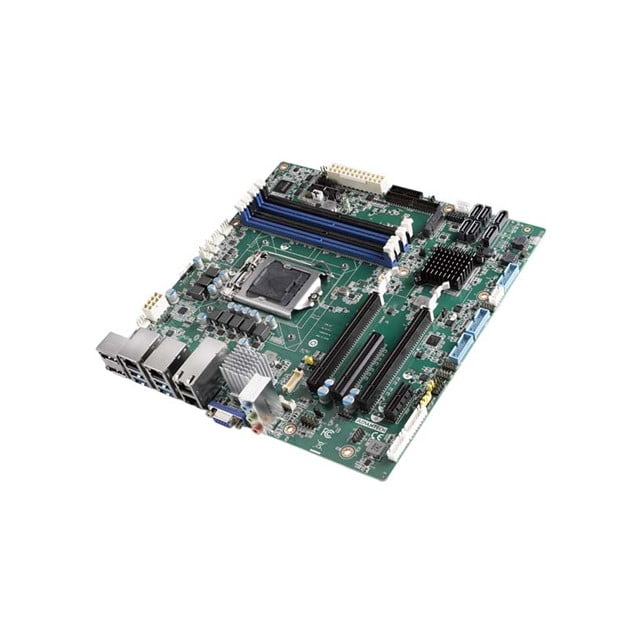

Advantech Industrial MircoATX Motherboard: LGA1200 mATX 2DP/8SATA/6COM/16USB/2*10GbE/W480E (AIMB-587F-00A1E)
Deskripsi
| Category | Attribute | Value |
| Display | Controller | Intel HD Graphics |
| Display | DDI (HDMI/DVI/DisplayPort) | HDMI: upto 4096×2160@60Hz ; DP:3840×2160@60Hz |
| Display | Graphic Engine | DirectX 11.2, OpenGL 5.0, OpenCL 2.1 |
| Display | Graphic Memory | 1GB maximum shared memory with 2GB and above system memory installed |
| Display | LCD (TTL/LVDS/eDP) | eDP: support to 3840 x 2160 @ 60 Hz |
| Display | Multiple Display | Dual/ Triple |
| Form Factor | Form Factor | Micro ATX |
| I/O | COM Port | 6 ( 5 x RS232, 1 x RS232/ 422/ 485) |
| I/O | GPIO | 16-bit GPIO |
| I/O | Keypad | 1 |
| I/O | Smart Fan | 5 |
| I/O | TPM | TPM 2.0 |
| I/O | USB2.0 | 6 |
| I/O | USB3.0 | 6 |
| Memory | ECC Support | Yes/NO |
| Memory | Max. Capacity | 128GB |
| Memory | Socket | 4 x 288-pin DIMM |
| Memory | Technology | Dual Channel DDR4, 2400/2666MHz ECC/Non-ECC with 288 pin U-DIMM |
| Processor | BIOS | AMI EFI 128Mbit |
| Processor | Chipset | W480E |
| Processor | Core Number | 10/8/6/4/2 |
| Processor | CPU TDP | 80W/65W/35W |
| Processor | Frequency | 2.2GHz ~ 3.8GHz |
| Processor | L3 Cache | 2 ~ 8MB |
| Storage | RAID | Software RAID 0, 1, 5, 10 |
| Storage | SATA | 6 x SATAIII (Max. Data Transfer Rate 600 MB/s) |
| Operating System | Linux | Yes |
| Operating System | Microsoft Windows | Yes |
| Operating System | SUSIAccess | Yes |
| Operating System | Ubuntu | V |
| Environment | Non-Operational Temperature | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Environment | Vibration Resistance | 3.5 Grm (Non-Operation Mode) |
| Power | Battery | Lithium 3 V / 200 mAh |
| Power | Connector | ATX24P |
| Power | Power Consumption (Full Load) | 3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V |
| Power | Power Type | ATX |
| Ethernet | Connector | RJ45 x 2 |
| Ethernet | Controller | LAN1: Intel i219LM / LAN2: Intel i211AT |
| Ethernet | Speed | 10/ 100/ 1000 Mbps |
| Audio | Audio Interface | HD Audio |
| Audio | CODEC | Realtek ALC888S, High Definition Audio (HD) |
| Audio | Connector | 2 (Line out, Mic-in) |
| Watchdog Timer | WatchDog Timer | Yes |
| Certification | EMC | CE, FCC |
| Expansion | PCI Express x 1 | 1 |
| Expansion | PCI Express x 16 | 1 |
| Expansion | PCI Express x 4 | 1 |
| Expansion | PCI Express x 8 | option |
| Expansion | SMBus | 1 |
| Physical | Dimension (mm) | 244 x 244 mm |
| Physical | Weight | 1.2 kg (2.64 lb), weight of total package |
Informasi Tambahan
| Brand |
Advantech |
|---|
