SPESIFICATION

Category Attribute Value
Memory Max. Capacity 8 GB, 4 GB per SO-DIMM
Memory Socket 2 x 204-pin SO-DIMM
Memory Technology Dual channel DDR3L 1333MHz SDRAM
Processor BIOS AMI 16 Mbit SPI (Default BIOS is supported for 64-bit OS installation, BIOS for 32-bit OS is supported by project)
Processor Core Number 4
Processor CPU Intel Celeron Processor J1900 Quad Core
Processor L2 Cache 2 MB
Processor Max Speed 2.0 GHz, Turbo Boost up to 2.41GHz
Storage HDD 1 x SATA HDD Bay for 2.5″ or 3.5″ device with maximum height 26.1mm
Storage Solid State Disk 1 x mSATA share with mini-PCIe slot
Environment Operating Temperature With extended temperature peripherals/SSD: 0 ~ 50° C (32 ~ 122° F) with 0.7 m/s air flow, With 3.5-inch hard disk 0 ~ 40° C (32 ~ 104° F) with 0.7 m/s air flow, With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7 m/s air flow
Environment Storage Temperature -40 ~ 85° C (-40 ~ 185° F)
Other Digital IO 8-bit programmable (Reserved)
Other Watchdog Timer 255 levels timer interval, setup by software
Power Consumption Typical 15.7 W, Max. 24.7 W
Power Input Voltage 12 VDC, ± 10%
Power Power Adaptor AC to DC, DC12V/5A, 60 W (Optional)
Power Power Type ATX
Ethernet LAN1 10/100/1000 Mbps RTL8111E GbE
Ethernet LAN2 10/100/1000 Mbps RTL8111E GbE
Graphics Controller Intel Gen 7 Graphics Engines and media encode/decode engine; GPU Frequency: 688 MHz
Graphics Display port Supports resolution up to 2560 x 1600
Graphics Dual Display VGA+DP
Graphics VGA Supports up to 2048 x 1280
Graphics VRAM Shared system memory up to 224 MB SDRAM
Audio Interface Realtek ALC892, High Definition Audio, Line-out, Mic-in

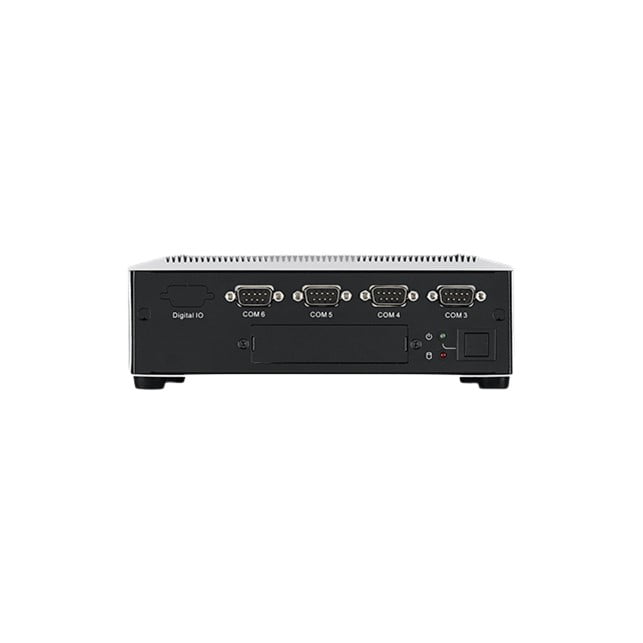

I/O Interface Serial Port 5 x RS-232 ports, 1 x RS-232/422/485 with auto flow control (COM3)
I/O Interface USB 1 x USB 3.0 port and 7 x USB 2.0 ports
Environment EMC CE/FCC Class A, CCC, BSMI
Environment Relative Humidity 95% @ 40° C (non-condensing)
Environment Safety Certifications CB, UL, CCC, BSMI
Environment Shock During Operation With HDD: 10 G, IEC 60068-2-27, half sine, 11 ms duration
Environment Vibration during Operation With HDD: 0.5 Grms, IEC 60068-2-64, random, 5~500Hz, 3 axes, 1hr/axis
Expansion Mini PCIe 1 x Full-size Mini PCIe, support mSATA storage or WWAN module; 1 x Half-size Mini PCIe, support WLAN module
Mechanical Construction Aluminum housing
Mechanical Dimensions 200 x 64 x 200 mm
Mechanical Mounting Wall mounting kit (optional), VESA mounting kit (optional)
Mechanical Weight 2.0 kg
Software Support Linux Support (by Project)
Software Support Microsoft Windows Windows 10, Windows 8 , Windows 7, WES8, WES7

DataSheet ARK-6322-Q0A2E
