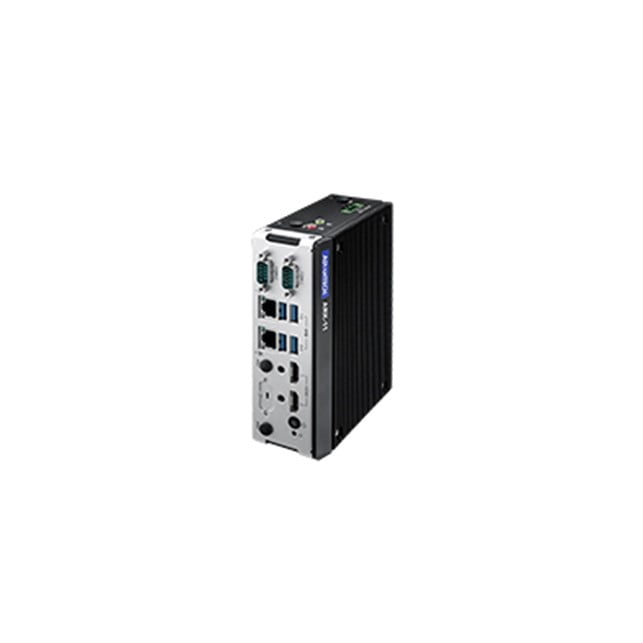

Advantech Intel Celeron N3350 DC SoC with 4K Dual HDMI/Dual LAN/M.2 DIN-Rail Fanless Box PC (ARK-11-S1A3)
Deskripsi
SPESIFICATION
| Category | Attribute | Value |
| I/O | GPIO | 8-bit Programmable DIO (Optional) |
| I/O | Serial port | 2 x RS-232/422/485 with auto flow control, COM2 with 5V/12V power supply |
| I/O | USB | 4 x USB 3.0 |
| Memory | Max. Capacity | 8GB, 1 x 4GB memory (-40 ~ 85 °C) built-in |
| Memory | Socket | 2 x 204-pin SO-DIMM |
| Memory | Technology | DDR3L 1866 MHz |
| Processor | BIOS | AMI EFI 64 Mbit |
| Processor | Core Number | 2 |
| Processor | CPU | Intel Celeron N3350 Dual Core SoC |
| Processor | Frequency | 1.1 GHz, turbo burst 2.4 GHz |
| Storage | 2.5″ HDD/SSD | 1 x 2.5″ 64G MLC SSD (-40~85°C) built-in |
| Storage | mSATA | 1 x Full-size mSATA (*share with mPCIe slot) |
| Environment | Operational Temperature | With extended temp. peripherals: -30 ~ 70 °C (-22 ~ 158 °F) with 0.7 m/s air flow, With 2.5 inch hard disk: 0 ~ 40 °C (32 ~ 104 °F) with 0.7 m/s air flow |
| Environment | Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Power | Input Voltage | 12 ~ 28 VDC |
| Power | Power Adaptor | AC to DC, 24V/2.5A 60W adaptor built-in |
| Power | Power Type | AT/ATX |
| Ethernet | LAN1 | 10/100/1000 Mbps Intel i210 GbE, support Wake On Lan |
| Ethernet | LAN2 | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
| Graphics | Chipset | Intel HD Graphics 500, CPU integrated |
| Graphics | Dual Display | HDMI1 + HDMI2 |
| Graphics | Graphic Engine | Gen9 Low Power; 18 Execution Units Media Codec Supported: H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG, 3D HW Acceleration: OpenGL 4.4, DirectX* 12, OpenCL* 2.0 |
| Graphics | HDMI | HDMI1 : 3840 x 2160 @ 30Hz; HDMI2 : 3840 x 2160 @ 30Hz |
| Audio | Interface | Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
| Environment | Relative Humidity | 95% @ 40° C (non-condensing) |
| Environment | Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| Environment | Vibration during Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Certification | EMC | CE/FCC Class B, CCC, BSMI |
| Certification | Safety Certifications | UL 62368, CB 62368, CCC, BSMI |
| Expansion | M.2 | 1 x M.2 2230 E key for WIFI module |
| Expansion | Mini PCIe | 1 x Full-size mPCIe with SIM holder |
| Power Consumption | Max. | 18.1W |
| Power Consumption | Typical | 6.4W |
| Mechanical | Construction | Aluminum housing |
| Mechanical | Dimensions | 53.5 x 158 x 114 mm (2.11″ x 6.22″ x 4.49″) |
| Mechanical | Mounting | DIN-rail/Wall Mount |
| Mechanical | Weight | 1.2 kg (2.65lb) |
| Others | Watchdog timer | 255 levels timer interval, setup by software |
| Software Support | Linux | Support by project |
| Software Support | Microsoft Windows | Windows 10 IoT Enterprise built-i |
Informasi Tambahan
| Brand |
Advantech |
|---|
