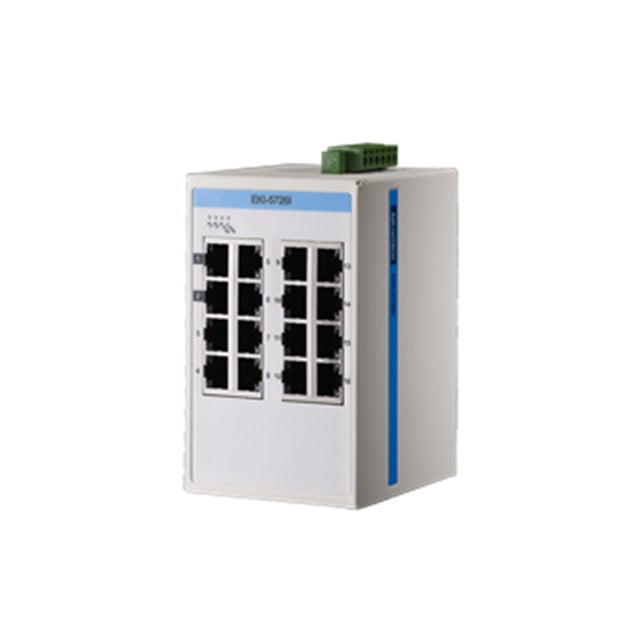

Advantech ProView, 16-port Full Gigabit Industrial Switch (EKI-5726I-AE)
- Communicates with SCADA software via Modbus/TCP
- Communicates with NMS (Networking management system) via SNMP
- Port-based QoS for deterministic data transmission
- -40~75°C operating temperature range (EKI-5726I only)
- 12 ~48 V DC (8.4~52.8 V DC ) wide-range power input
- EMS level 3 protection for extreme outdoor environments
Deskripsi
| Category | Attribute | Value |
| Power | Power Connector Type | 6-pin removable screw terminal (power & relay) |
| Power Consumption | Max. 8W | |
| Power Input (DC) | 12 ~ 48 VDC | |
| Power Operating Current | 0.36A @ 24V | |
| Protection | Overload Current | Present |
| Reverse Polarity | Present | |
| Environment | Temperature (Max. Operating) | 75°C (167°F) |
| Temperature (Min. Operating) | -40°C (-40°F) | |
| Temperature (Operating Range) | -40 ~ 75°C (-40 ~ 167°F) | |
| Temperature (Storage Range) | -40 ~ 85°C (-40 ~ 185°F) | |
| Mechanism | Dimensions (W x H x D) | 74 x 120 x 84 mm |
| Enclosure (Plastic) | – | |
| IP Rating | IP30 | |
| Mounting (DIN-rail) | Yes | |
| Mounting (Panel) | – | |
| Mounting (Pole Mount) | – | |
| Mounting (Rack Mount) | – | |
| Mounting (Stack) | – | |
| Mounting (Wall) | Yes | |
| Weight | 8 kg | |
| Ethernet Communication | Fiber Port Connector Type | – |
| Fiber Port Interface | – | |
| Fiber Port Number | – | |
| Fiber Transmission Distance | – | |
| Fiber Transmission Speed | – | |
| RJ-45 Port Connector Type | RJ-45 | |
| RJ-45 Port Number | 16 | |
| RJ-45 Transmission Distance | 100 m | |
| RJ-45 Transmission Speed | 10/100/1000 Mbps | |
| Switch Properties | Jumbo Frame | 9,216 bytes |
| MAC Table Size | 8K | |
| Packet Buffer Size | 4.1M bit | |
| Switch Fabric Speed | 32Gbps | |
| Certification | EMI | CE, FCC |
| EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) | |
| Safety | UL508, Class 1 Division 2, ATEX | |
| Warranty | Warranty Period | 5 years |
| PoE Information | PoE Budget | – |
| PoE Output | – | |
| PoE Port Number | – | |
| Support PoE | No |
Informasi Tambahan
| Brand |
Advantech |
|---|
