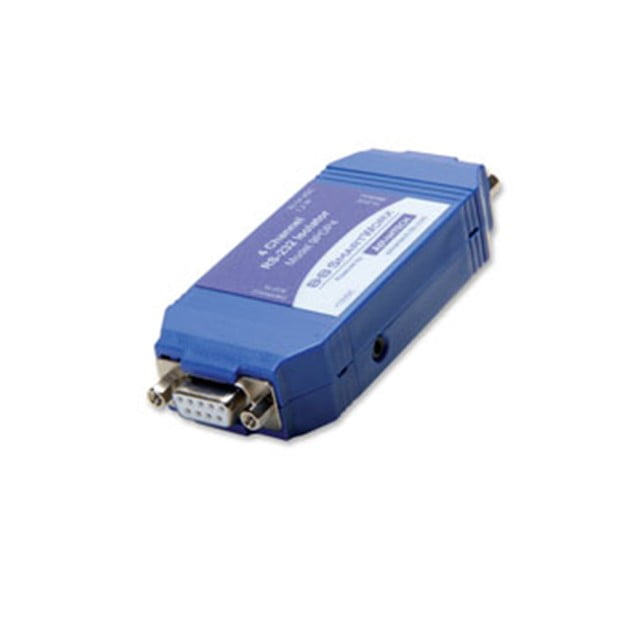

Advantech ULI-232DSH – RS-232 (DB9 Male /Female) Isolator (BB-9POP4)
- 2.5kV isolation
- 15kV ESD protection
- Data rate: 230.4 kbps
- Quick in-line installation
- 12 VDC Power supply required, sold separately
Deskripsi
| Category | Attribute | Value |
| General | Isolation | 2.5kV |
| General | Mounting | Inline |
| General | Power | 12VDC |
| General | Serial Type | RS-232 |
| General | Technology | Serial |
| General | Temperature | 0 to 70C |
| Power | Power Input (DC) | 12 VDC |
| Protection | ESD Protection | 8 kV (Air) |
| Protection | Isolation | 2,000 VDC |
| Serial Communication | Maximum Serial Transmission Speed | 230.4 Kbps |
| Serial Communication | Serial Port Connector Type | DB9 |
| Serial Communication | Serial Port Number | 1 |
| Serial Communication | Serial Standard | RS-232 |
| Environment | Temperature (Operating Range) | 0 ~ 70°C (32 ~ 158°F) |
| Accessory General | Mounting | Inline |
Informasi Tambahan
| Brand |
Advantech |
|---|
