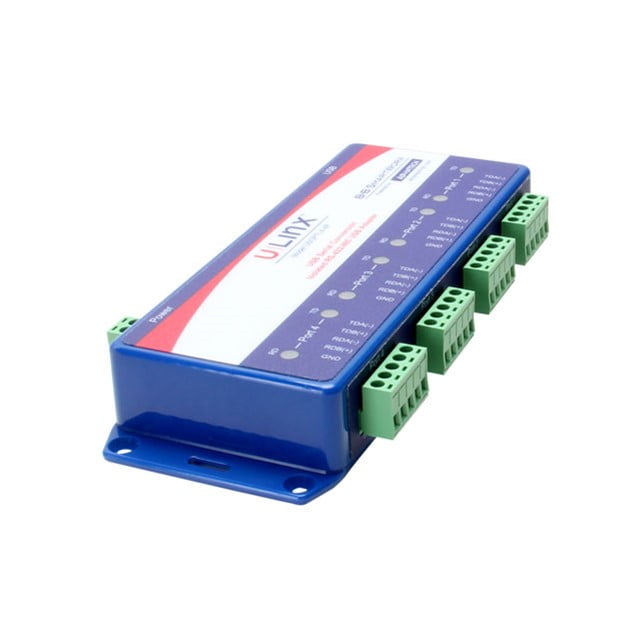

Advantech ULI-344TC – USB to RS-422/485 (Terminal Block) Isolated Converter 4 Port (BB-USOPTL4-4P)
- Connect multiple RS-422/485 devices to your USB port
- 2000 V optical isolation; 15 KV ESD surge protection
- RS-422/485 data rates up to 921.6 kbps
- USB: 12 Mbps, USB 2.0 (backward compatible)
- USB port-power or external source (power supply not included, sold separately)
- High retention USB ports hold connections securely
- Removable serial terminal blocks for easy wiring
- USB cable included, 1.8 m (6 ft)
Deskripsi
| Category | Attribute | Value |
| General | Isolation | 2kV |
| Mounting | Panel | |
| Power | Bus Powered | |
| Serial Connector | Terminal Block | |
| Serial Port Count | 4 | |
| Serial Type | RS-422, RS-485 | |
| Technology | USB | |
| Temperature | 0 to 70C | |
| Power | Power Input (DC) | 10 ~ 30 VDC |
| Power Input (USB) | Port-Powered from USB host (5 VDC) | |
| Protection | Isolation | 2,000 VDC |
| Serial Communication | Maximum Serial Transmission Speed | 921.6 Kbps |
| Serial Port Connector Type | Terminal block | |
| Serial Port Number | 4 | |
| Serial Standard | RS-422 / RS-485 | |
| Environment | Temperature (Operating Range) | 0 ~ 70°C (32 ~ 158°F) |
| Accessory General | Mounting | Panel |
| Upstream USB Port | Connector Type | Type B (Female) High Retention |
| Maximum Transfer Rate | Full-Speed (12 Mbps) | |
| Port Number | 1 | |
| Standard | USB 2.0 |
Informasi Tambahan
| Brand | Advantech |
|---|
