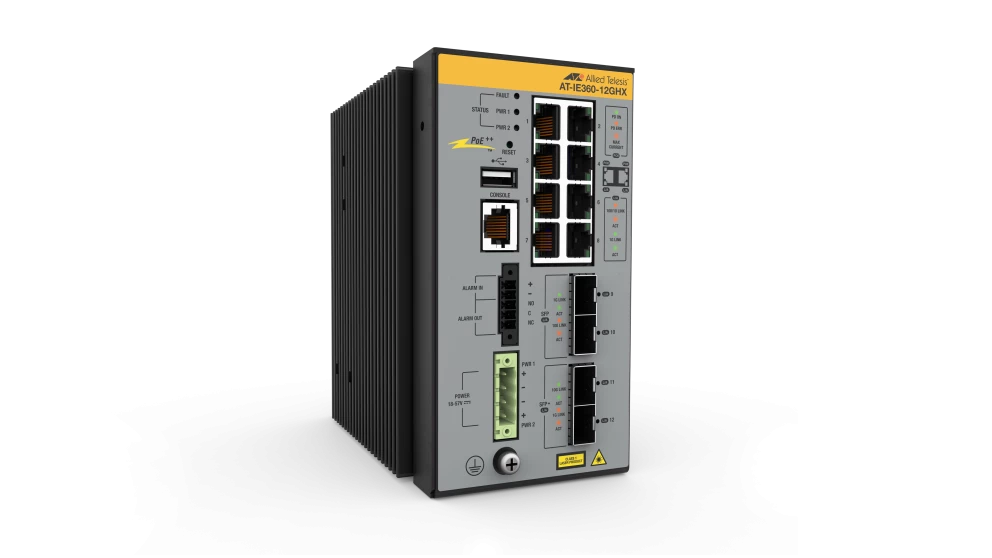

Allied Telesis AT-IE360-12GHX-980 8x 10/100/1000T, 2x 100/1000X SFP, 2x 1G/10G SFP+, Industrial Ethernet, Layer 3 Switch, PoE++ Support (TAA compliant) ( AT-IE360-12GHX-980)
Rp52.377.570
Deskripsi
Specifications
| Product | 10/100/1000T (RJ-45) Copper Ports | 100/1000X SFP Ports | 1/10G SFP+ Ports | Total Ports | PoE Enabled Ports | Switching Fabric | Forwarding Rate |
|---|---|---|---|---|---|---|---|
| IE360-12GHX | 8 | 2 | 2 w/ MACsec | 12 | 8 | 60Gbps | 44.6Mpps |
| IE360-12GTX | 8 | 2 | 2 w/ MACsec | 12 | – | 60Gbps | 44.6Mpps |
Physical
| Product | Width x Depth x Height | Weight | Enclosure | Mounting | Protection Rate |
|---|---|---|---|---|---|
| IE360-12GHX | 91 x 158 x 153 mm (3.58 x 6.23 x 6.02 in) |
DIN rail: 2.2 kg (4.88 lbs) Wall mount: 2.1 kg (4.64 lbs) |
Aluminium/Stainless Steel Sheet Metal shell |
DIN rail, wall mount | IP30 |
| IE360-12GTX | 91 x 158 x 153 mm (3.58 x 6.23 x 6.02 in) |
DIN rail: 2.1 kg (4.64 lbs) Wall mount: 2.06 kg (4.54 lbs) |
Aluminium/Stainless Steel Sheet Metal shell |
DIN rail, wall mount | IP30 |
Power Characteristics
| Product | Input Voltage | Cooling | No PoE Load Max Power Consumption | No PoE Load Max Heat Dissipation | No PoE Load Noise | Full PoE Load(1) Max Power Consumption | Full PoE Load(1) Max Heat Dissipation | Full PoE Load(1) Noise |
|---|---|---|---|---|---|---|---|---|
| IE360-12GHX | 18~57V DC(2) | Fanless | 29.9W | 102.0 BTU/hr | – | 406.5W | 158.7 BTU/hr | – |
| IE360-12GTX | 18~57V DC | Fanless | 25.0W | 85.3 BTU/hr | – | – | – | – |
(1) The Max Power consumption at full PoE load includes the powered device’s consumption and margin. The cooling requirements of the switch are smaller than the power draw, because most of the load is dissipated at the PoE powered device and along the cabling. Use these wattage and BTU ratings for facility capacity planning.
(2) Note: PoE sourcing requires the input voltage ≥ 36V DC
Power over Ethernet Sourcing Characteristics
| Product | Enabled PoE Ports PoE | Max PoE Power Budget(3) | Max PoE Sourcing Ports PoE (15W) | Max PoE Sourcing Ports PoE+ (30W) | Max PoE Sourcing Ports PoE++ (60W) | Max PoE Sourcing Ports PoE++ (95W) |
|---|---|---|---|---|---|---|
| IE360-12GHX | 8 | 360W | 8 | 8 | 6 | 3 |
| IE360-12GTX | – | – | – | – | – | – |
(3) The PoE power budget is shared among all ports; we recommend configuring dynamic PoE power allocation to optimize the power distribution.
Latency (microseconds)
| Product | 100Mbps Port Speed | 1Gbps Port Speed | 10Gbps Port Speed |
|---|---|---|---|
| IE360-12GHX | 10.98µs | 2.44µs | 1.62µs |
| IE360-12GTX | 11.02µs | 2.22µs | 1.62µs |
