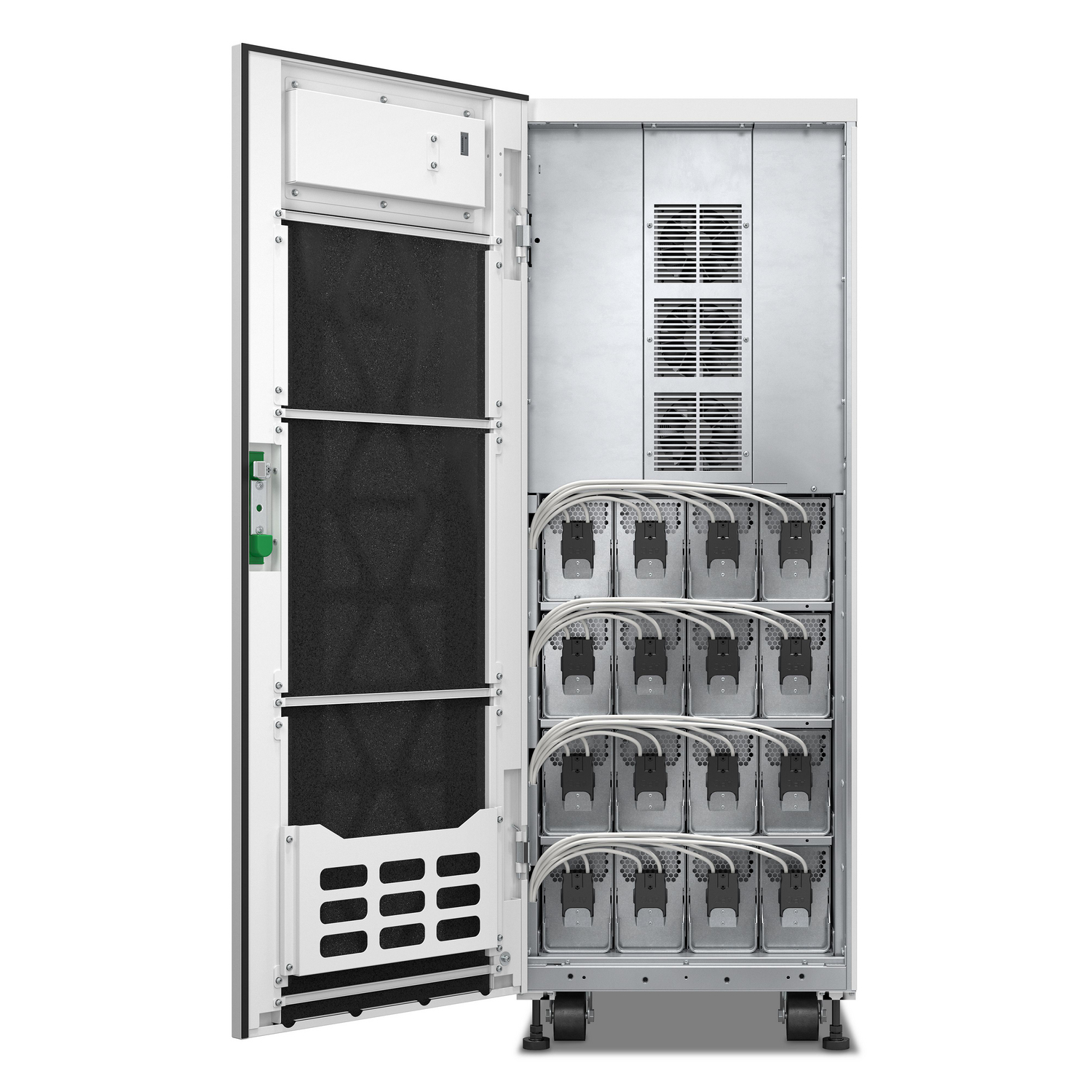

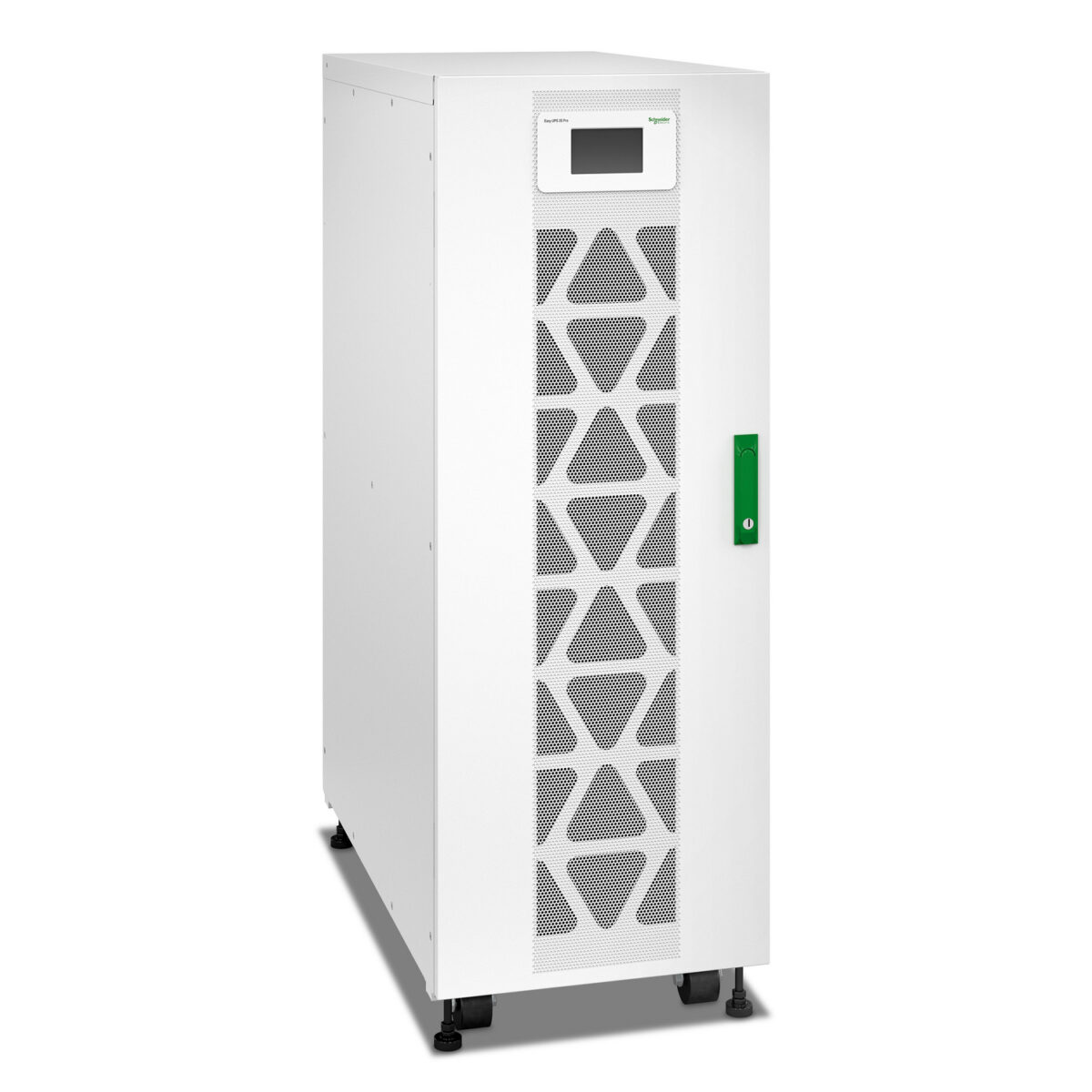

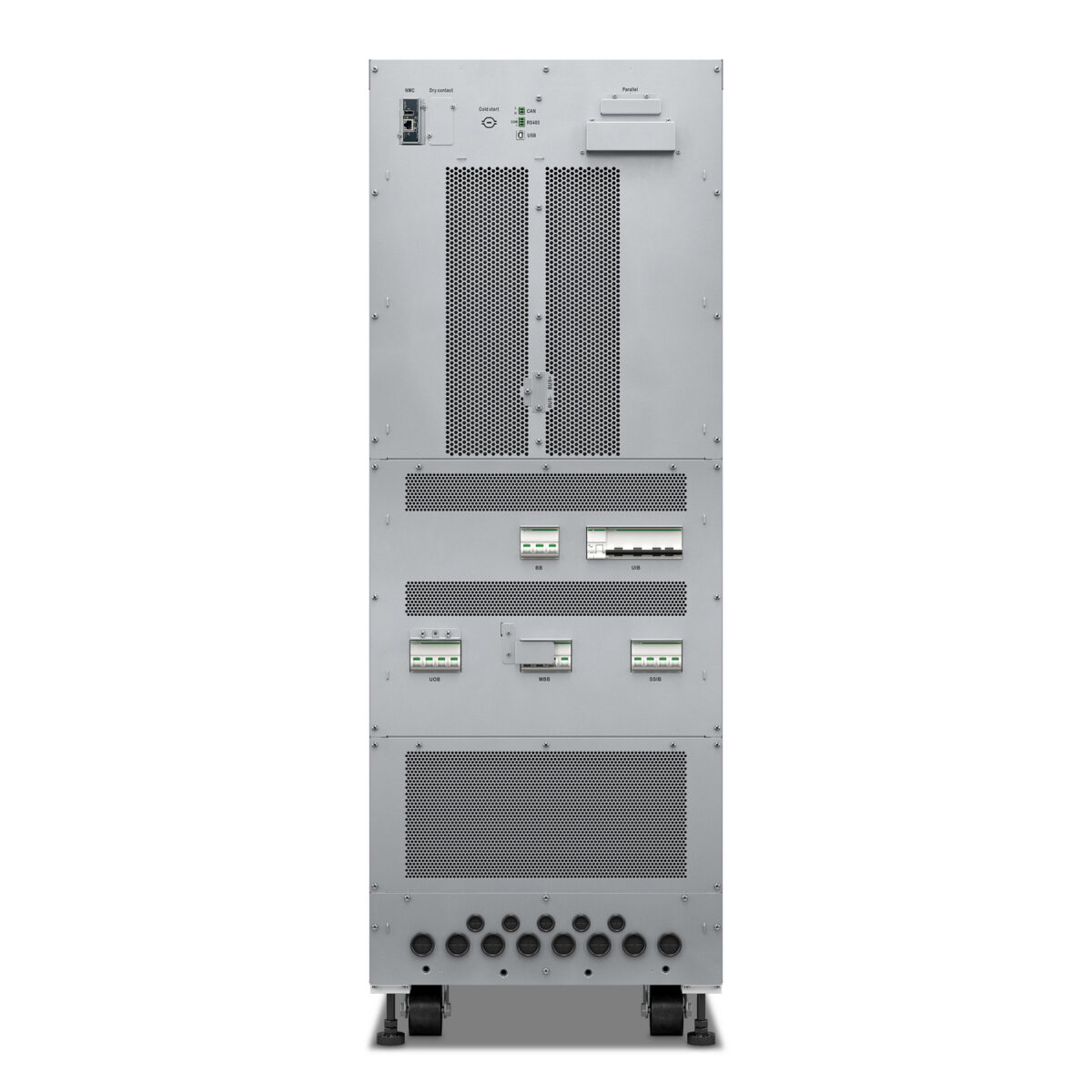

APC Easy UPS 3S Pro 40kVA 400V 3:3 UPS for internal batteries
Rp125.541.000
Deskripsi
| Main input voltage | 400 V 3 phases 380 V 3 phases 415 V 3 phases |
|---|---|
| Maximum input current | 61 A |
| Max short time withstand current | 16 kA |
| Input harmonic distortion | Less than 3 % for full load |
| Load power factor | From 0.7 leading to 0.7 lagging without any derating |
| Input connection | hard wire |
| Input frequency | 40…70 Hz |
| Output voltage | 400 V 3 phases 380 V 3 phases 415 V 3 phases |
| Rated power in W | 40 kW |
| Rated power in VA | 40 kVA |
| Output connection | Hard wire |
| Crest factor | 3 : 1 |
| Maximum configurable power in VA | 40 kVA |
| Maximum configurable power in W | 40 kW |
| Output harmonic distortion | < 1% linear load and < 5% non-linear load |
| Output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| Output voltage tolerance | +/- 10% |
| UPS topology | Double conversion online |
| Output frequency | 50/60 Hz |
| Battery type | Lead-acid internal |
|---|---|
| Control panel | Touch screen LCD user interface |
| UPS connectivity | Pre-installed network management card 3 |
| Color | White |
| Height | 140 cm |
| Width | 50 cm |
| Depth | 94 cm |
| Product weight | 151 kg |
| Provided equipment | Dust filter Installation manual |
| Redundant | No |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certification | EN/IEC 62040-1 EN/IEC 62040-2 EN/IEC 62040-3 ISTA 2B |
|---|---|
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -25…55 °C |
| IP protection | IP20 |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 63 dB |
| Heat dissipation | 6164 Btu/h |
| Operating altitude | 0…1000 m |
| Discharge battery voltage | 384 V |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 140 cm |
| Package 1 Width | 50 cm |
| Package 1 Length | 94 cm |
| Package 1 Weight | 180 kg |
