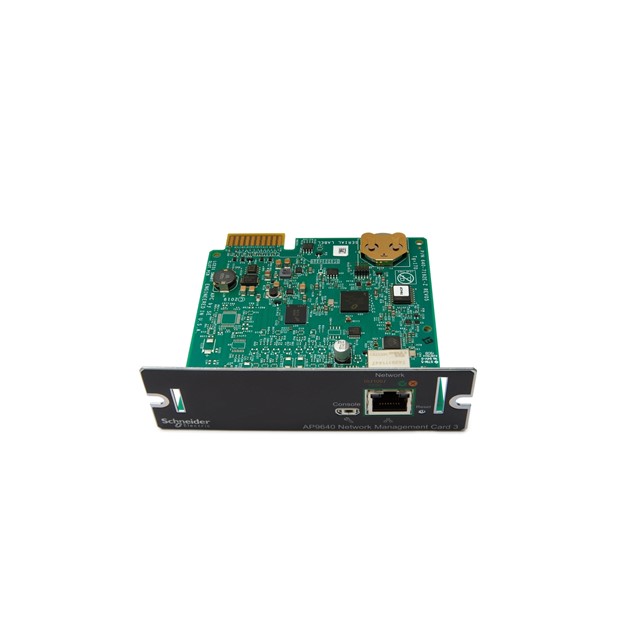

APC UPS Network Management Card 3
Rp6.604.417
APC Easy UPS On-Line SRV SNMP Card
Rp3.979.581
APC Smart-UPS On-Line, 10kVA/10kW, Rack/Tower, 230V (SRTG10KXLI)
Rp117.095.825
Deskripsi
Spesifikasi APC Smart-UPS On-Line, 10kVA/10kW, Rack/Tower, 230V
| Lead time | Usually in Stock |
|---|
|
Kapasitas Maks. Digunakan
information_stroke
|
100 % |
|---|---|
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| rated power in W | 10000 W |
| Rated power in VA | 10000 VA |
| output connection type | 2 IEC 60320 C13 1 IEC 60320 C19 |
| Output connector type | Hard wire 3-wire (H N + E) 1 |
| Battery type | Lead-acid battery |
| Provided equipment | Smart UPS signalling RS-232 cableUser manual |
| Run-time | View Runtime Graph
action_new_window
|
|---|---|
| Efisiensi | View Efficiency Graph
action_new_window
|
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Number of battery replacement quantity | 2 |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Battery voltage | +/- 96 V |
| Battery charger power | 431 W rated |
| Battery power in VAH | 1772 VAh runtime |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC174
action_new_window
|
| Battery option | SRTG192XLBP4 1 3564 VAh SRTG192XLBP4 2 5415 VAh SRTG192XLBP4 3 7378 VAh SRTG192XLBP4 4 9216 VAh |
| Extended runtime | 1 |
| Network frequency | 40…70 Hz auto-sensing |
|---|---|
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| Input voltage limits | 160…285 V |
| Maximum input current | 30 A |
| Max short time withstand current | 40 kA |
| Maximum configurable power in W | 10000 W |
|---|---|
| Harmonic distortion | Less than 2 % |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Crest factor | 3 : 1 |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| bypass type | Internal bypass (automatic and manual) |
| Full load runtime | 00:03:30 10000 W |
| Half load runtime | 00:11:00 5000 W |
| Maximum configurable power in VA | 10000 VA |
