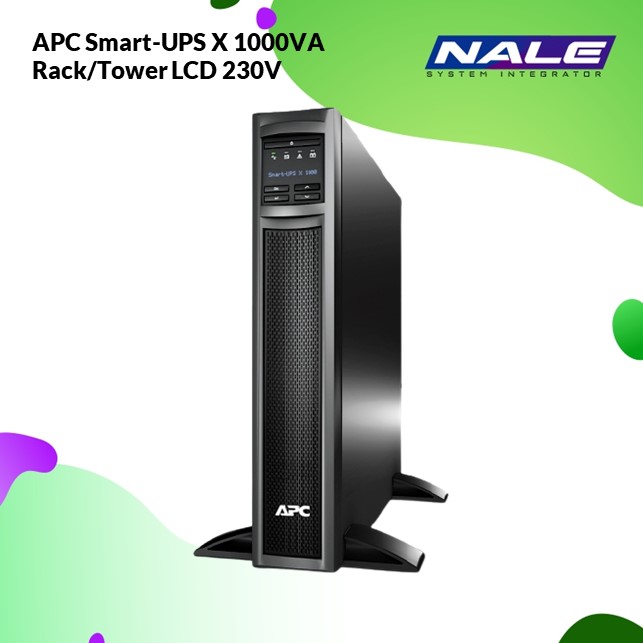

APC Smart-UPS X 1000VA Rack/Tower LCD 230V (SMX1000I)

Rp17.101.768

  • PF: 0.8
  • Back up time Full Load: 8,1 min (800watt)
  • Output power capacity : 800 Watts / 1.0kVA
  • Rack Height: 2U
  • Output Connections :
    (8) IEC 320 C13 (Battery Backup)
    (2) IEC Jumpers (Battery Backup)
  • Nominal Output Voltage : 230V
  • Nominal Input Voltage : 230V
  • Input Connections : IEC 320 C14
  • Includes: CD with software, Documentation CD, Installation guide, Rack mounting brackets, Removable support feet, Smart UPS signalling RS-232 cable, USB cable
SKU: SMX1000I Kategori: , , Tag: ,
Deskripsi

Deskripsi APC Smart-UPS X 1000VA Rack/Tower LCD 230V (SMX1000I)

Spesifikasi singkat:

Output
Max Configurable Power (Watts) 800 Watts / 1.0kVA
Output Voltage Distortion Less than 5 %
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz Sync to mains
Topology Line interactive
Waveform type Sine wave
Input
Input frequency 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations 151 – 302 Adjustable, 160 – 286V
Other Input Voltages 220, 240
Batteries & Runtime
Battery type Lead-acid battery
Typical recharge time 3hour(s)
Replacement Battery APCRBC116
Expected Battery Life (years) 3 – 5
RBC Quantity 1
Battery Charge Power (Watts) 99 Watts
DC Overcurrent Protection 60A
Extended Run Options APC-Smart-UPS-X-1000VA-Rack-Tower-LCD-230V
Communications & Management
Interface Port(s) RJ-45 Serial, SmartSlot, USB
Control panel Multifunction LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) Yes
Available SmartSlot™ Interface Quantity 1
Surge Protection and Filtering
Surge energy rating 600Joules
Filtering Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height 89MM, 8.9CM
Maximum Width 432MM, 43.2CM
Maximum Depth 490MM, 49.0CM
Net Weight 22.86KG
Conformance
Approvals CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Standard warranty 3 years repair or replace (excluding battery) and 2 years for battery

APC Smart-UPS_SMX1000I-Datasheet.pdf
