Seri Switch Aruba 2930M dirancang untuk pelanggan menciptakan tempat kerja digital pintar yang dioptimalkan untuk pengguna seluler dengan pendekatan kabel dan nirkabel terintegrasi. Switch jaringan Layer 3 ini mudah digunakan dan kelola dengan keamanan tingkat lanjut dan manajemen jaringan alat seperti Aruba ClearPass Policy Manager dan Aruba AirWave dan Aruba Central berbasis cloud.

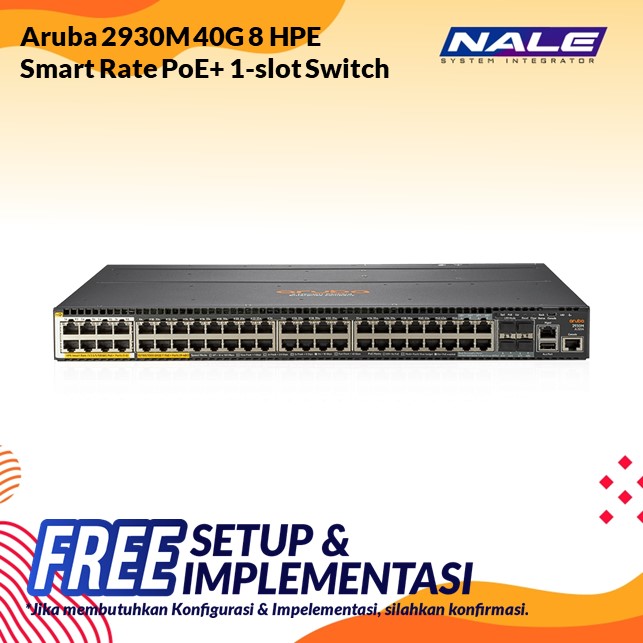

Aruba 2930M 40G 8 HPE Smart Rate PoE+ 1-slot Switch (JL323A)
Rp145.929.504
- Aruba Layer 3 Switch with 10 chassis backplane stacking, static, RIP and access OSPF routing, Dynamic Segmentation, ACLs, SDN, and robust QoS
- Advanced security and network management via Aruba ClearPass Policy Manager, Aruba AirWave and Aruba Central
- Software defined ready with REST APIs and OpenFlow support
- Simple deployment with Zero Touch Provisioning
Deskripsi
Aruba 2930M 40G 8 HPE Smart Rate PoE+ 1-slot Switch (JL323A)
Spesifikasi singkat:
| I/O ports and slots | · 36 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T PoE+); Duplex: 10BASE-T/100BASE-TX:half or full;1000BASE-T:full only
· 4 Combo 10/100/1000BASE-T PoE+ or 100/1000Mbps SFP Ports · 8 802.3bz 100M, 1/2.5/5GBaseT and 10GbaseT copper PoE+ ports |
| Additional ports and slots | · 1 Dual Personality (RJ-45 or USB Micro-B) serial console port
· 1 USB A port for uploading/ downloading files · 1 100BASE-T Out of Band Management Port · 1 Uplink Slot · 1 Stacking Module Slot · 2 Power Supply Slots (power supplies not included) |
| Memory and processor | Dual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM, Packet Buffer Size: 12.38MB and 4.5MB Ingress/7.875MB Egress, 4GB eMMC |
| Latency | · 10 Mbps : < 98.5µs (FIFO 64 byte packets)
· 100 Mbps : < 11.8 μs (64-byte packets) · 1000 Mbps : < 3.1 µs (FIFO 64-byte packets) · 2.5 Gbps : < 6.5µs (FIFO 64-byte packets) · 5 Gbps : < 4.2µs (FIFO 64-byte packets) · 10 Gbps Latency : < 3.4µs (FIFO 64-byte packets) |
| Throughput | 112 Mpps |
| Stacking Performance | 100 Gbps |
| Switching Capacity | 320 Gbps |
| Switching capacity (Including Stacking) | 420 Gbps |
| Maximum heat dissipation | 457 BTU/hr
482 kJ/hr |
| AC voltage | JL086A PSU: 100-127/200-240 VAC
JL087A PSU: 110-127/200-240 VAC |
| Maximum power rating | JL086A PSU (each): 495W
JL087A PSU (each): 855W |
| PoE power | 1440 Watts |
Informasi Tambahan
| Brand |
Aruba |
|---|
About brand
Aruba Networks, sebelumnya dikenal sebagai Aruba Wireless Networks, adalah anak perusahaan jaringan nirkabel Hewlett Packard Enterprise yang berbasis di Santa Clara, California. Perusahaan ini didirikan di Sunnyvale, California pada 2002 oleh Keerti Melkote dan Pankaj Manglik.
