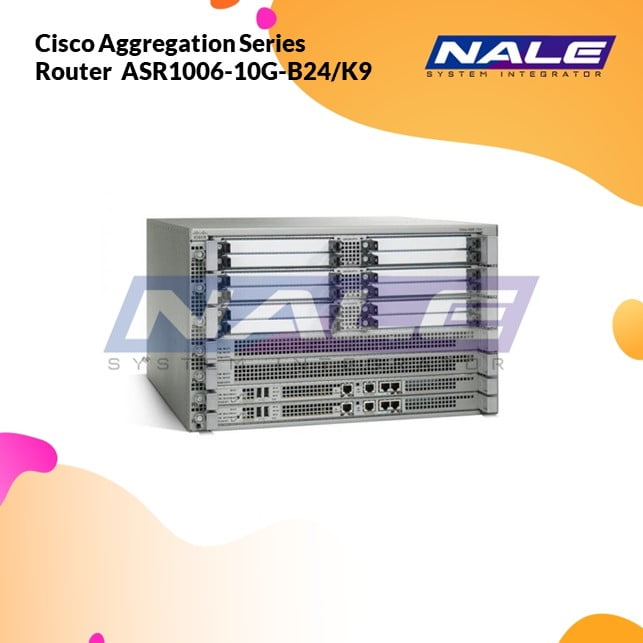

Cisco Aggregation Series Router ASR1006-10G-B24/K9

Rp3.003.660.000

Compare
Add to wishlist
SKU: ASR1006-10G-B24/K9 Kategori: , , Tag: ,
Deskripsi
General
Device Type Router – with 2 x Cisco ASR 1000 Series Embedded Services Processor, 10Gbps / 2 x Route Processor 1 / SPA Interface Processor 10G
Enclosure Type Desktop, rack-mountable – modular – 6U
Connectivity Technology Wired
Performance Bandwidth: 10 Gbps
Capacity Concurrent L2TP VPN tunnels: 12000 ¦ Concurrent sessions: 24000 ¦ IPSec VPN tunnels: 10000 ¦ NAT entries: 500000 ¦ ACL rules: 4000 ¦ QoS hardware entries: 128000
Remote Management Protocol SNMP, Telnet, SSH
Features VPN support, MPLS support, IPv6 support, Stateful switchover (SSO), MPLS VPN
Compliant Standards CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 60950-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1
RAM 8 GB
Expansion / Connectivity
Interfaces Management: 2 x 10Base-T/100Base-TX – RJ-45 ¦ Management: 2 x console – RJ-45 ¦ Management: 2 x auxiliary – RJ-45 ¦ USB: 1 x
Expansion Slots 2 (total) / 0 (free) x processor board ¦ 17 (total) / 14 (free) x expansion slot
Installed Modules Qty (Max) 5 (installed) / 19 (max)
Power
Power Device Internal power supply
Power Redundancy Yes
Installed Qty 2 (installed) / 2 (max)
Miscellaneous
Rack Mounting Kit Included
Software / System Requirements
OS Provided Cisco IOS Advanced IP services
Dimensions & Weight
Width 17.2 in
Depth 21.9 in
Height 10.5 in
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 90%



cisco-asr1000-aggregation-routers-2.pdf
