Cisco ASA 5525-X Adaptive Security Appliance
Rp156.080.430
Cisco ASA 5506-X with FirePOWER Services
Rp28.864.440

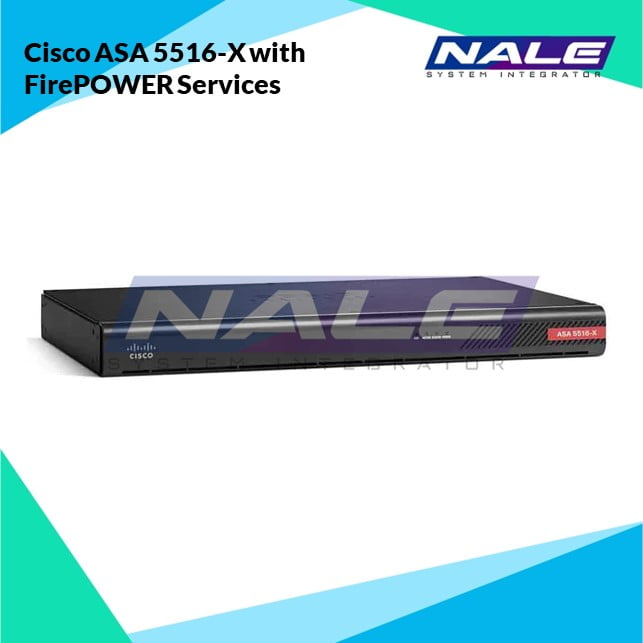

Cisco ASA 5516-X with FirePOWER Services
Rp158.278.230
Deskripsi
Dimensions (H x W x D)
1.72 x 17.2 x 11.288 inches (4.369 x 43.688 x 28.672 cm)
Serial ports
1 RJ-45 and Mini USB console
Power input (per power supply) AC current
0.25AC amps
Integrated I/O
8 x 1 GE
Memory
8 GB
Dual power supplies
Not Available
High-availability support
Active/active and active/standby
Maximum AVC and NGIPS throughput
600 Mbps
Cisco Cloud Web Security users
2000
Operating Acoustic Noise
41.6 A-weighted decibels (dBA) type, 67.2 dBA max
Maximum application visibility and control (AVC) throughput
850 Mbps
Maximum 3DES/AES VPN throughput
250 Mbps
Maximum site-to-site and IPsec IKEv1 client VPN user sessions
300
Output steady state
12V @ 3.0A
Maximum Cisco AnyConnect IKEv2 remote access VPN or clientless VPN user sessions
300
Solid-state drive
100 GB mSata
Form factor
1 rack unit (RU), 19-in. rack-mountable
Packets per second (64 byte)
750000
Maximum heat dissipation
123 BTU/hr
Weight
8 lb (3 kg) with AC power supply
VLANs
100
Application control (AVC) or NGIPS sizing throughput (440-byte HTTP)
300 Mbps
Maximum new connections per second
20000
Dedicated management port
Yes (To be shared with with FirePOWER Services), 10/100/1000
Expansion I/O
Not Available
Weight (with AC power supply)
8 lb (3 kg)
Stateful inspection throughput (max)
1.8 Gbps
Output Maximum Peak
12V @ 5.0A
USB 2.0 Ports
USB port type �A�, High Speed 2.0
Minimum system flash
8 GB
Stateful inspection throughput (multiprotocol)
900 Mbps
Power
AC Only
Maximum concurrent sessions
250000
DataSheet ASA5516-FPWR-K9.pdf
