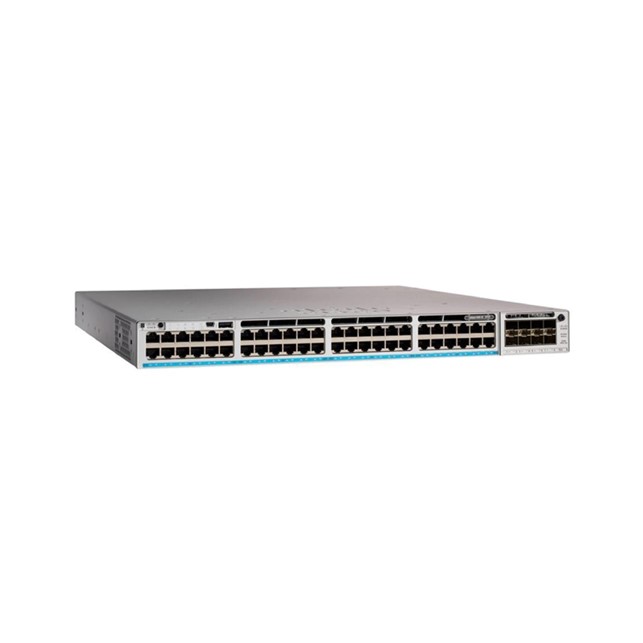

Cisco Catalyst 9300 48-port UPoE+, Network Advantage (C9300-48H-A)
Cisco Catalyst 9300 48-port UPoE+, Network Advantage (C9300-48H-A) Rp207.958.500

Cisco Catalyst 9300 48-port UPOE Deep Buffer, Network Advantage (C9300-48UB-A)

Rp236.962.800

Add to compare
Add to wishlist
SKU: C9300-48UB-A Kategori: , , Tag: ,
Deskripsi

C9300-48UB-A Specification
Product Description Catalyst 9300 higher scale 48-port modular uplinks 1G UPOE, Network

Advantage
FRU Power Supply Yes
FRU Fans Yes
Modular Uplinks Yes
Cisco StackPower Yes
Stacking Bandwidth Support 480 Gbps
Catalyst 9800 Embedded WLC Yes (200 APs)
SD-Access Support Yes (256 Virtual Networks)
Uplink Configuration Modular Uplinks
Default AC power supply 1100W AC
Available PoE power 822W
Total number of MAC addresses 64,000
Total number of IPv4 routes (ARP plus learned routes) 64,000
IPv6 routing entries 32,000
Multicast routing scale 16,000
QoS scale entries 18,000
ACL scale entries 18,000
Packet buffer per SKU 32 MB buffer for 24- and 48-port Gigabit Ethernet models

64 MB buffer for 24-port Multigigabit model (24UXB)


FNF entries 128,000 flow on 24- and 48-port Gigabit Ethernet models

256,000 flows on 24-port Multigigabit
DRAM 8 GB
Flash 16 GB
Switching capacity 256 Gbps
Switching capacity with stacking 736 Gbps
Forwarding rate 190.48 Mpps
Forwarding rate with stacking 547.62 Mpps
Dimensions (H x W x D) inches Chassis only: 1.73 x 17.5 x 16.1

W/ Default Power Supply: 1.73 x 17.5 x 19.2

W/ 1100W Power Supply: 1.73 x 17.5 x 19.2
Cisco-Catalyst-9300-series-datasheet.pdf
