Click to enlarge

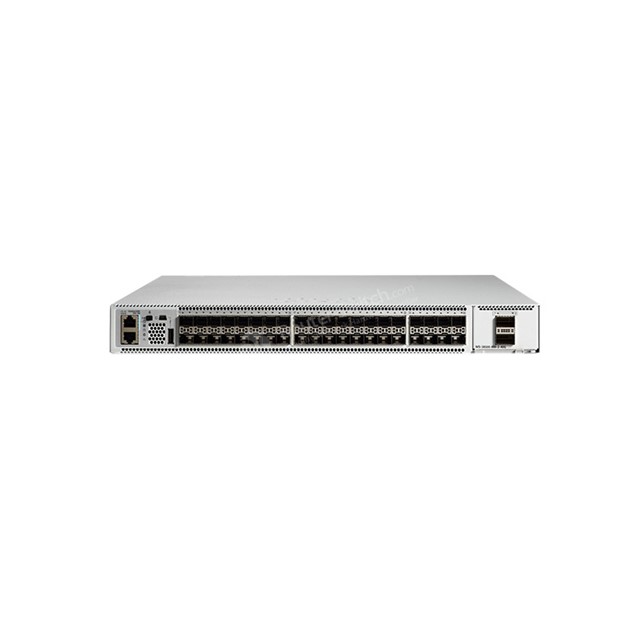

Cisco Catalyst 9500 24-port 40G switch, Network Essentials (C9500-24Q-E)
Cisco Catalyst 9500 24-port 40G switch, Network Essentials (C9500-24Q-E) Rp579.020.400
Back to products
Cisco Catalyst 9500 12-port 40G switch, Network Essentials (C9500-12Q-E)
Cisco Catalyst 9500 12-port 40G switch, Network Essentials (C9500-12Q-E) Rp448.617.600

Cisco Catalyst 9500 24-port 40G switch, Network Advantage (C9500-24Q-A)

Rp579.020.400

Add to compare
Add to wishlist
SKU: C9500-24Q-A Kategori: , , Tag:
Deskripsi

C9500-24Q-A specifications

Performance specifications
Switching capacity Up to 1920 Gbps
Forwarding rate Up to 1440 Mpps
Total number of MAC addresses Up to 64,000*
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) Up to 64,000 indirect*

Up to 32,000 host*
Total number of IPv6 routes Up to 32,000 indirect*

Up to 16,000 host*
Multicast scale Up to 48,000*
QoS ACL scale Up to 18000*
Security ACL scale Up to 18000*
FNF entries Up to 512,000*
DRAM 16 GB
Flash 16 GB
VLAN IDs 4000
Total Switched Virtual Interfaces (SVIs) 4000
Jumbo frame 9198 bytes

Power supply specifications
Power Supply Feature Support in the Catalyst 9500 Series
AC power max rating 950W
System power consumption 850W max
Input-voltage range and frequency AC 115 to 230 VAC, 50 to 60 Hz
Power supply efficiency 94%
Total output BTU (Note: 1000 BTU/hr = 293W) 2901 BTU/hr (850W) max
Input current AC 10A at 115VAC, 5 A at 230VAC
Output ratings 12V at 79A, 12V at 3A
Output holdup time AC = 10 ms at maximum load
Power-supply input receptacles AC IEC 60320 C16
Power cord rating AC 15A

Dimensions, physical specifications, and MTBF
Description Specifications
Dimensions (H x W x D) 1.73 x 17.5 x 21.52 in
Rack units (RU) 1 RU
Input voltage 90 to 264 VAC
Operating temperature 32°F to 104°F (0° to 40°C)
Storage temperature -4° to 149°F (-20° to 65°C)
Relative humidity operating and nonoperating noncondensing Ambient (noncondensing) operating: 5% to 90%

Ambient (noncondensing) nonoperating and storage: 5% to 95%
Altitude Operation up to 6000 ft
MTBF (hours) 127,660
Cisco Catalyst 9500 series datasheet.pdf
