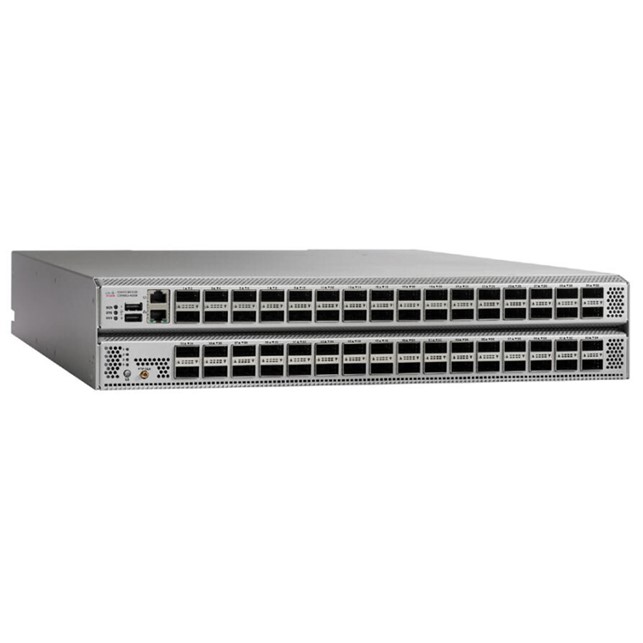

Cisco Nexus 3164Q, 64 QSFP+ ports, 2RU switch (N3K-C3164Q-40GE)
Rp421.777.800
Deskripsi
N3K-C3164Q-40GE Specification |
||
| Physical | · 2 RU fixed form-factor switch
· 64 QSFP+ ports; each supports native 40 Gigabit Ethernet and 4 x 10 Gigabit Ethernet modes · 2 redundant power supplies · 3+1 redundant fans · Management, console, and USB flash-memory ports |
|
| Performance | · 5.12 Tbps switching capacity
· Forwarding rate up to 3.8 bpps · Line-rate traffic throughput (both Layer 2 and 3) on all ports · Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames) |
|
| Hardware tables and scalability | Number of VLANS | MSTP: 4096 |
| Number of spanning-tree instances | MSTP: 64
RPVST+: 507 |
|
| Number of access control list (ACL) entries | 4000 to 16000 ingress
1000 to 4000 egress |
|
| Routing table | Maximum number of longest prefix match (LPM) routes 128,000
Maximum number of IP host entries 120,000 Maximum number of MAC address entries 96,000 |
|
| Number of EtherChannels | 256 | |
| Number of ports per EtherChannel | 32 | |
| Buffer size | 48 MB shared | |
| System memory | 16 GB | |
| Power | Frequency | 50 to 60 Hz |
| Power supply types | AC | |
| Typical operating power | 803 Watts (W) with SR4 optics at 100% load; 2 PSUs | |
| Maximum power | 1100 Watts (W) | |
| AC PSUs
· Input voltage · Frequency · Efficiency |
· 200 to 240 VAC · 50 to 60 Hz · 93% at 220V |
|
| Typical heat dissipation | 2739 BTU/hr (with SR4 optics at 100% load) | |
| Maximum heat dissipation | 3753 BTU/hr | |
| Cooling | Port-side intake and port-side exhaust options
Port-side intake: Yes Port-side exhaust: Post FCS |
|
