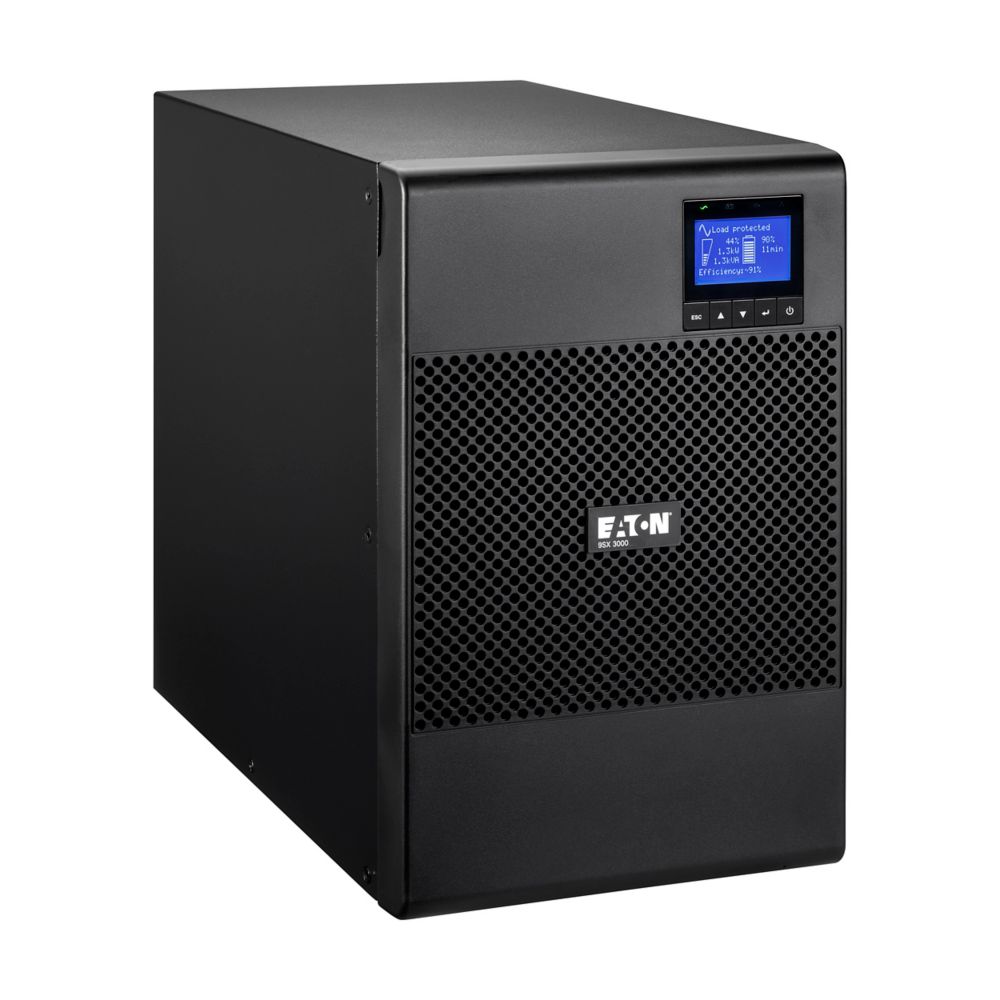

EATON 9SX3000I-3000VA/2700W, TOWER, 120V (C/W 8 PCS BATTERY INTERNAL / UPS) (9SX3000I)
Rp59.723.550
Deskripsi
Spesifikasi Umum
| Product Name |
Eaton 9SX UPS
|
| Catalog Number |
9SX3000I
|
| UPC |
743172090997
|
| Product Length/Depth |
412 mm
|
| Product Height |
346 mm
|
| Product Width |
214 mm
|
| Product Weight |
33.4 kg
|
| Compliances |
CE Marked
TUV cULus Listed CSA 22.2 FCC part 15 Class B CISPR22 Class B |
| Certifications |
IEC/EN 62040-1
UL 1778 IEC/EN 62040-2 CE cULus Listed EAC |
Spesifikasi Produk
| Special features |
|
| Topology |
Online/Double-conversion
|
| Construction type |
Free standing model
|
| Color |
Black
|
| VA rating |
3000 VA
|
| Wattage |
2700 W
|
| Rack mounting kit |
No
|
| Package contents |
|
| Internal bypass |
Yes
|
| Hot swap power |
No
|
| Auto shutdown function |
Yes
|
| Primary frequency – max |
70 Hz
|
| Primary frequency – min |
40 Hz
|
| Input connection |
C20
|
| Input cord length |
1.8m
|
| Input nominal voltage |
230V default (200/208/220/230/240/250V)
|
| Nominal frequency |
50/60 Hz
|
| Input frequency range |
40-70 Hz
|
| Input power factor |
>.99
|
| Receptacle |
(8) C13, (1) C19
|
| Number of Outputs C13 |
8
|
| Number of Outputs C19 |
1
|
| Output waveform |
Sine wave
|
| Voltage |
230V
|
| Output nominal voltage |
230V default (200/208/220/230/240V)
|
| Feed type |
1
|
| Voltage type |
AC
|
| Runtime graph | |
| Battery management |
|
| Battery replacement |
Hot-swappable internal batteries and extended battery modules (EBMs)
|
| Battery rating |
12 V / 9 Ah
|
| Battery type |
Sealed, lead-acid
|
| Extended battery capability |
Yes
|
| Runtime at half load |
15.5 min
|
| Communication |
|
| Expansion slots |
One slot for optional communication card
|
| Ethernet interface |
No
|
| Includes network card |
No
|
| Software compatibility |
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
|
| User interface |
Multilingual graphical LCD display
|
| Type of interface |
Other
|
| Potential free switch contact |
Yes
|
| Altitude |
3000 m
|
| BTU Rating |
Online: 818
|
| Noise level |
<45 dB at 1 meter
|
| Relative humidity |
0-96% non-condensing
|
| Temperature range |
0° to 40°C (32° to 104°F)
|
| Input voltage – max |
276 V
|
| Input voltage – min |
140 V
|
| Output voltage – max |
240 V
|
| Output voltage – min |
200 V
|
| Secondary frequency – max |
60 Hz
|
| Secondary frequency – min |
50 Hz
|
| Battery quantity |
8
|
| Efficiency at max. load |
92.4
|
| Efficiency (eco-mode) |
97.4
|
| Input voltage range |
200-276 Vac without derating (up to 140-276 Vac with derating)
|
| Max number of battery packs |
4
|
| Output frequency |
50/60 Hz
|
| Output power factor |
0.9
|
| Output voltage range |
200/208/220/230/240 V +/- 2%
|
| Phase (input) |
1
|
| Phase (output) |
1
|
| Runtime at full load |
6 min
|
| Voltage distortion output (linear load) – max |
3
|
| Power consumption |
240 W
|
