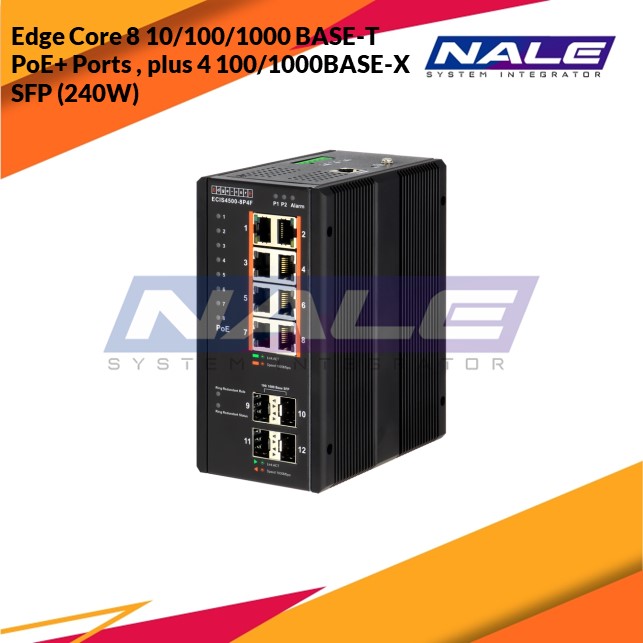

Edge Core 8 10/100/1000 BASE-T PoE+ Ports , plus 4 100/1000BASE-X SFP (240W) (ECIS4500-8P4F)
Rp19.766.589
- 8/4 10/100/1000BASE-TX PoE ports plus 4/2 100FX/1000BASE-F SFP slots
- IEEE 802.3af /IEEE 802.3at Power Over Ethernet Compliant
- Ultra PoE Supported (Only ECIS4500-8P2T4F for Port 1& 2)
- L2 Wire-speed Switching Engine
- Network redundant LACP, Spanning tree STP, RSTP & MSTP
- E-Ring Technology: fast ring fail-over protection (< 20 ms)
Deskripsi
Port |
RJ-45 10/100/1000BASE-T Ports | 8 |
| 100/1000BASE-X SFP Ports | 4 | |
| 10/100/1000 Combo Ports | 0 | |
| SFP+ 10 Gigabit Uplink Ports | 0 | |
| RJ-45 Console Port | 1 | |
Performance |
Switching Capacity | 24 Gbps |
| Forwarding Rate | 17.9 Mpps | |
| Flash Memory | 16 MB | |
| DRAM | 128 MB | |
| Throughput ( packet per second) | 14.8 Mpps | |
| MAC Address Table | 8K | |
| Jumbo Frames | 9 KB | |
| Auto-negotiation, Auto-MDI/MDIX | Yes | |
Power Supply |
DC Power Input (46-58 V) | Yes |
| Max System Power Consumption (Watts) | 265 W | |
PoE |
IEEE 802.3af/802.3at | Yes |
| Ultra PoE | No | |
| PoE Power Budget | 240 W | |
| PoE Scheduling | Yes |
ECIS4500 Series DatasheetKarena padatnya alur keluar-masuk barang, para pembeli wajib :
