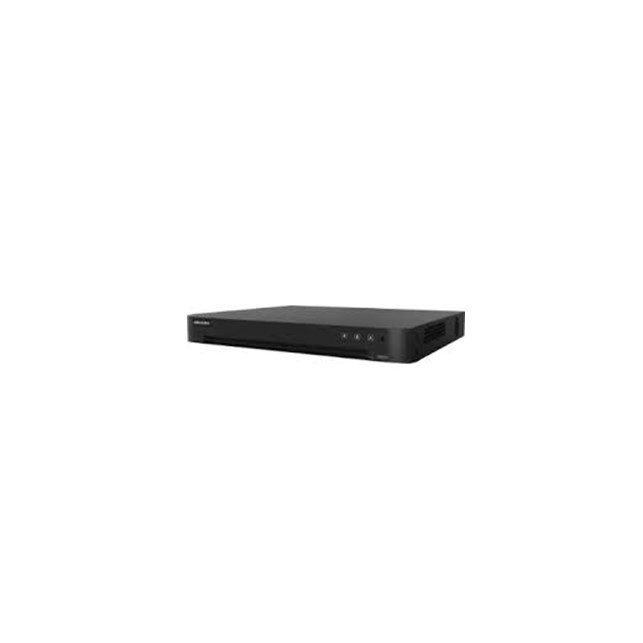

Hikvision 4-ch 5 MP 1U H.265 AcuSense DVR (iDS-7204HUHI-M2/S)

Recording

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  Main stream:

  8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

  1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.

  Sub-stream:

  WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrate: 32 Kbps to 10 Mbps
• Dual-Stream: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

Video And Audio

• IP Video Input

  2-ch (up to 6-ch)

  Up to 8 MP resolution

  Enhanced IP mode on:

  4-ch (up to 8-ch), each up to 4 Mbps

  Up to 8 MP resolution

  ;Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input: 4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDMI Output

  HDMI:

  1-ch, 2K (2560 × 1440)/60Hz,

  1920 × 1080/60Hz,

  1280 × 1024/60Hz,

  1280 × 720/60Hz

  VGA:

  1-ch, 1920 × 1080/60Hz,

  1280 × 1024/60Hz,

  1280 × 720/60Hz

  HDMI/VGA simultaneous output

• CVBS Input: PAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• Synchronous Playback: 4-ch
• HDTVI Input : 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
• AHD Input: 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• HDCVI Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Network

• Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection: 32
• Network Interface: 1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

• SATA: 2 SATA interface
• Capacity: Up to 10 TB capacity for each disk
• Serial Interface: RS-485 (half-duplex)
• USB Interface

  Front panel: 1 × USB 2.0

  Rear panel: 1 × USB 2.0

• Alarm In/Out: N/A
