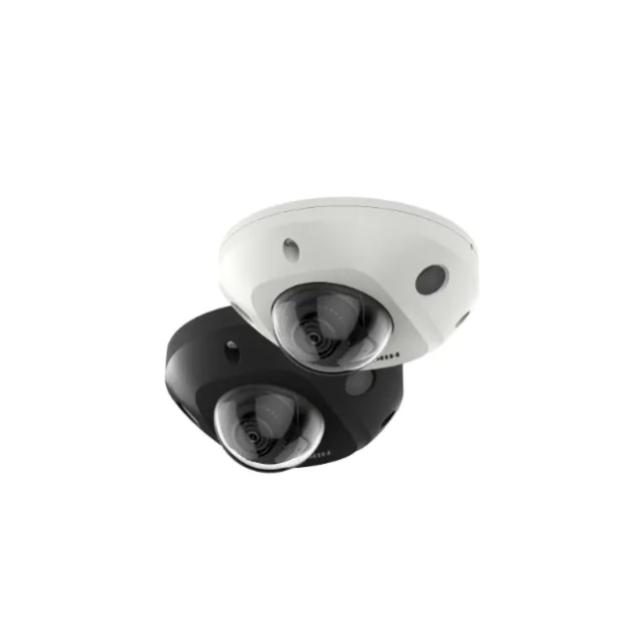

Deskripsi HikVision 4 MP Acusense Fixed Mini Dome Network Camera (DS-2CD2546G2-I)
| Camera |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Min. Illumination |
Color: 0.003 Lux @ (F1.4, AGC ON) |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Slow Shutter |
Yes |
| Wide Dynamic Range |
120 dB |
| Day & Night |
ICR Cut |
| Angle Adjustment |
Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens |
| Iris Type |
Fixed |
| Focal Length & FOV |
· 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°
· 4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98° |
| Aperture |
F1.4 |
| Lens Mount |
M12 |
| Iluminator |
| IR Range |
Up to 30 m |
| Wavelength |
850 nm |
| Network |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
| User/Host |
Up to 32 users,3 levels: Administrator, Operator and User |
| Client |
iVMS-4200, Hik-Connect, Hik-Central |
| Network Storage |
· MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
· Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Video |
| Max. Resolution |
2592 × 1944 |
| Main Stream |
· 50Hz: 20 fps (2592 × 1944)
· 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
· 60Hz: 20 fps (2592 × 1944), 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub Stream |
· 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
· 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream |
· 50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
· 60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) |
| Video Compression |
· Main stream: H.265/H.264
· Sub-stream: H.265/H.264/MJPEG
· Third stream: H.265/H.264 |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.265 Type |
Main Profile |
| H.264+ |
Main stream supports |
| H.265+ |
Main stream supports |
| Bit Rate Control |
CBR/VBR |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Region of Interest (ROI) |
Support 1 fixed region for main stream and sub-stream |
| Image |
| Day/Night Switch |
Day/Night/Auto/Schedule |
| Image Enhancement |
BLC/3D DNR/HLC |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| SNR |
≥ 52 dB |
| Deep Learning Function |
| Face Capture |
Yes |
| Perimeter Protection |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| Audio |
| Environment Noise Filtering |
Yes |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Interface |
| Built-in Microphone |
Yes |
| On-Board Storage |
Built-in micro SD slot, up to 256 GB |
| Hardware Reset |
Yes |
| Communication Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
DS-2CD2546G2-IWS-C_Datasheet_V5.5.115_20220607 (1)
