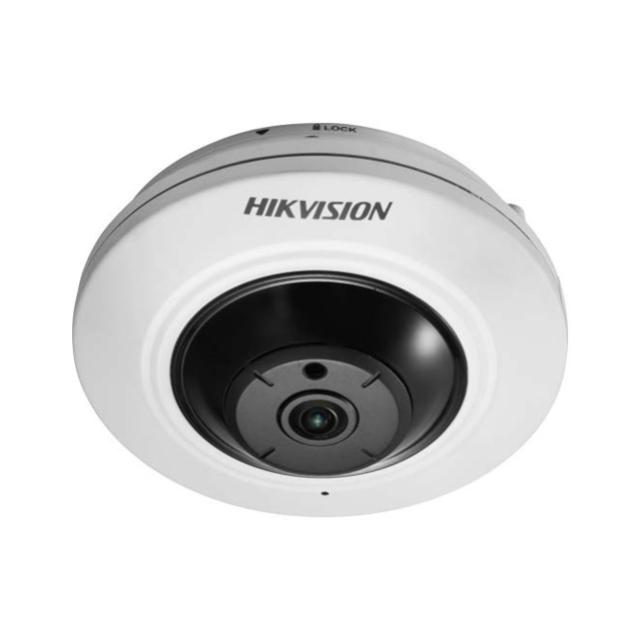

Deskripsi Hikvision Hikvision 5 MP Fisheye Fixed Dome Network Camera (DS-2CD2955FWD-IS)
| Camera |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Min. Illumination |
Color: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Slow Shutter |
Yes |
| Wide Dynamic Range |
120 dB |
| Day & Night |
IR Cut Filter |
| Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens |
| Focus |
Fixed |
| Lens Type |
1.05 mm @ F2.2, horizontal field of view: 180°, vertical field of view: 180° |
| FOV |
2.8 mm, horizontal field of view: 108°;4 mm, horizontal field of view: 86.4°;6 mm, horizontal field of view: 52°;8 mm, horizontal field of view: 41°;12 mm, horizontal field of view: 25° |
| Aperture |
F1.6 |
| Lens Mount |
M12 |
| Network |
| Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| User/Host |
Up to 32 users,3 levels: Administrator, Operator and User, |
| Client |
iVMS-4200, Hik-Connect, Hik-Central |
| Network Storage |
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Video |
| Max. Resolution |
2560 × 1920 |
| Main Stream |
50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960),60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960), |
| Sub Stream |
50Hz: 25fps (352× 288, 704 × 576),60Hz: 30fps (352 × 240, 704 × 576), |
| Third Stream |
50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240) |
| Video Compression |
Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG, |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Main Profile/High Profile |
| H.265 Type |
Main Profile |
| H.264+ |
Support |
| H.265+ |
Support |
| Region of Interest (ROI) |
Support 1 fixed region for main stream and sub-stream |
| Image |
| Day/Night Switch |
Auto/Schedule/Triggered by Alarm In (-S model supports) |
| Image Enhancement |
WDR/3D DNR/Backlight Compensation/Defog |
| Image Settings |
Saturation, brightness, contrast, and sharpness are adjustable via client software or web browser |
| Audio |
| Environment Noise Filtering |
Yes |
| Audio Sampling Rate |
16 kHz, 32kHz, 44.1kHz, 48kHz |
| Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM, 8kHz/16kHz/32kHz/44.1kHZ/48kHz
G.711/G.722.1/G.726/MP2L2/PCM, 8kHz/16kHz/32kHz/44.1kHZ/48kHz |
| Audio Bit Rate |
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
