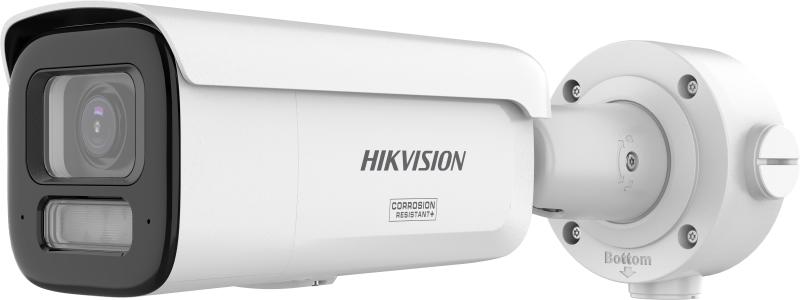

HikVision CCTV 8 MP Dual Illumination Motorized Varifocal Bullet Network [DS-2CD3686G3T-LIZSU(Y)]
Rp14.577.192
- HIK AI-ISP for excellent noise reduction effect
- 24/7 colorful imaging via Darkfighter 2.0 technology
- Scene-adaptive WDR
- Focus on Person and Vehicle classification based on deep learning
- Motorized varifocal lens for easy installation and monitoring
- -Y: Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
- Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
- Water and dust resistant (IP67) and vandal resistant (IK10)
Deskripsi
Spesifikasi :
| Spesifikasi | Keterangan |
|---|---|
| Nama Produk | Hikvision DS-2CD3686G3T-LIZSU(Y) |
| Tipe | 8 MP Smart Hybrid Light Motorized Varifocal Bullet Network Camera |
| Sensor Gambar | 1/1.8″ Progressive Scan CMOS |
| Resolusi Maksimum | 3840 × 2160 (8 MP) |
| Lensa | Motorized Varifocal 2.7–13.5 mm |
| Aperture | F1.2, Auto Iris |
| Sudut Pandang (FOV) | Horizontal 112.3°–41.2°, Vertikal 58.1°–23.1°, Diagonal 137.4°–47.3° |
| Pencahayaan Minimum | Color: 0.001 Lux @ F1.2 (AGC ON), 0 Lux dengan lampu bantu |
| Kecepatan Shutter | 1 detik hingga 1/100.000 detik |
| Day & Night | IR Cut Filter |
| Jarak Pencahayaan | Smart Hybrid Light (IR + White Light) hingga 60 meter |
| Teknologi Pencitraan | DarkFighter 2.0, HIK AI-ISP, Scene-adaptive WDR, 3D DNR, BLC, HLC, Defog, EIS |
| Kompresi Video | H.265+, H.265, H.264+, H.264, MJPEG |
| Frame Rate | Hingga 30 fps pada resolusi 3840 × 2160 (60 Hz) |
| Fitur AI | AcuSense (Human & Vehicle Classification), Perimeter Protection, Face Capture, People Counting |
| Audio | Built-in Dual Array Microphone, 1 Audio Input, 1 Audio Output |
| Alarm | 2 Alarm Input, 2 Alarm Output |
| Penyimpanan | Slot microSD/microSDHC/microSDXC hingga 512 GB |
| Antarmuka Jaringan | 1 × RJ45 10/100 Mbps Ethernet |
| Protokol Jaringan | TCP/IP, IPv4/IPv6, HTTP, HTTPS, RTSP, RTP, FTP, NTP, SMTP, SNMP, DHCP, DNS, DDNS, UPnP, MQTT dan lainnya |
| Catu Daya | 12 VDC ±25% atau PoE IEEE 802.3at Class 4 |
| Konsumsi Daya | Maks. 13 W (12 VDC), Maks. 15 W (PoE) |
| Material | Metal (Front Cover, Body, dan Bracket) |
| Perlindungan | IP67 (Waterproof & Dustproof), IK10 (Vandal Resistant) |
| Versi (-Y) | Anti-corrosion Design sesuai standar NEMA 4X |
| Dimensi | 298 × 97.9 × 95.7 mm |
| Berat | ±1.52 kg |
| Suhu Operasional | -30°C hingga +60°C |
| Kelembapan Operasional | ≤95% (Non-condensing) |
| Aplikasi | Hik-Connect, HikCentral Professional, iVMS-4200 |
| Sertifikasi | CE, RoHS, IP67, IK10 |
