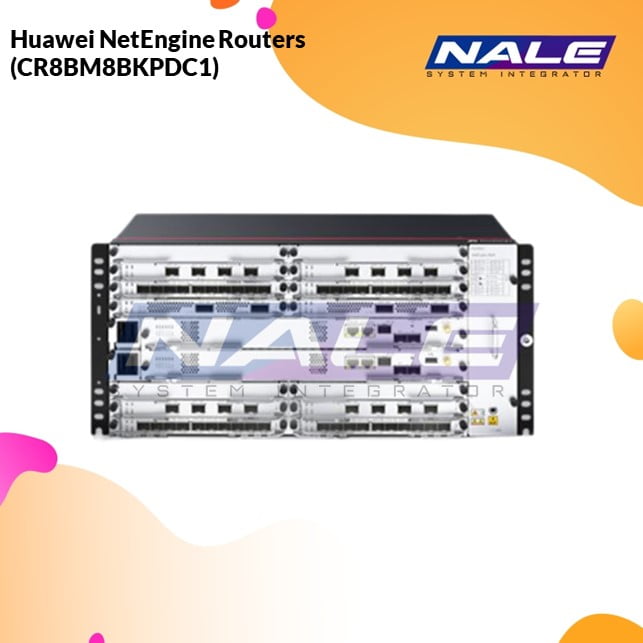

Huawei NetEngine Routers(CR8BM8BKPDC1)
HARGA HUBUNGI KAMI
Deskripsi
| Item | Details |
|---|---|
| Cabinet installation standards | ETSI 21-inch; IEC 19-inch |
| Dimensions without packaging (H x W x D) [mm(in.)] | 132.6 mm x 442 mm x 220 mm (5.22 in. x 17.4 in. x 8.66 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 360 mm x 585 mm x 390 mm (14.17 in. x 23.03 in. x 15.35 in.) |
| Chassis height [U] | 3 U |
| Weight without packaging (base configuration) [kg(lb)] | 7.8 kg (17.2 lb) |
| Weight with packaging (base configuration) [kg(lb)] | 11.3 kg (24.91 lb) |
| Weight without packaging (full configuration) [kg(lb)] | [IPU-1T2]AC:17.1kg(37.71 lb)
[IPU-480]AC:17.1kg(37.71 lb) |
| Weight with packaging (full configuration) [kg(lb)] | [IPU-1T2]AC:20.6kg(45.42 lb)
[IPU-480]AC:20.6kg(45.42 lb) |
| Typical power consumption [W] | [IPU-1T2]AC: 2*CR8DIPU1T2C1+1*fan+2*AC power+2*CR5D0E5XMF94+1*CR5D00E4XM25+2*CR5D00LAXF91+1*CR5D00EAGF95=485.27 W
[IPU-480]AC: 2*CR8DIPU480C1+1*fan+2*AC power+2*CR5D0E5XMF94+2*CR5D00LAXF91+2*CR5D00EAGF95=457.79 W |
| Typical heat dissipation [BTU/hour] | [IPU-1T2]AC: 2*CR8DIPU1T2C1+1*fan+2*AC power+2*CR5D0E5XMF94+1*CR5D00E4XM25+2*CR5D00LAXF91+1*CR5D00EAGF95=1532.91 BTU/hour
[IPU-480]AC: 2*CR8DIPU480C1+1*fan+2*AC power+2*CR5D0E5XMF94+2*CR5D00LAXF91+2*CR5D00EAGF95=1443.77 BTU/hour |
| MTBF [year] | 112.71 year |
| MTTR [hour] | 0.5 hour |
| Availability | 0.999999494 |
| Power supply mode | AC |
| Rated input voltage [V] | 200V～240V/100V~127V dual live wires, support 240V HVDC |
| Input voltage range [V] | 90 V to 290 V |
| Maximum input current [A] | 10 A |
| Rated output power [W] | 1500 W |
| Maximum input cable diameter [mm²] | Standard C13 cable |
| Front-end circuit breaker/fuse [A] | ≥10 A |
| Heat dissipation | Air cooling |
| Airflow direction | left-to-right direction |
| Noise at normal temperature (acoustic power) [dB(A)] | < 72 dB (meeting the ETSI 72 dBA standard) |
| Number of slots | 11 |
| Number of service board slots | 6 |
| Forwarding performance | IPU-1T2:453 Mpps
IPU-480:405 Mpps |
| Switching capacity | IPU-1T2:2.4T bit/s
IPU-480:960G bit/s |
| Redundant IPUs | 1:1 |
| Redundant power supply | 1+1 |
| Redundant fans | 1+1. Short-term running when a single fan becomes invalid at the ambient temperature of 40°C(104°F) (one fan module contains two fans) |
| Long-term operating temperature [°C(°F)] | -20°C~55°C(-4°F to 131°F) |
| Restriction on the operating temperature variation rate [°C(°F)] | ≤ 30°C/hour (86°F/hour) |
| Storage temperature [°C(°F)] | -40°C ~ 70°C(-40°F to 158°F) |
| Long-term operating relative humidity [RH] | 5% to 85%, non-condensing |
| Short-term operating relative humidity [RH] | 5% to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | ≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [33.8°F] for every 220 m [721.78 ft.].) |
| Storage altitude [m(ft.)] | ＜ 5000 m(＜ 16404.2 ft.) |
