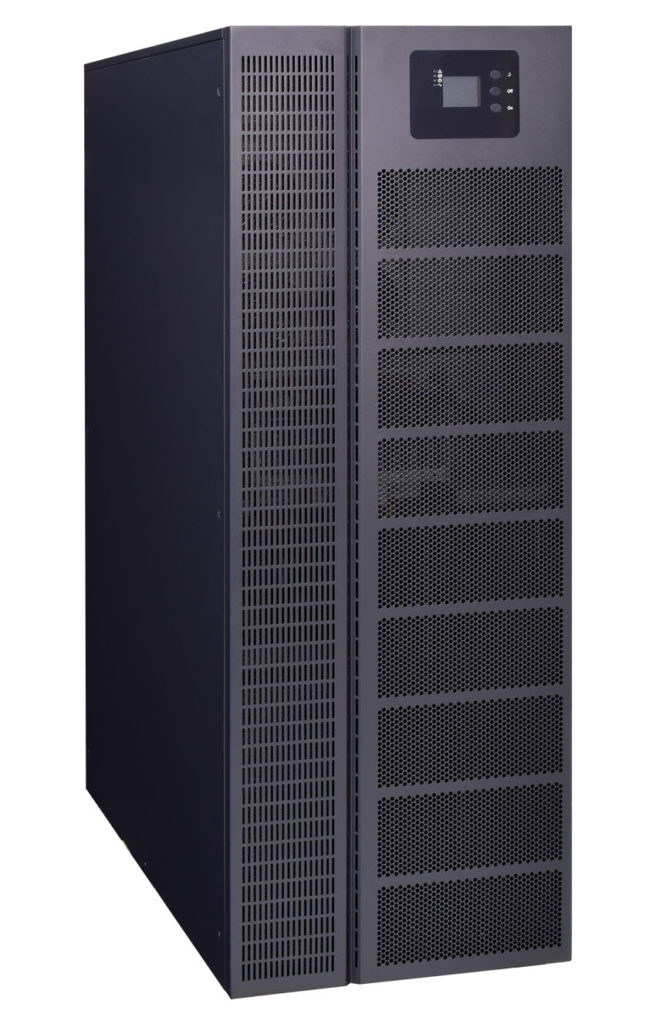

ICA UPS SE1102C31 Capacity 10.000 VA
Rp64.935.000
Deskripsi
| Model | : | UPS SE1102C31 |
| Capacity | : | 10000 VA / 9000 W |
| AC Input Voltage | : | 208 ~ 478 (3P+N+PE) |
| AC Input Frequency | : | 40 – 70 Hz |
| AC Input Protection | : | 64 A |
| DC Input Voltage | : | ±96 V |
| DC Input Internal Battery | : | 16 x 12 V, 9 Ah |
| DC Input Protection | : | MCB |
| Charger Topology | : | Switching Current |
| Charger Charge Current | : | 1.35 A |
| Inverter Output Waveform | : | SINEWAVE |
| Inverter Output Distorsion | : | ≤ 2% THD |
| Inverter Output Topology | : | Online Double Conversion |
| Inverter Output Voltage | : | 220 ± 1% (1P+N+PE) |
| Inverter Output Frequency | : | 50 ± 1 % Hz |
| Inverter Output Efficiency | : | 94.5% |
| Transfer Time When AC Input Loss | : | 0 ms |
| Static Transfer Switch | : | 0 ms |
| Back Up Time | : | 10 min Depending on Load |
| Overload | : | Load ≤110%: last 60min, ≤125%: last 10min, ≤150%: last 1min, ≥150% change to bypass |
| Communication | : | USB, RS232, RS485, Parallel port, REPO port, Coupler dry contact, Intelligent slot, SNMP card (optional), Relay card (optional) |
| Operation Temperature | : | 0 – 40°C |
| Standards | : | IEC/EN62040-1, IEC/EN60950-1, IEC62040-1, IEC/EN62040-2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8 |
| Dimension(DxWxH) | : | 645 x 250 x 715 mm |
| Weight Netto | : | 81 Kg |
| Weight Gross | : | 92 Kg |
