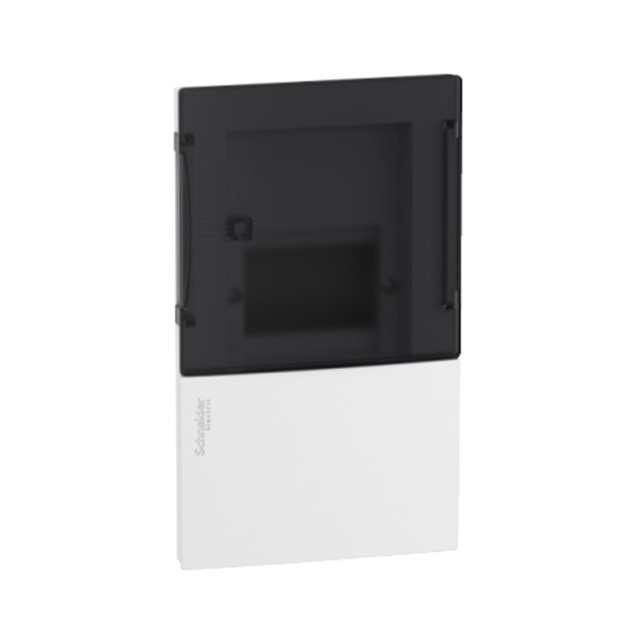

mini Pragma recessed enclosure – 1 x 4 modules – smoked door
Rp457.142
Deskripsi
| Range | Resi9 |
|---|---|
| Product name | Resi9 MP |
| Product or component type | Enclosure |
| Enclosure type | Modular enclosure |
| Nb of 18 mm modules per row | 4 |
| Nb of horizontal rows | 1 |
| Type of door | Smoked |
| Width | 126 mm wall: 150 mm outside: |
| Height | 228 mm wall: 252 mm outside: |
| Depth | 18 mm outside: 80 mm wall: 98 mm total: |
| Enclosure mounting | Flush |
|---|---|
| 9 mm pitches | 8 |
| Total number of 18 mm modules | 4 |
| [In] rated current | 50 A |
| type of rail | 35 mm asymmetrical rail |
| Mounting plate description | Without mounting plate |
| Cable entry | Pre-cutted holes |
| Terminal block function | Earth / neutral |
| Number of terminal blocks | 1 earth (screwed) with 4 outgoers 1 neutral (screwed) with 4 outgoers |
| Distribution block outgoers | 1 x 16 mm² for earth 1 x 16 mm² for neutral 1 x 6 mm² for earth 1 x 6 mm² for neutral 2 x 10 mm² for earth 2 x 10 mm² for neutral |
| Enclosure material | Back part: technoplastic Door: technoplastic Front face: technoplastic |
| Internal depth | 76 mm |
| Colour | Front face: white (RAL 9003) Door: smoked (RAL 9003) |
| Market segment | Residential Small commercial |
