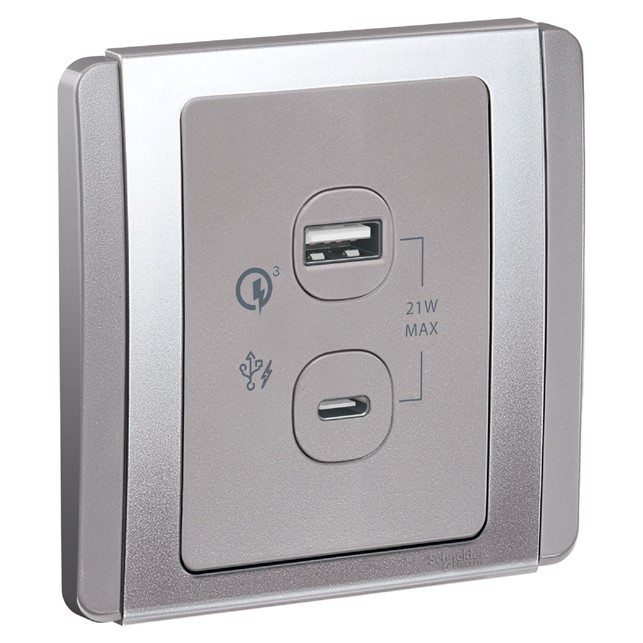

Outlet Data Schneider Neo 21W Type A + Type C, PD+QC3.0 USB Charger, Grey Silver
Rp1.298.181
Deskripsi
Specification
| Range | Neo |
|---|---|
| Device application | Charger |
| Product or component type | USB charger |
| Fixing mode | Screw |
| device mounting | Flush |
|---|---|
| Device presentation | Mechanism |
| Colour tint | Grey silver |
| Surface finish | Glossy and matt |
| Surface treatment | Untreated |
| Number of modules | 1 module 54.8 x 51.5 x 38.7 mm |
| Condition of use | Room temperature |
| Ambient air temperature for storage | -5…60 °C |
| Relative humidity | 0…90 % |
| [Ue] rated operational voltage | 100/240 V 50/60 Hz |
| Power consumption in W | 21 W |
| Integrated connection type | 2 USB port 5 V, maximum load current: 3 A USB port 9 V USB port 12 V USB port 5 V |
| Material | PC (polycarbonate): grid plate PC (polycarbonate): surround PC (polycarbonate): housing PC (polycarbonate): cover |
| Shape of screw head | Cross |
| Number of terminals | 2 |
| Clamping connection capacity | 2.5 mm² for stranded cable(s) 2.5 mm² for solid cable(s) 1.5 mm² for stranded cable(s) 1.5 mm² for solid cable(s) |
| Wire stripping length | 8 mm |
| Product compatibility | HTC XiaoMi Apple Samsung HW Major smart phone and tablet |
| standards | MS IEC 60950-1 IEC 60950-1 IEC 62368-1 IEC 61558-2-16 |
| Height | 87 mm |
| Width | 87 mm |
| Depth | 38.5 mm |
| Embedding depth | 30.3 mm |
| Product weight | 0.1127 kg |
| IP degree of protection | IP20 |
|---|---|
| Environmental characteristic | Liquid soap Alcohol Petrol |
