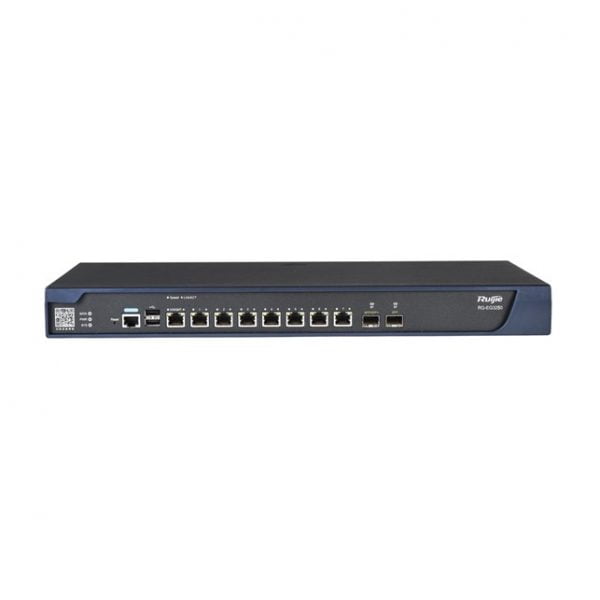

Ruijie RG-EG3230 EasyGate (EG) Next-generation
Rp12.816.060
Ruijie RG-SNC-Pro-Base-EN
Rp16.007.310
Deskripsi
Product Specifications
| Specifications | Description |
| RG-SNC Basic Component | |
| B/S Architecture | Deployed based on pure B/S architecture. No client installation is required for users. Enable system access using any standard browsers. |
| System Management | Support system restart and shutdown using web browser; Monitor server CPU, memory and network card status; Support retrieval of system operation logs via the web page. |
| License Management | Support file licensing mode. |
| System Integration | Support integration of authentication-free feature of the network control interface with customer system. |
| Support forwarding of network management alert, syslog, trap to customer system. | |
| Support integration with web services, or network management properties, alerts, performance data. | |
| Unified Wired and Wireless Management | Support unified wired and wireless management on devices such as routers, switches, firewalls and WLAN by modularization. |
| IP Surveillance | Support low-threshold bandwidth monitoring, remote power management and flexible icon management. |
| Component Scalability | Support wireless networking for the ease of future unified management and surveillance on wired and wireless devices. |
| Device Management | Support a variety of device management features. Include a good presentation and basic operating features for creating, deleting or editing device interfaces and data. |
| Support batch software upgrade for multiple devices. | |
| Support a graphical presentation of the actual physical boards, line cards and ports. Support operation directly on the page. | |
| Support auto software upgrade checking. Support batch software upgrade. | |
| Support management based on hierarchy and categorization. Enable users to set status of one device or multiple devices to be read-only, writable or hidden. For hidden devices, markings are required to be shown on topology. | |
| Support editing of device information such as organization name, purchase date, warranty validity, etc. | |
| Device Configuration Management | Support auto retrieval of configuration files on a regular basis and synchronization to management server. Support comparison of the collected data with the previous configuration files. Notify the administrator via email if any difference is found. |
| Topology Management | Support auto discovery of Layer 2 and Layer 3 network devices. Support auto topology formation. |
| Support discovery of WAN link topology. Support adding virtual nodes such as “building”, “cloud”, etc. | |
| Support viewing of a customized topology by a designated IP range or through chosen devices. In every such topology diagram, only matching devices are shown. | |
| Support auto discovery of routing topology, showing routing relation among devices in the system network layer. | |
| Support export of the current topology. | |
| Support dynamically update network topology based on device and link status data collected in real time. | |
| Support dual-link STP detection. The topology shows real-time status of both links respectively. | |
| Support topology display in full screen. | |
| Under the full screen mode, proactively send topology alerts in an animated presentation. | |
| In the event of operating status changes or alerts triggered, the relative nodes in the topology can be highlighted in real time. | |
| Support VSU topology and show the many-to-one virtualization in the topology in real time. Support direct viewing of links and status of multiple device members on the topology. | |
| Support image upload for background customization. | |
| Support image upload for node icon customization. | |
| Support traffic topology of the Weather Map mode. | |
| Real-time Alert | The product should be built-in with a variety of common alert categories. Support alert category customization based on the actual demand whenever necessary. Provide a minimum of 10 common syslog alert customization lists. |
| The product should be built-in with a variety of common alert categories. Support alert category customization based on the actual demand whenever necessary. Provide a minimum of 50 pre-defined trap alert customization lists. | |
| Support setting performance indicator threshold as general, important or very important. When the indicator exceeds the threshold, respective alert will be sent based on the threshold value. | |
| Support traffic lower limit alert. When the traffic is lower than the designated threshold, alert will be sent. | |
| Support maintenance schedule for designated devices. Within such period maintenance, no alert will be sent. | |
| Key Link Detection | Support intelligent real-time detection for key links. Upon status changes, quickly locate failure. Support multiple alert modes to notify the administrator to resume network service as soon as possible. |
| Report Management | Customize task for long-term surveillance of the network performance. Support report generation on a real-time or periodic basis. |
| Support report creation, search, editing, deletion. Support report online viewing, import/export, etc. Support periodic export and regular publishing. | |
| Support history report search. | |
| Interface Mapping Management | Support regular collection of user devices IP, MAC, port mapping table. When there are abnormalities found in the mapping table, alert administrator as an event immediately. |
| Integration of Topology and User Information | To protect customer’s early investment, support registration integration with SAM/SMP. Support searching of online user table including user name, IP address, MAC address, etc. |
| Compatibility | The product should support standard SNMP MIP management base. Support management on mainstream vendor standard MIB device. |
| Certification | The product should be compliant with the related rules under Administration of Software Products Regulation. |
| With national software copyright registration certificate. | |
| RG-SNC WLAN Component | |
| Topology Management | Support viewing of all wired and wireless devices on one single topology. |
| Surveillance Statistics | Support accessibility and alert statistics for all wireless ACs and APs. |
| Support user trend statistics for the whole network, hotspots, single AC and APs. Support online user statistics for hotspots, single AC and APs. | |
| Support logout rate statistics for the whole network, hotspots and single AP. Support setting a time range for logout rate statistics. Support viewing of Top N logout rate statistics. | |
| Support idle AP statistics for the whole network. Support viewing of Top N idle APs on a daily or monthly basis. | |
| Support uplink and downlink rate statistics/Top N viewing for all hotspots and APs. Support trend statistics for single hotspot, AP uplink and downlink rates. | |
| Support surveillance indicator customization. | |
| Device Management | Support viewing of the following information in AP: wireless radio table, device information, originating AC and hotspot, SSID, alert statistics, etc. |
| Support statistics of AP online user trend, bandwidth utilization trend, CPU/memory utilization trend and STA association failure causes. | |
| Support radio on/off setting of AP. | |
| Support manually adding, deleting and auto discovery of AC. | |
| Support connecting AC to Web network control and Telnet management. | |
| Support viewing of the following information in AC: device panel, device information, device status, management AP, SSID and alert statistics. | |
| Support AC statistics on current user trend, bandwidth utilization trend and CPU/memory performance trend. | |
| Wireless User Management | Support viewing of wireless user MAC, IP, online status, online duration, uplink/downlink rates, signal strength and device type. |
| Support viewing of user online/offline records including time of occurrence, action, user IP, WLAN ID, SSID, associated AP, originating AC, etc. | |
| Support real-time surveillance on designated devices for uplink/downlink traffic trend and signal strength. Data update frequency <=5s. | |
| Support designating several terminals as key end devices with operation quality surveillance. Issue alerts when packet retransmission rate exceeds the designated threshold. Issue alerts when abnormal behavior is found in the key end devices. Such events include offline, association/online failure, etc. |
|
| Support viewing of end device statistical graphs of designated user group (hotspot). Minimum requirement: present the graphs in terms of band (2.4G, 5G), connection protocols (802.11a/ 802.11b/ 802.11g/ 802.11n/802.11ac/802.11ax). | |
| Spectrum Analysis | Support >=8 spectrum analysis: current interference table, spectrum diagram, real-time FFT diagram, FFT occupation ratio diagram, spectrum density diagram, channel occupation ratio diagram, channel occupation ratio trend diagram and power trend diagram. |
| Device Configuration Management | Support configuration of AC system attribute, WLAN, security, interface, trap/syslog servers, etc. |
| Support synchronization of AC blacklist. | |
| Wireless Tracking | Support tracking of end device, authentication user, AP, AC, rogue AP based on IP, MAC, login user name, real user name, device name, SSID, AP location or hotspot name. |
| Rogue AP Management | Support rogue AP table including rogue AP BSSID, SSID, channel, signal strength, vendor, finder AP and its location, single AP mode, countermeasure status, etc. |
| Support AP operating mode and rogue AP countermeasure status statistics. | |
| Support graphical configuration of AP operating mode (graphical guidelines for AP operating mode configuration). | |
| Support setting of blacklist and whitelist. | |
| Hotspot Heat Map Management | Support import, export and manual editing of hotspot information. |
| Support existing APs management based on hotspots. Support statistics of SSID associated with hotspot, logout rate, associated user count and uplink/downlink rates. | |
| Support floor plan import in .jpg, .png or .gif format. Support setting AP location on the floor plan and viewing of AP coordinates. | |
| Support setting different kinds of obstacles. Support setting AP height and deployment scenario. | |
| Support viewing of AP information, AP user information on heat map and adjusting AP channel. | |
| Support heat map generation based on signal strength, rate, channel conflict (2.4G/5GHz). | |
| Alert Management | The product should be built-in with a variety of wireless alert categories. Support alert category customization based on the actual demand whenever necessary. Provide a minimum of 10 common syslog alert customization lists. |
| The product should be built-in with a variety of wireless alert categories. Support alert category customization based on the actual demand whenever necessary. Provide a minimum of 15 pre-defined trap alert customization lists. | |
| Hierarchical Management | Support AC, hotspot and SSID management based on hierarchy and categorization. |
| Report Management | Customize task for long-term surveillance of the network performance. Support report generation on a real-time or periodic basis. |
| Support report creation, search, editing and deletion. Support report online viewing, import/export, etc. Support periodic export and regular publishing. | |
| Support history report search. | |
| Support report data filtering based on AC, hotspot or SSID. | |
| Integration of Topology and User Information | To protect customer’s early investment, support registration integration with SAM/SMP. Support searching of online user table including user name, IP address, MAC address, etc. |
| Compatibility | The product should support standard SNMP MIP management base. Support management on mainstream vendor standard MIB device. |
| Certification | The product should be compliant with the related rules under Administration of Software Products Regulation. |
| With national software copyright registration certificate. | |
System Requirements
| Hardware Platform Requirement | |
| Processor | Quad-core, each core at 2GHz or above (recommended) |
| Memory | 4G or above |
| Storage | 160G or above |
| Network Interface Adapter | 100Mbps or above |
| Operating System and Database | |
| Operation System | Linux Centos 6.6 64bit |
| Database | MariaDB-5.5.54 64bit |
