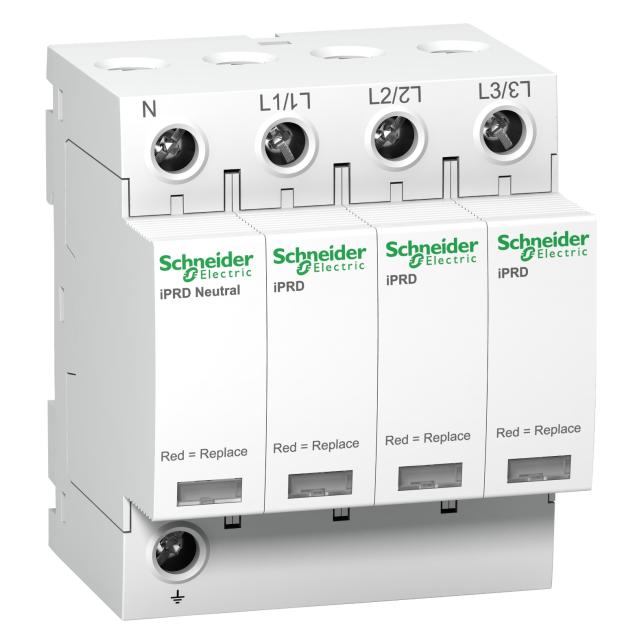

Scheinder iPRD40r modular surge arrester – 3P + N – 350V – with remote transfert (A9L40601)

Rp2.735.928

Add to compare
Add to wishlist
SKU: A9L40601 Kategori: , , , Tag:
Deskripsi

Spesifikasi

Main
range of product Acti9
Product name Acti9 iPRD
Product or component type Surge arrester with pluggable cartridge
device short name IPRD40r
Device application Distribution
Standards EN 61643-11:2012
IEC 61643-11:2011
Product certifications CE
Quality labels NF
KEMA-KEUR
Poles description 3P + N
Remote signalling With
Signal contacts composition 1 SD (1 C/O)
Surge arrester type Electrical distribution network
Earthing system TT
TN-S
Complementary
surge arrester class type Type 2
Surge arrester technology MOV + GDT
[Ue] rated operational voltage 230/400 V AC (+/- 10 %) at 50/60 Hz
[In] nominal discharge current Common mode: 15 kA (L/PE)
Common mode: 15 kA (N/PE)
Differential mode: 15 kA (L/N)
[Imax] maximum discharge current Common mode: 40 kA L/PE
Common mode: 40 kA N/PE
Differential mode: 40 kA L/N
[Uc] maximum continuous operating voltage Common mode: 260 V N/PE
Common mode: 350 V L/PE
Differential mode: 350 V L/N
Maximum [Up] voltage protection level Common mode <1.4 kV type 2 N/PE
Differential mode <1.4 kV type 2 L/N
[Ut] temporary overvoltage 337 V L/N 5 s withstand
1200 V N/PE 200 ms safe failure mode
442 V L/PE 5 s withstand
1453 V L/PE 200 ms safe failure mode
Disconnector device type Associated circuit breaker iC60H 50 A curve C – Icu 15 kA
Associated circuit breaker IC60N 40 A curve C – Icu 10 kA
Associated circuit breaker NG125H 63 A curve C – Icu 36 kA
Associated circuit breaker NG125L 63 A curve C – Icu 50 kA
Associated circuit breaker NG125N 40 A curve C – Icu 25 kA
Associated fuse gG 63 A – Icu 15 kA
Associated fuse gG 80 A – Icu 50 kA
Signalling circuit voltage 0.25 A/250 V AC 50/60 Hz
Mounting mode Clip-on (DIN rail)
9 mm pitches 8
Height 85 mm
Width 72 mm
Depth 69 mm
Product weight 0.421 kg
Colour White (RAL 9003)
[Ipe] Ground residual current 0.6 mA
0.003 mA
Connections – terminals Tunnel type terminal (downside) 2.5…35 mm²
Tunnel type terminal (upside) 2.5…35 mm²
Tightening torque 2.5 N.m
Environment
IK degree of protection IK03 conforming to IEC 62262
Relative humidity 5…95 %
Operating altitude 2000 m
Ambient air temperature for operation -25…60 °C
Ambient air temperature for storage -40…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8 cm
Package 1 Width 8.3 cm
Package 1 Length 9.3 cm
Package 1 Weight 452 g
Unit Type of Package 2 BB1
Number of Units in Package 2 3
Package 2 Height 9 cm
Package 2 Width 10 cm
Package 2 Length 28 cm
Package 2 Weight 1.424 kg
Unit Type of Package 3 S03
Number of Units in Package 3 27
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 13.363 kg
Contractual warranty
Warranty 12 months

Datasheet – Acti 9 iPF_ iPRD_A9L40601.pdf
