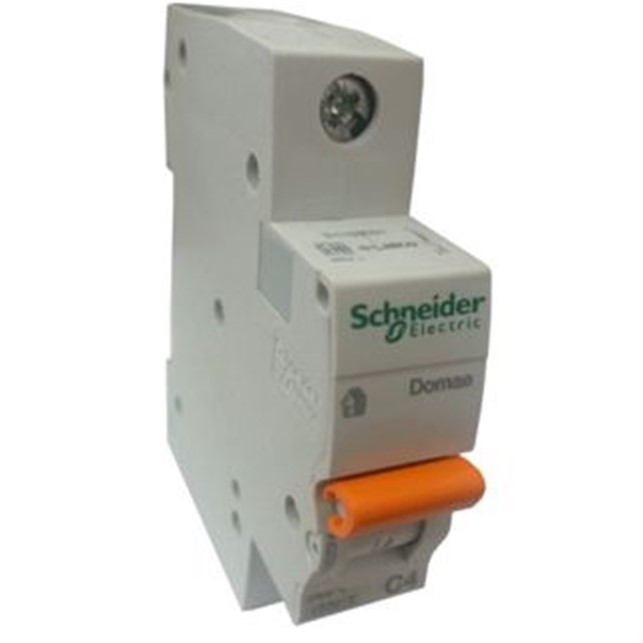

Schneider Miniature circuit breaker, Domae, 1P, 40 A, C Curve, 6000 A

Rp103.896

Add to compare
Add to wishlist
SKU: DOMF01140 Kategori: , , , , Tag: ,
Deskripsi

Spesifikasi DOMF01140

Main
Range Domae
Product or component type Miniature circuit-breaker
device short name Domae MCB
Device application Protection
Poles description 1P
Number of protected poles 1
[In] rated current 40 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Breaking capacity Icn 6000 A
Quality labels CE
Complementary
Network frequency 50/60 Hz
[Ue] rated operational voltage 230 V AC 50/60 Hz
Magnetic tripping limit 5…10 x In
Control type Toggle
Mounting mode Clip-on
Mounting support DIN rail
Comb busbar and distribution block compatibility YES
9 mm pitches 2
Height 81 mm
Width 18 mm
Depth 71.5 mm
Product weight 0.095 kg
Colour White
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Connections – terminals Tunnel type terminals (top or bottom) – 1…35 mm² – rigid
Tunnel type terminals (top or bottom) – 1…25 mm² – flexible
Wire stripping length 14 mm for top or bottom connection
Tightening torque 3.5 N.m top or bottom
Earth-leakage protection Without
Environment
standards IEC 60898-1
Product certifications SNI
IP degree of protection IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
Overvoltage category III
Tropicalisation 2 conforming to IEC 60068-1
Relative humidity 95 % at 55 °C
Ambient air temperature for operation -5…60 °C
Ambient air temperature for storage -40…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 1.8 cm
Package 1 Length 8.5 cm
Package 1 Weight 118 g
Unit Type of Package 2 BB1
Number of Units in Package 2 12
Package 2 Height 9 cm
Package 2 Width 9 cm
Package 2 Length 22 cm
Package 2 Weight 1.416 kg
Unit Type of Package 3 S03
Number of Units in Package 3 144
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 17.433 kg
