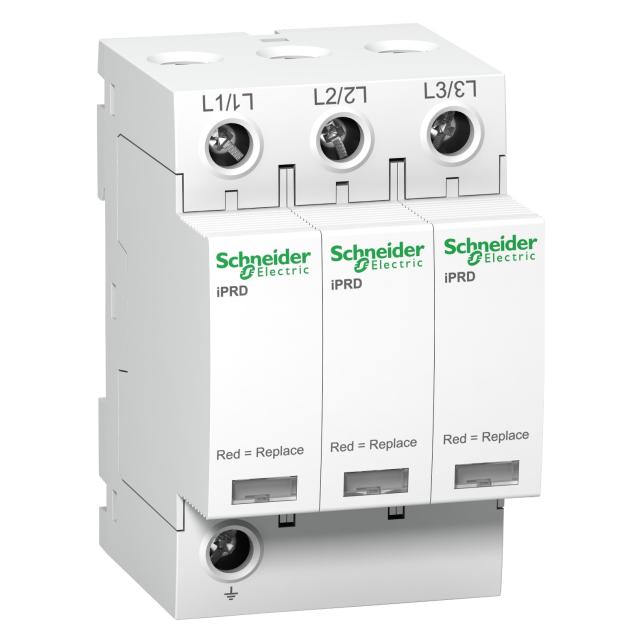

Schneinder iPRD65r modular surge arrester – 3P + N – 350V – with remote transfert (A9L65301)
Rp2.867.530
Deskripsi
Spesifikasi
| range of product | Acti9 |
|---|---|
| Product name | Acti9 iPRD |
| Product or component type | Surge arrester with pluggable cartridge |
| device short name | IPRD65r |
| Device application | Distribution |
| Standards | EN 61643-11:2012 IEC 61643-11:2011 |
| Product certifications | CE |
| Quality labels | KEMA-KEUR NF |
| Poles description | 3P |
| Remote signalling | With |
| Signal contacts composition | 1 SD (1 C/O) |
| Surge arrester type | Electrical distribution network |
| Earthing system | TN-C IT 230 |
| surge arrester class type | Type 2 |
|---|---|
| Surge arrester technology | MOV + GDT |
| [Ue] rated operational voltage | 230/400 V AC (+/- 10 %) at 50/60 Hz |
| [In] nominal discharge current | Common mode: 20 kA (L/PE) Common mode: 20 kA (N/PE) Differential mode: 20 kA (L/N) |
| [Imax] maximum discharge current | Common mode: 65 kA L/PE Common mode: 65 kA N/PE Differential mode: 65 kA L/N |
| [Uc] maximum continuous operating voltage | Common mode: 260 V N/PE Common mode: 350 V L/PE Differential mode: 350 V L/N |
| Maximum [Up] voltage protection level | Common mode <1.5 kV type 2 N/PE Differential mode <1.5 kV type 2 L/N |
| [Ut] temporary overvoltage | 337 V L/N 5 s withstand 1200 V N/PE 200 ms safe failure mode |
| Disconnector device type | Associated circuit breaker IC60N 50 A curve C – Icu 10 kA Associated circuit breaker iC60H 50 A curve C – Icu 15 kA Associated circuit breaker NG125N 50 A curve C – Icu 25 kA Associated circuit breaker NG125H 100 A curve C – Icu 36 kA Associated circuit breaker NG125L 100 A curve C – Icu 50 kA Associated fuse gG 80 A – Icu 50 kA |
| Signalling circuit voltage | 0.25 A/250 V AC 50/60 Hz |
| Mounting mode | Clip-on (DIN rail) |
| 9 mm pitches | 6 |
| Height | 85 mm |
| Width | 54 mm |
| Depth | 69 mm |
| Product weight | 0.393 kg |
| Colour | White (RAL 9003) |
| [Ipe] Ground residual current | 0.6 mA 0.003 mA |
| Connections – terminals | Tunnel type terminal (downside) 2.5…35 mm² Tunnel type terminal (upside) 2.5…35 mm² |
| Tightening torque | 2.5 N.m |
| IK degree of protection | IK03 conforming to IEC 62262 |
|---|---|
| Relative humidity | 5…95 % |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.7 cm |
| Package 1 Width | 6.2 cm |
| Package 1 Length | 9.2 cm |
| Package 1 Weight | 427.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 8.5 cm |
| Package 2 Width | 10 cm |
| Package 2 Length | 28 cm |
| Package 2 Weight | 1.77 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 36 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 16.463 kg |
| Warranty | 12 months |
|---|
