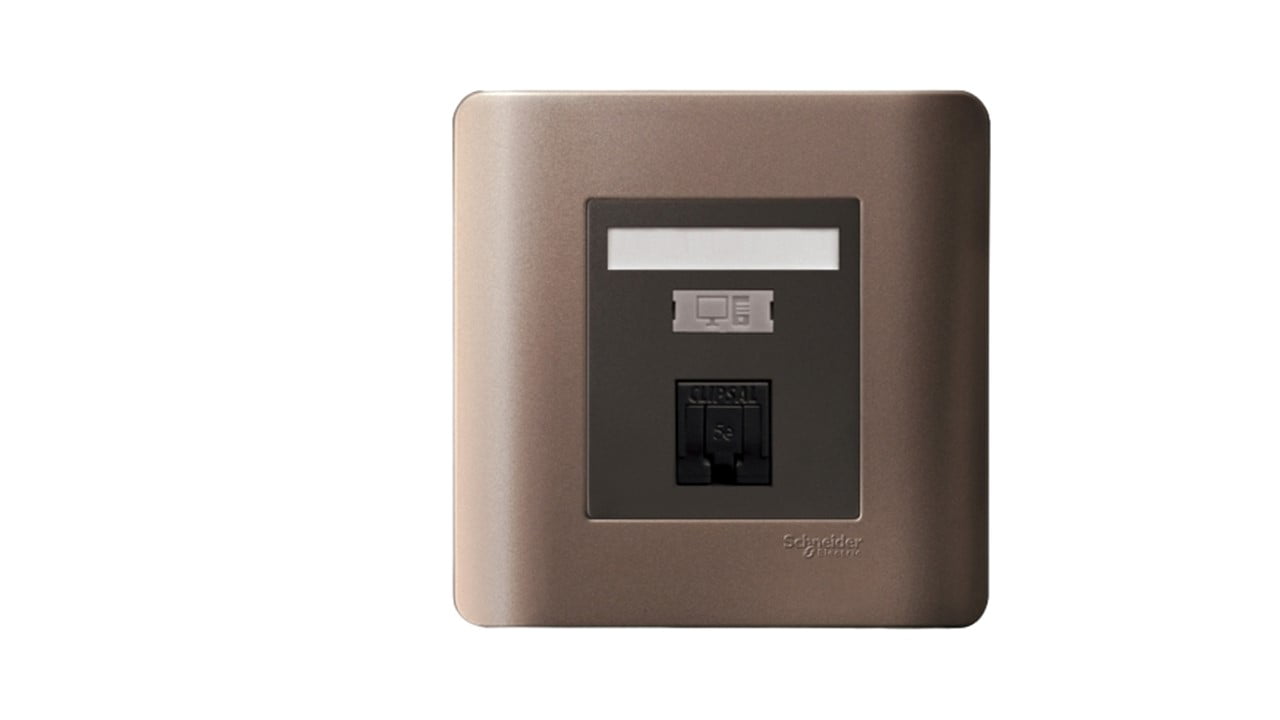

STOP KONTAK DATA SCHNEIDER ZENCELO E8431RJ_5_SZ 1G CAT5E SILVER BRONZE
Rp411.417
Deskripsi
Spesifikasi
| range | ZENcelo |
|---|---|
| product or component type | Data socket |
| device application | Communication |
| colour tint | Silver bronze |
| rated current | 1.5 A |
|---|---|
| communication network category | Data: 5e |
| insulation resistance | >= 200 MOhm |
| contact resistance | 1 µOhm |
| number of gangs | 1 gang |
| minimum return loss | 23 dB |
| AWG gauge | AWG 26…AWG 22 (4 twisted pair cables) |
| contacts material | Housing: PC Contact: phosphor bronze with gold plating IDC contact: phosphor bronze with nickel plating |
| material | Polycarbonate: plastic part |
| device mounting | Surface Flush |
| width | 87 mm |
| height | 87 mm |
| depth | 36 mm |
| dielectric strength | 1000 V for 60 s at 60 Hz |
|---|---|
| ambient air temperature for operation | 1…35 °C |
| relative humidity | 0…95 % |
| environmental characteristic | No UV resistant |
| standards | ASTMD4566-98 TIA/EIA-568-B.2-1 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 129.36 g |
| Package 1 Height | 3 cm |
| Package 1 width | 8.72 cm |
| Package 1 Length | 8.72 cm |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 4800 |
| Package 2 Weight | 775928.0 g |
| Package 2 Height | 120 cm |
| Package 2 width | 120 cm |
| Package 2 Length | 80 cm |
| Unit Type of Package 3 | BB1 |
| Number of Units in Package 3 | 8 |
| Package 3 Weight | 1.234 kg |
| Package 3 Height | 9.5 cm |
| Package 3 width | 15 cm |
| Package 3 Length | 19 cm |
