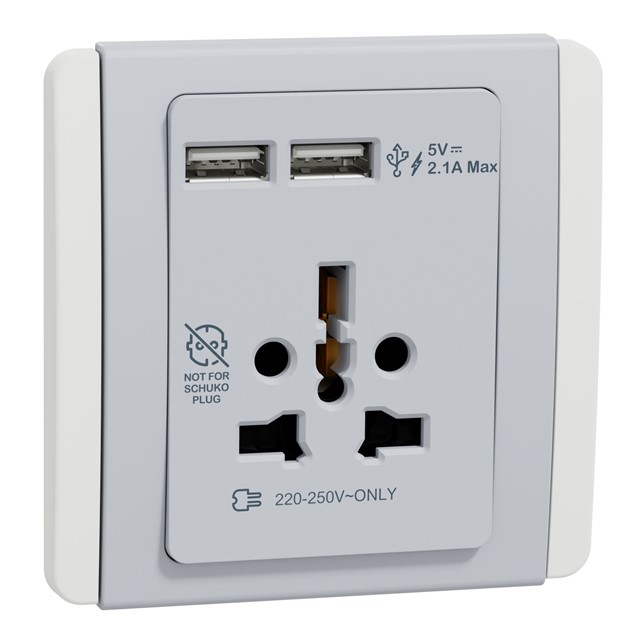

Stop Kontak Neo 16A International Socket with 2.1A USB, Grey Silver
Rp546.363
Deskripsi
Spesifikasi
| Range of product | NEO |
|---|---|
| Product or component type | USB charger + socket-outlet |
| Range | Neo |
|---|---|
| Device mounting | Flush 30.70 mm |
| Device presentation | Mechanism |
| Socket additional information | Shuttered |
| Number of power socket outlets | 1 x 2P + E with shutter, UK BS 1363 plug 1 x 2P + E with shutter, China 1 x 2P with shutters, Schuko 1 x 2P with shutters, universal |
| Rated current | Power supply: 13 A 250 V, AC, 50/60 Hz 10 A 16 A |
| Colour tint | Grey |
| Surface finish | Glossy |
| Surface treatment | Untreated |
| Power consumption in W | 0.075 W |
| Input power | 13.5 W |
| Integrated connection type | 2 USB type A 5 V DC, maximum load current: 2.1 A |
| Material | Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base cover Nylon + GF: shutter Brass: contact plate Steel coated with zinc chromate: spring Nickel steel: terminal screw |
| Protection type | USB port: over temperature protection with PWM IC circuit (battery charging) Over voltage protection against surges Overcurrent protection |
| Shape of screw head | Panhead |
| Screwdriver shape | Phillips combined |
| Electrical connection | 3 screw terminal 2 x AWG 6 |
| Clamping connection capacity | 2 x 4 mm² for solid or flexible cable(s) |
| Wire stripping length | 10…12 mm |
| Mounting support | Mounting box |
| Fixing mode | By screws M4 x 25 mm |
| Fixing center | 60.3 mm |
| Height | 86 mm |
| Width | 86 mm |
| Depth | 38 mm |
| Embedding depth | 30.70 mm |
| Product weight | 0.13 kg |
| IP degree of protection | IP20 |
| Type of packing | Bag |
| Operating altitude | <= 2000 m |
|---|---|
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -5…60 °C |
| Relative humidity | 0…95 % |
| standards | IEC 60950-1 IEC 62368-1 IEC 61558-2-16 |
