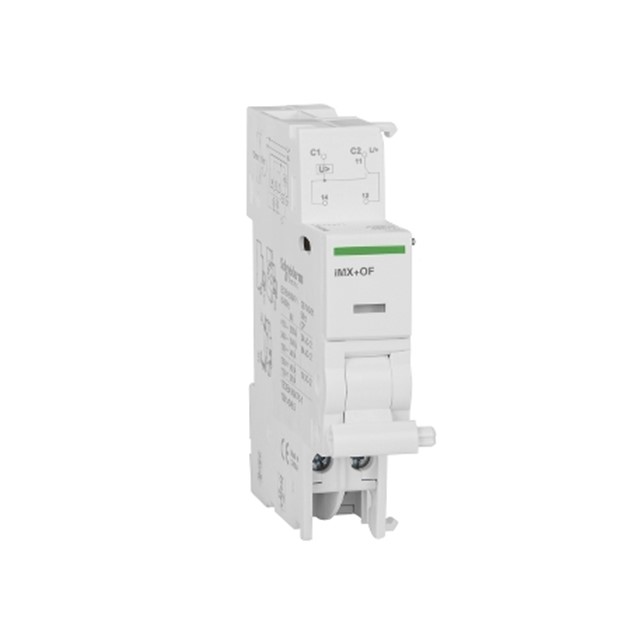

voltage release – iMX+OF – tripping unit – 220..415 VAC
Rp807.359
Deskripsi
| range of product | Acti9 |
|---|---|
| Product or component type | Shunt trip release with OC contact |
| device short name | IMX+OF |
| Signal contacts composition | 1 C/O |
| [Ie] rated operational current | AC-12: 3 A at 415 V AC 50 Hz AC-12: 6 A at 100 V AC 50 Hz AC-12: 6 A at 230 V AC 50 Hz DC-12: 1 A at 110 V DC DC-12: 1 A at 130 V DC |
| [Uc] control circuit voltage | 100…415 V AC 50/60 Hz 110…130 V DC |
| 9 mm pitches | 2 |
| Range compatibility | Acti 9 (Acti9 iC65) Acti 9 (Acti9 ARA) Acti 9 (Acti9 iDPN Vigi) Acti 9 (Acti9 iID) Acti 9 (Acti9 iSW-NA) Acti 9 (Acti9 RCA) Acti 9 (Acti9 iDPN (China version)) Acti 9 (Acti9 iC60) double terminals miniature circuit breaker Acti 9 (Acti9 iC40) |
|---|---|
| Local signalling | Action indicator |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top: YES |
| Width | 18 mm |
| Colour | White |
| Connections – terminals | Clamp terminal – 2 cable(s) 2.5 mm² – flexible with cable end Clamp terminal – 1 cable(s) 6 mm² – rigid Clamp terminal – 2 cable(s) 2.5 mm² – rigid Clamp terminal – 1 cable(s) 4 mm² – flexible |
| Tightening torque | 1 N.m |
| Compatibility code | IMX+OF |
| standards | EN/IEC 60947-5-1 |
|---|---|
| Tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -25…50 °C |
| Ambient air temperature for storage | -40…85 °C |
