ADVANTECH ADAM Intelligent Remote Terminal Unit (RTU) with WISE-PaaS/EdgeLink, 8DI/4DO/8AI, 4-Slot IO Expansion
- Built-in WISE-PaaS/EdgeLink 3000 tags for IoT application
- Built-in industrial protocols support more than 200+ types of industrial devices
- Onboard 8AI / 8DI / 4DO and 4-Slot I/O Expansion
- Multiple wireless options for Wi-Fi/ 3G/ 4G/ GPRS
- Supports Modbus, OPC UA, DNP3, ODBC and IEC-60870-104 service
- Supports MQTT and direct communication to cloud, e.g. Azure, AWS, WISE-PaaS, T-System
- Wide Operation Temperature -40 ~ 70°C
- Remote update & system monitoring via web browser

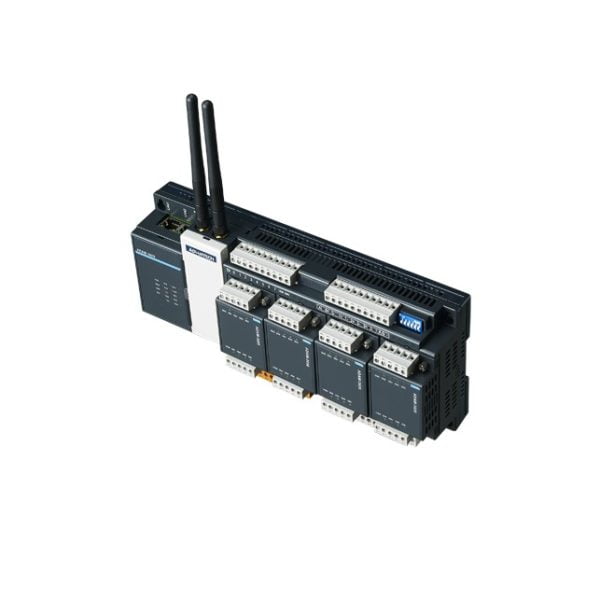

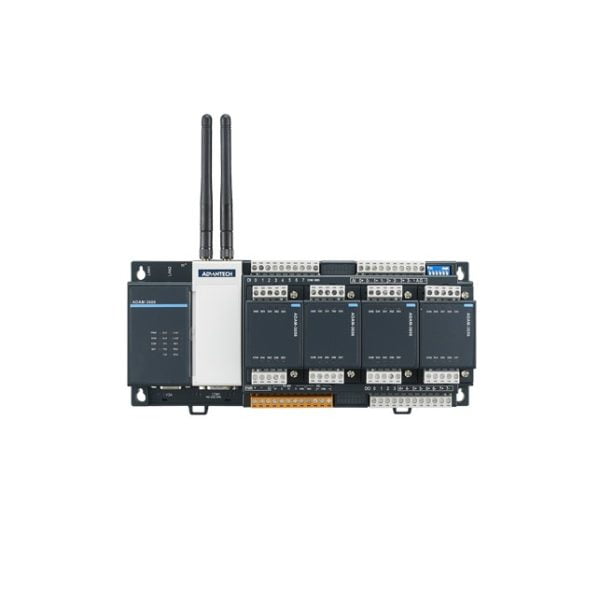

ADVANTECH ADAM-3600 8AI / 8DI / 4DO / 4-Slot Expansion Wireless Intelligent RTU
ADVANTECH ADAM-3651-AE I/O Extension, 8-ch DI Module
ADVANTECH ADAM-3656-AE I/O Extension, 8-ch DO Module
ADVANTECH ADAM-5013-A2E CIRCUIT MODULE, 3-Ch RTD Input Module
ADVANTECH ADAM-5017-A4E CIRCUIT MODULE, 8-Ch AI Module
ADVANTECH ADAM-5017H-BE 8-channel High-speed Analog Input Module
ADVANTECH ADAM-5017P-AE 8-ch Analog Input Module with Independent Input Range
- High Common Mode: 200 VDC
- Over Voltage Protection: ±60 VDC
- Built-in TVS/ESD Protection
- Isolation Voltage: 3,000 VDC
- Channels: 8 differential and independent configuration channels
- Accuracy: Voltage mode : ±0.1% or better, Current mode : ±0.2% or better
- CMR @ 50/60 Hz: 92 dB min.
- Input Impedance: Voltage: 20 M, Current: 120Ω (Build-in 120Ω. register for Current Input) for Curren
- lnput Type: mV, V (supports uni-polar and bipolar), mA and Sampling Rate: 10 samples/sec
ADVANTECH ADAM-5017UH-A1E 8-ch Ultra High Speed Analog Input Module
ADVANTECH ADAM-5018-A2E 7-Ch Thermocouple Input Module
ADVANTECH ADAM-5018P-AE 7-ch Thermocouple Input Module with Independent Input Range
- High Common Mode: 2000 VDC
- Fault and Overvoltage Protection: Withstands over voltage up to ±35 V
- Isolation Voltage: 3,000 VDC
- Filter function: Yes
- Built-in TVS/ESD Protection
- Input Impedance: 20 MΩ. (Build-in 120 Ω Register for Current Input) with Channels: 7 differential with Independent Input Range
- CMR @ 50/60 Hz: 92 dB min
- Sampling Rate: 10 samples/sec. (total)
- Accuracy Bandwidth: ±0.1% or better, 13.1 Hz @ 50 Hz, 15.72 Hz @ 60 Hz
